Ser Mgt Ports - Oracle SPARC T7-4 Installation Manual

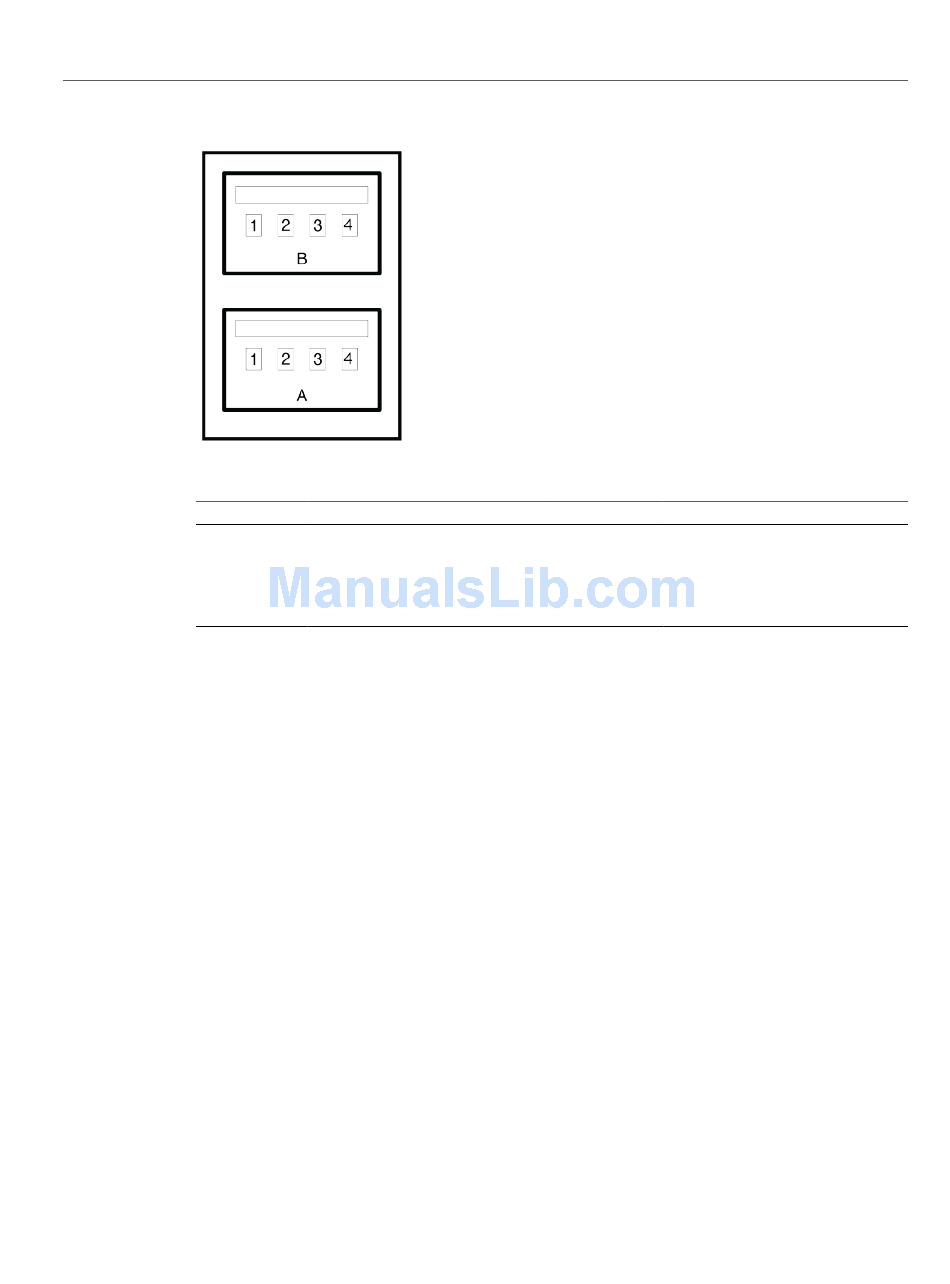

Identifying Ports
Pin
A1
A2
A3
A4
Related Information
"Server Overview" on page 12
■
"Front Panel Components" on page 14
■
"Rear Panel Components" on page 15
■
"Cabling Requirements" on page 51
■
"Connecting Data and Management Cables" on page 58
■

SER MGT Ports

The SER MGT RJ-45 port, located on the rear panel, provides an TIA/EIA-232 serial Oracle/
Cisco standard connection to the SP. This port is the default connection to the Oracle ILOM SP.
For DTE to DTE communications, you can use the supplied RJ-45 to DB-9 crossover adapter
with a standard RJ-45 cable to achieve the required null modem configuration. See
Components" on page
An additional SER MGT port is located on the main module and is accessible from the front
panel. See
54 SPARC T7-4 Server Installation Guide • March 2017
Signal Description
+5 V (fused)
USB0/1-
USB0/1+
Ground
15.
"Front Panel Components" on page
Pin Signal Description
B1 +5 V (fused)
B2 USB2/3-
B3 USB2/3+
B4 Ground
14.
"Rear Panel
