6. APPLICATIONS

AC
Power
Note: When a power supply is connected to either the transmitter or receiver, the HDBaseT
link sends power to the other unit. Only one unit requires a power supply to be connected.

6.1. HDBaseT Link (RJ45) Connection

This device is specified to operate with category cables for communication between the
transmitter and receiver. The transmission path may include a maximum of two keystones and
two patch cables, as long as the total length does not exceed 200' for Cat 5e/6 and 230' for Cat
6a/7.
Note: The HDBaseT Link RJ45 connection includes a 12V signal. Do not connect anything to
this port other than an HDBaseT transmitter or receiver.
HDMI Source
+24V DC 1A
INPUT
PWR HDMI IN Control In
Back
+24V DC 1A
INPUT
PWR HDMI OUT
HDTV

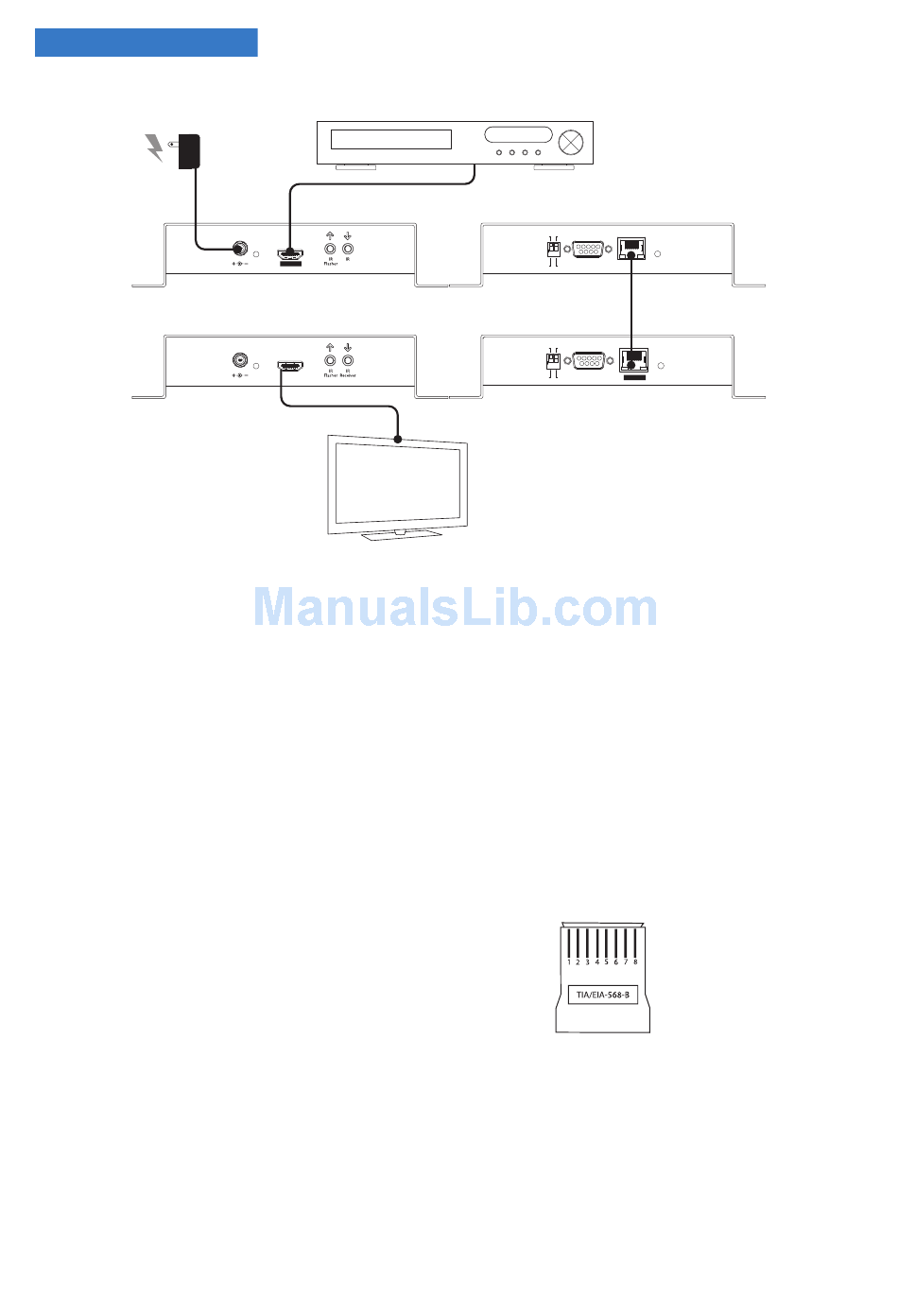

FIGURE 3 : Application Diagram
TIA/EIA Standard 568-B (Gold Pins Facing Up)
Pin 1 White/Orange
Pin 2 Orange
Pin 3 White/Green
Pin 4 Blue
FIGURE 4: RJ45 Connections
PLAY
B-540-EXT-230-RS Transmitter
DCE
DTE ON ON
1 1 2 2
ON ON
DTE DCE SERVICE SERVICE
DCE ON
DTE ON
1 1 2 2
ON ON
DCE SERVICE
DTE SERVICE
B-540-EXT-230-RS Receiver
Pin 5 White/Blue
Pin 6 Green
Pin 7 White/Brown
Pin 8 Brown
8
5 5 3 2 3 2
RS-232 RS-232 HDBaseT HDBaseT LINK LINK
Front
5 3 2
5 3 2
RS-232 HDBaseT LINK
RS-232 HDBaseT LINK
