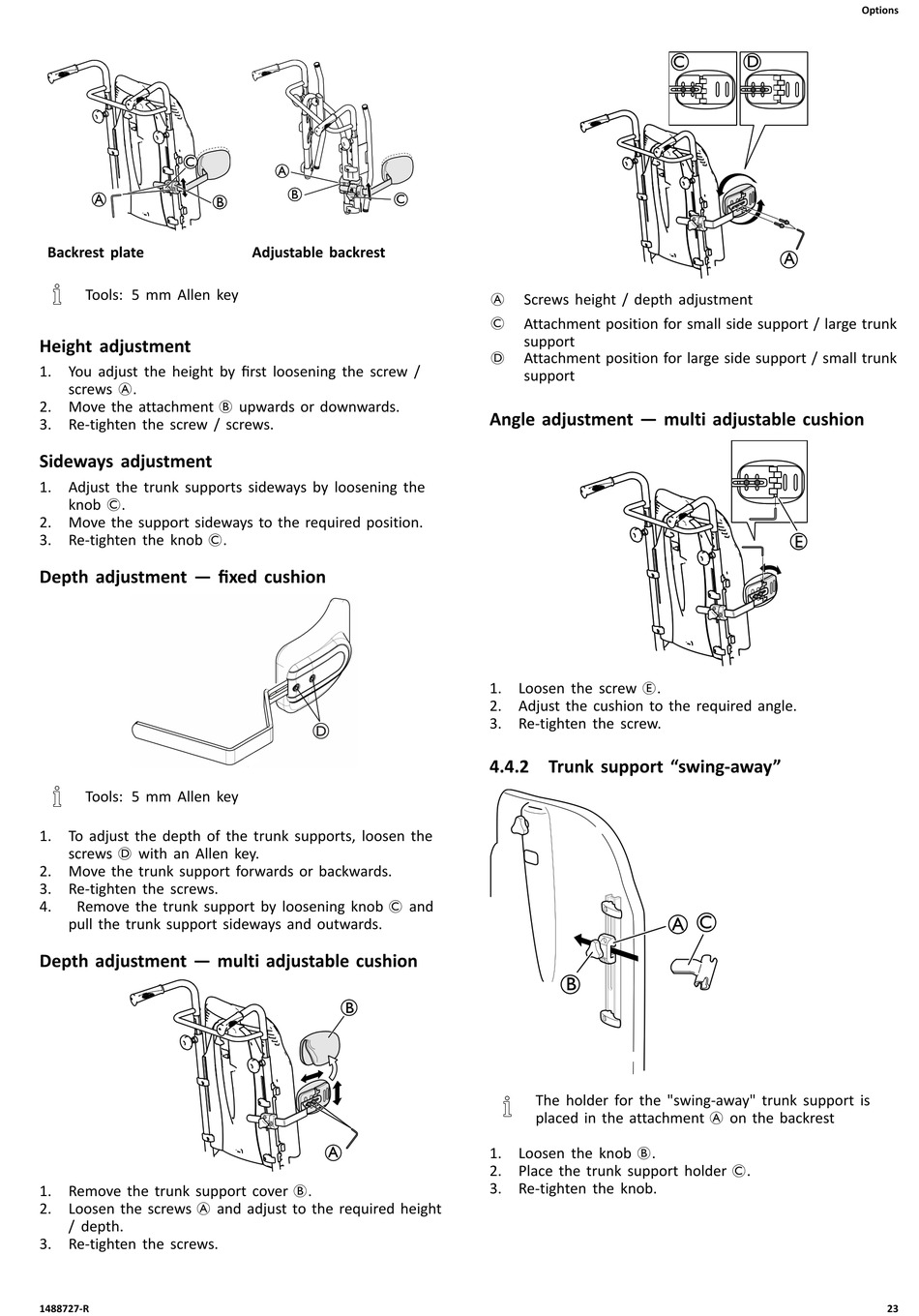

Trunk Support "Swing-Away - Invacare rea Azalea Assist User Manual

C
A
Backrest plate
Tools: 5 mm Allen key
Height adjustment
1. You adjust the height by first loosening the screw /
screws A.
2. Move the attachment B upwards or downwards.
3. Re-tighten the screw / screws.
Sideways adjustment
1. Adjust the trunk supports sideways by loosening the
knob C.
2. Move the support sideways to the required position.
3. Re-tighten the knob C.
Depth adjustment — fixed cushion
Tools: 5 mm Allen key
1. To adjust the depth of the trunk supports, loosen the
screws D with an Allen key.
2. Move the trunk support forwards or backwards.
3. Re-tighten the screws.
4. Remove the trunk support by loosening knob C and
pull the trunk support sideways and outwards.
Depth adjustment — multi adjustable cushion
1. Remove the trunk support cover B.
2. Loosen the screws A and adjust to the required height
/ depth.
3. Re-tighten the screws.
1488727-R
A
B
B
Adjustable backrest
B
A
C
A Screws height / depth adjustment
C Attachment position for small side support / large trunk
support
D Attachment position for large side support / small trunk
support
Angle adjustment — multi adjustable cushion
1. Loosen the screw E.
2. Adjust the cushion to the required angle.
3. Re-tighten the screw.

4.4.2 Trunk support "swing-away"

B
The holder for the "swing-away" trunk support is
placed in the attachment A on the backrest
1. Loosen the knob B.
2. Place the trunk support holder C.
3. Re-tighten the knob.
C D
A
A C
Options
23
