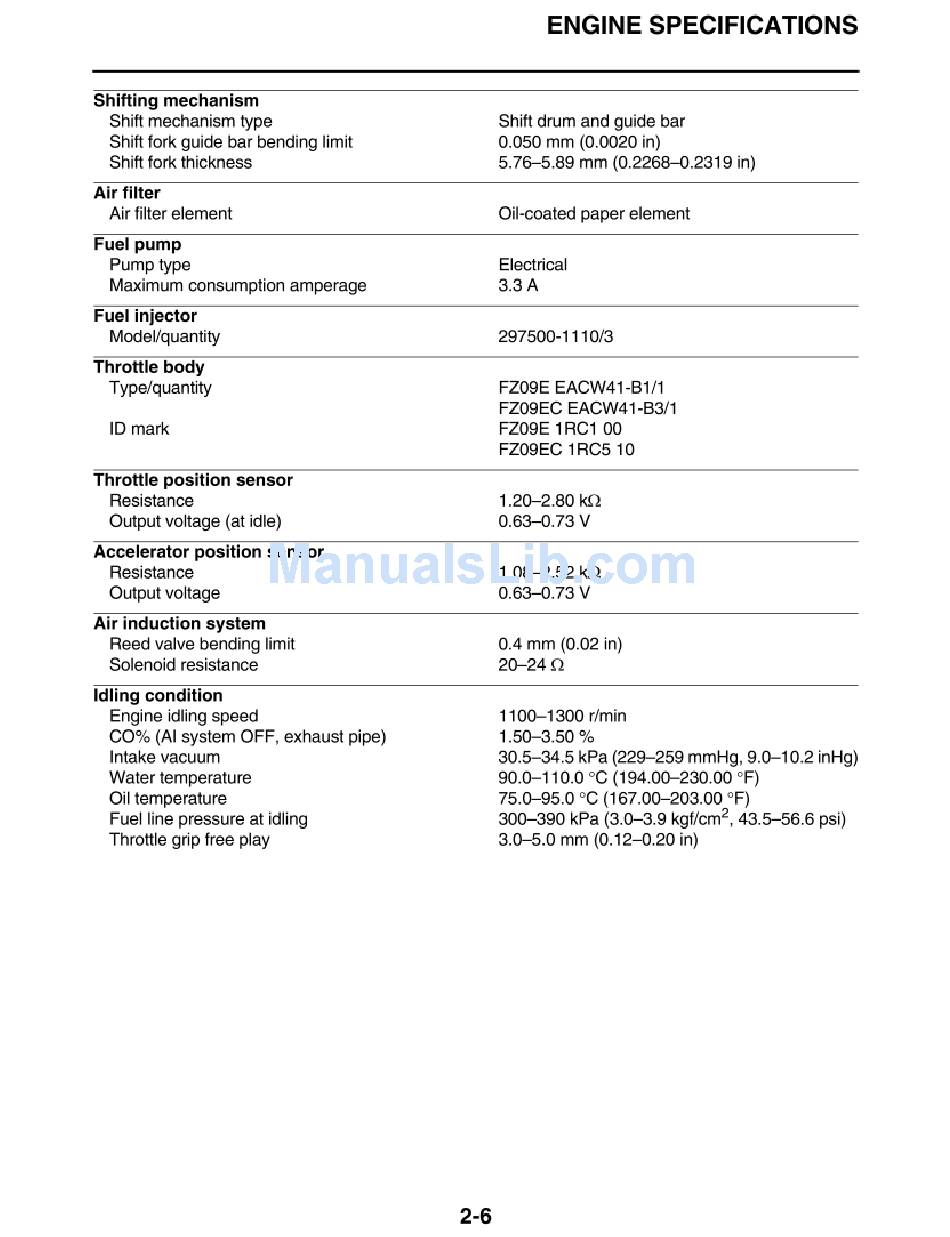

Yamaha FZ09E Service Manual page 41

Shifting mechanism
Shift mechanism type
Shift fork guide bar bending limit
Shift fork thickness
Air filter
Air filter element
Fuel pump
Pump type
Maximum consumption amperage
Fuel injector
Model/quantity
Throttle body
Type/quantity
ID mark
Throttle position sensor
Resistance
Output voltage (at idle)
Accelerator position sensor
Resistance
Output voltage
Air induction system
Reed valve bending limit
Solenoid resistance
Idling condition
Engine idling speed
COo/o (Al system OFF, exhaust pipe)
Intake vacuum
Water temperature
Oil temperature
Fuel line pressure at idling
Throttle grip free play
2-6
ENGINE SPECIFICATIONS
Shift drum and guide bar
0.050 mm (0.0020 in)
5.76-5.89 mm (0.2. 2 68-0.2319 in)
Oil-coated paper element
Electrical
3.3A
297500-1 110/3
FZ09E EACW41 -61/1
FZ09EC EACW41-B3/1
FZ09E 1 RC1 00
FZ09EC 1RC5 10
1.20-2.80
kn
0.63--0.73
v
1.08-2.52
kn
0.63--0.73
v
0.4 mm (0.02 in)
20-24
n
1100-1300 r/min
1.50-3.50 %
30.5-34.5 kPa (229-259 mmHg, 9.0-10.2 inHg)
90.0-110.0 °C (194.00-230.00
°F)
75.0-95.o
•c
(167.00- 203.oo °FJ
300-390 kPa (3.0-3.9 kgf/cm
2 ,
43.5-56.6 psi)
3.0-5.0 mm (0.12-0.20 in)
