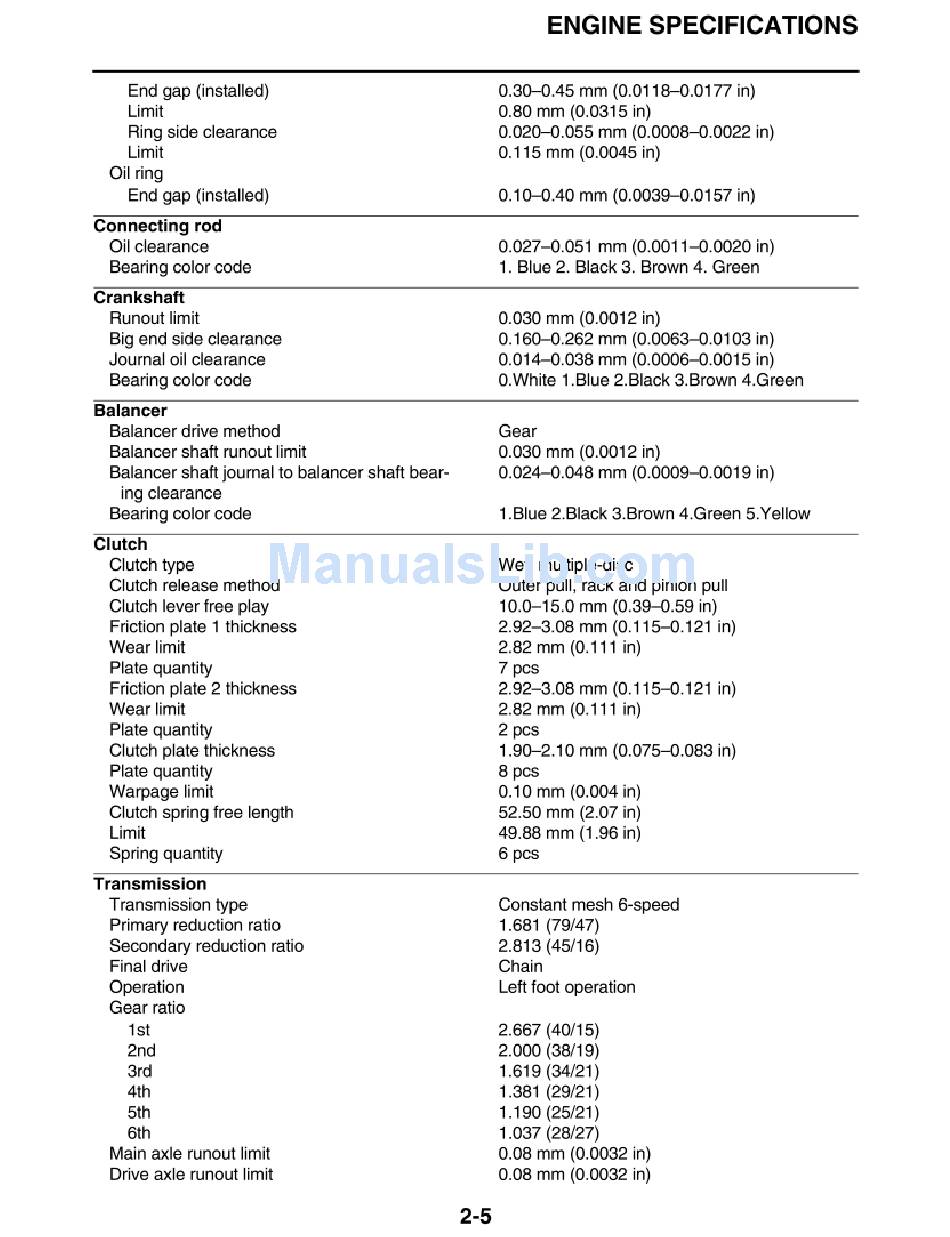

Yamaha FZ09E Service Manual page 40

End gap (installed)
Limit
Ring side clearance
Limit
Oil ring
End gap (installed)
Connecting rod
Oil clearance
Bearing color code
Crankshaft
Runout limit
Big end side clearance
Journal oil clearance
Bearing color code
Balancer
Balancer drive method
Balancer shaft runout limit
Balancer shaft journal to balancer shaft bear·
ing clearance
Bearing color code
Clutch
Clutch type
Clutch release method
Clutch lever free play
Friction plate 1 thickness
Wear limit
Plate quantity
Friction plate 2 thickness
Wear limit
Plate quantity
Clutch plate thickness
Plate quantity
Warpage limit
Clutch spring free length
Limit
Spring quantity
Transmission
Transmission type
Primary reduction ratio
Secondary reduction ratio
Final drive
Operation
Gear ratio
1st
2nd
3rd
4th
5th
6th
Main axle runout limit
Drive axle runout limit
2-5
ENGINE SPECIFICATIONS
0 .30-0.45 mm (0.0118-0.01
n
in)
0.80 mm (0.0315 in)
0.020-0.055 mm (0.0008--0.0022 in)
0.115 mm (0.0045 in)
0.10-0.40 mm (0.0039-0.0157 in)
0.027- 0.051 mm (0.0011--0.0020 in)
1. Blue 2. Black 3. Brown 4. Green
0.030 mm (0.0012 in)
0.160-0.262 mm (0.0063--0.0103 in)
0.014-0.038 mm (0.0006--0.0015 in)
O.White 1.Blue 2.Black 3.Brown 4.Green
Gear
0.030 mm (0.0012 in)
0.024-0.048 mm (0.0009--0.0019 in)
1.Blue 2.Black 3.Brown 4.G reen 5.Yellow
Wet, multiple-disc
Outer pull, rack and pinion pull
10.0- 15.0 mm (0.39-0.59 in)
2.92- 3.08 mm (0.115--0.121 in)
2.82 mm (0.111 in)
7 pcs
2.92-3.08 mm (0.115--0.121 in)
2.82 mm (0.111 in)
2 pcs
1.90-2.1 O mm (0.075--0.083 in)
8pcs
0.1 O mm (0.004 in)
52.50 mm (2.07 in)
49.88 mm (1.96 in)
6 pcs
Constant mesh 6-speed
1.681 (79/47)
2.813 (45/16)
Chain
Left foot operation
2.667 (40/15)
2.000 (38/19)
1.619 (34/21)
1.381 (29/21)
1.190 (25/21)
1.037 (28/27)
0.08 mm (0.0032 in)
0 .08 mm (0.0032 in)
