Danfoss VLT FC 322 Instruction Manual page 28

Start Up and Commissioning VLT® Automation VT Drive FC 322 D-Frame Instruction Manual
3. Use navigation keys to scroll to parameter group
0-0* Basic Settings and press [OK].

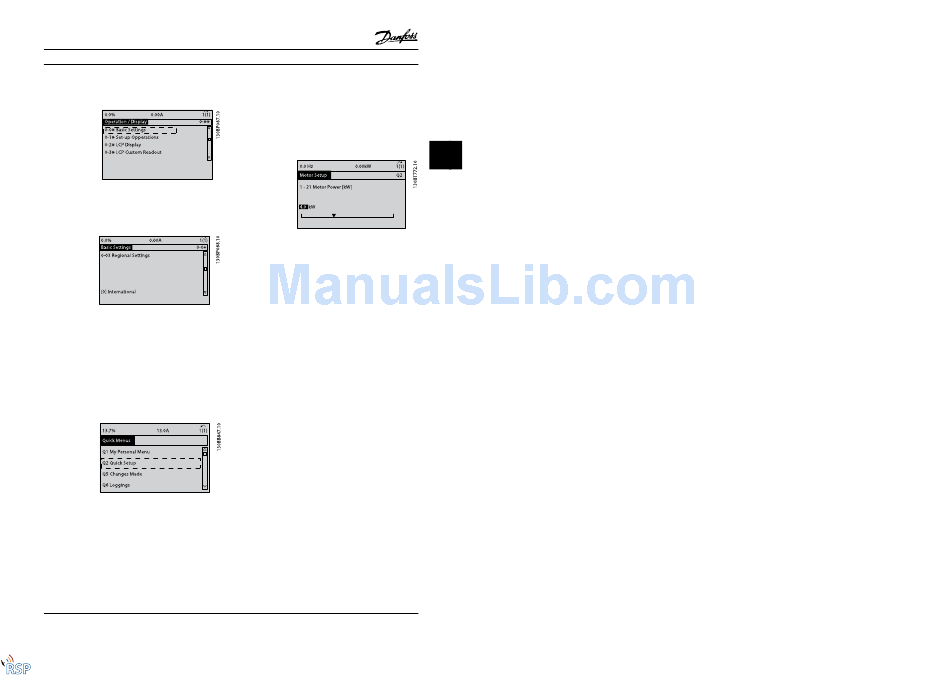

Figure 3.2
4. Use navigation keys to scroll to 0-03 Regional
Settings and press [OK].
Figure 3.3
5. Use navigation keys to select International or
North America as appropriate and press [OK]. (This
changes the default settings for a number of
basic parameters. See 5.5 Parameter Menu
Structure for a complete list.)
6. Press [Quick Menu] on the LCP.
7. Use the navigation keys to scroll to parameter
group Q2 Quick Setup and press [OK].
Figure 3.4
8. Select language and press [OK]. Then enter the
motor data in 1-20 Motor Power [kW] /1-21 Motor
Power [HP] through 1-25 Motor Nominal Speed.
The information can be found on the motor
nameplate.
MG21E122 - VLT® is a registered Danfoss trademark
Remote Site Products - 1-888-532-2706 - www.remotesiteproducts.com
http://www.remotesiteproducts.com/p-20776-Danfoss-131X8139-VLT-Automation-VT-Drive-VFD-FC322-230V-20-HP.aspx
1-20 Motor Power [kW] or 1-21 Motor
Power [HP]
1-22 Motor Voltage
1-23 Motor Frequency
1-24 Motor Current
1-25 Motor Nominal Speed
Figure 3.5
9. A jumper wire should be in place between
control terminals 12 and 27. If this is the case,
leave 5-12 Terminal 27 Digital Input at factory
default. Otherwise select No Operation. For
frequency converters with an optional Danfoss
bypass, no jumper wire is required.
10. 3-02 Minimum Reference
11. 3-03 Maximum Reference
12. 3-41 Ramp 1 Ramp Up Time
13. 3-42 Ramp 1 Ramp Down Time
14. 3-13 Reference Site. Linked to Hand/Auto* Local
Remote.
This concludes the quick set-up procedure. Press [Status]
to return to the operational display.
3-3
3 3
