Application Examples VLT® Automation VT Drive FC 322 D-Frame Instruction Manual
Parameters
Function Setting
4-30 Motor
Feedback Loss
Function [1] Warning
4-31 Motor 100 RPM
Feedback Speed
Error
4-32 Motor 5 s
Feedback Loss
Timeout
7-00 Speed PID [2] MCB 102
Feedback Source
17-11 Resolution 1024*
(PPR)
13-00 SL [1] On
Controller Mode
13-01 Start [19] Warning
Event
13-02 Stop [44] Reset
Event key
13-10 Comparat [21] Warning
or Operand no.
13-11 Comparat [1] ≈*
or Operator
13-12 Comparat 90
or Value
13-51 SL [22]
Controller Event Comparator 0
13-52 SL [32] Set
Controller Action digital out A
low
5-40 Function [80] SL digital
Relay output A
* = Default Value
Notes/comments:
If the limit in the feedback
monitor is exceeded, Warning
90 will be issued. The SLC
monitors Warning 90 and in the
case that Warning 90 becomes
TRUE then Relay 1 is triggered.
External equipment may then
indicate that service may be
required. If the feedback error
goes below the limit again
within 5 s then the frequency
converter continues and the
warning disappears. But Relay 1
will still be triggered until
[Reset] on the LCP.

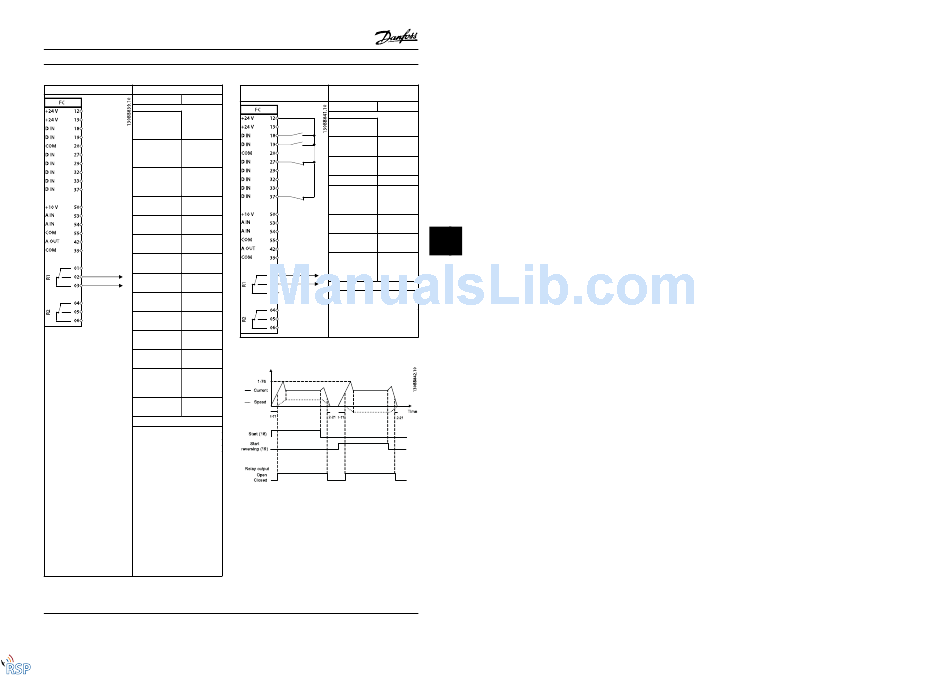

Table 6.13 Using SLC to Set a Relay
