6 Application Examples

6.1 Introduction

NOTE!
A jumper wire may be required between terminal 12 (or
13) and terminal 37 for the frequency converter to operate
when using factory default programming values.
The examples in this section are intended as a quick
reference for common applications.
•
Parameter settings are the regional default values
unless otherwise indicated (selected in
0-03 Regional Settings)
•
Parameters associated with the terminals and
their settings are shown next to the drawings
•
Where switch settings for analog terminals A53 or
A54 are required, these are also shown

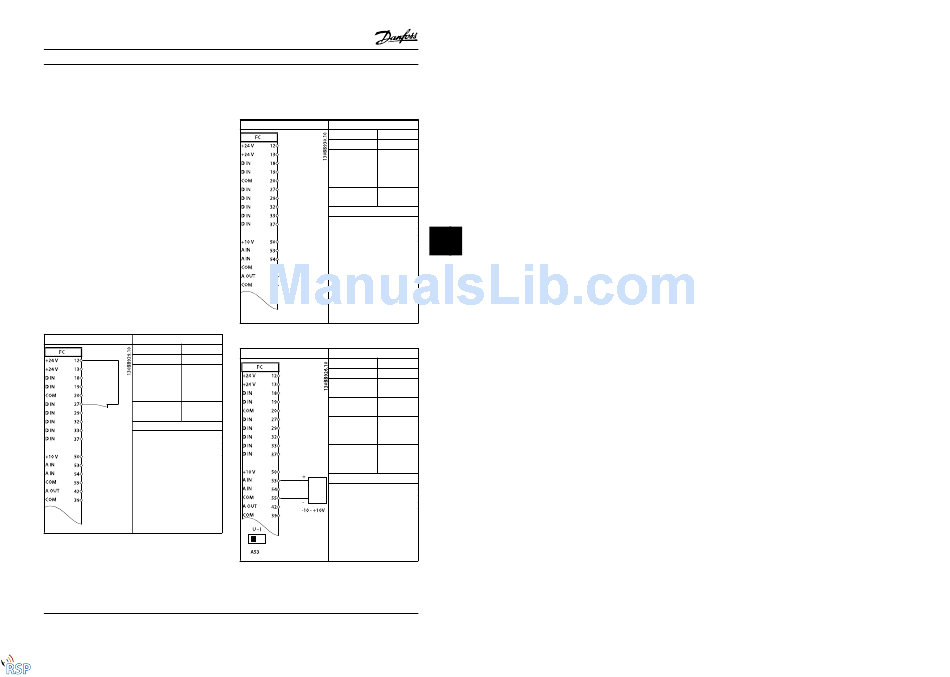

6.2 Application Examples
Parameters
Function Setting
1-29 Automatic
Motor [1] Enable
Adaptation complete
(AMA) AMA
5-12 Terminal 27 [2]* Coast
Digital Input inverse
* = Default Value
Notes/comments: Parameter
group 1-2* must be set
according to motor
Table 6.1 AMA with T27 Connected
MG21E122 - VLT® is a registered Danfoss trademark
Remote Site Products - 1-888-532-2706 - www.remotesiteproducts.com
http://www.remotesiteproducts.com/p-20776-Danfoss-131X8139-VLT-Automation-VT-Drive-VFD-FC322-230V-20-HP.aspx
Parameters
Function Setting
1-29 Automatic
Motor [1] Enable
Adaptation complete
(AMA) AMA
5-12 Terminal 27 [0] No
Digital Input operation
* = Default Value
Notes/comments: Parameter
group 1-2* must be set
according to motor
Table 6.2 AMA without T27 Connected
Parameters
Function Setting
6-10 Terminal 53
Low Voltage 0.07 V*
6-11 Terminal 53 10 V*
High Voltage
6-14 Terminal 53 0 RPM
Low Ref./Feedb.
Value
6-15 Terminal 53 1500 RPM
High Ref./Feedb.
Value
* = Default Value
Notes/comments:
Table 6.3 Analog Speed Reference (Voltage)
