User Interface

VLT® Automation VT Drive FC 322 D-Frame Instruction Manual
4 User Interface

4.1 Local Control Panel

The local control panel (LCP) is the combined display and
keypad on the front of the unit. The LCP is the user
interface to the frequency converter.
The LCP has several user functions.
•
Start, stop, and control speed when in local
control.
•
Display operational data, status, warnings and
cautions.
•
Programming frequency converter functions.
•
Manually reset the frequency converter after a
fault when auto-reset is inactive.
An optional numeric LCP (NLCP) is also available. The NLCP
®
operates in a manner similar to the LCP. See VLT
Programming Guide, for details on use of the NLCP.
MG21E122 - VLT® is a registered Danfoss trademark
Remote Site Products - 1-888-532-2706 - www.remotesiteproducts.com
http://www.remotesiteproducts.com/p-20776-Danfoss-131X8139-VLT-Automation-VT-Drive-VFD-FC322-230V-20-HP.aspx

4.1.1 LCP Layout

The LCP is divided into four functional groups (see
Figure 4.1).

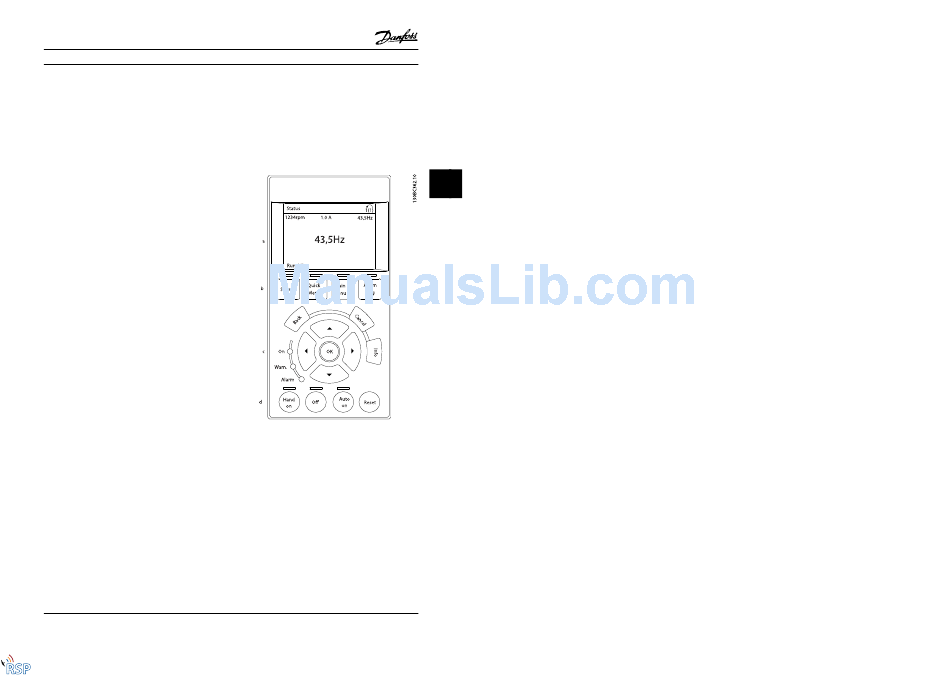

Figure 4.1 LCP
a. Display area.
b. Display menu keys for changing the display to
show status options, programming, or error
message history.
c. Navigation keys for programming functions,
moving the display cursor, and speed control in
local operation. Also included are the status
indicator lights.
d. Operational mode keys and reset.
