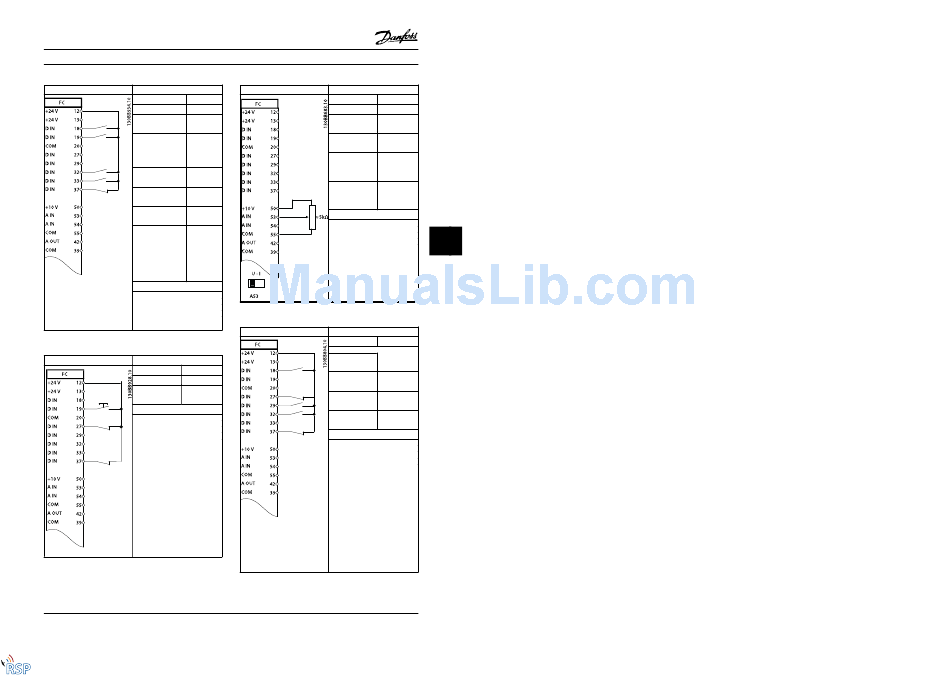

Application Examples VLT® Automation VT Drive FC 322 D-Frame Instruction Manual
Parameters
Function Setting
5-10 Terminal 18 [8] Start
Digital Input
5-11 Terminal 19 [10]
Digital Input Reversing*
5-12 Terminal 27 [0] No
Digital Input operation
5-14 Terminal 32 [16] Preset
Digital Input ref bit 0
5-15 Terminal 33 [17] Preset
Digital Input ref bit 1
3-10 Preset
Reference
Preset ref. 0 25%
Preset ref. 1 50%
Preset ref. 2 75%
Preset ref. 3 100%
* = Default Value
Notes/comments:
Table 6.7 Start/Stop with Reversing and 4 Preset Speeds
Parameters
Function Setting
5-11 Terminal 19 [1] Reset
Digital Input
* = Default Value
Notes/comments:
Table 6.8 External Alarm Reset
