1.951.0351BE4
19510351_a.doc
Operating
manual

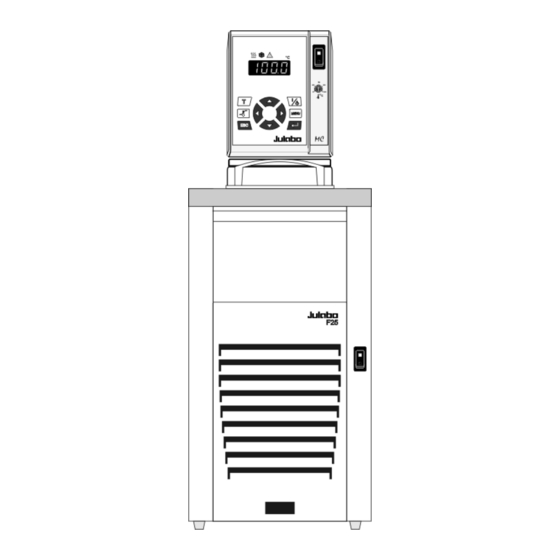

Refrigerated and Heating Circulators
F12-MC
F32-MC
FP35-MC
02/09
English
F25-MC
F26-MC
F33-MC
F34-MC
FP40-MC
FP50-MC
FPW50-MC
Innovative Temperature Technology
JULABO Labortechnik GmbH
77960 Seelbach / Germany
+49 (0) 7823 / 51-0
+49 (0) 7823 / 24 91
info@julabo.de
www.julabo.de
Druck: 17.03.09

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the F25-MC and is the answer not in the manual?

Questions and answers

Related Manuals for Julabo F25-MC

Summary of Contents for Julabo F25-MC

  • Page 1 Refrigerated and Heating Circulators F12-MC F25-MC F26-MC F32-MC F33-MC F34-MC FP35-MC FP40-MC FP50-MC FPW50-MC Innovative Temperature Technology JULABO Labortechnik GmbH 77960 Seelbach / Germany +49 (0) 7823 / 51-0 +49 (0) 7823 / 24 91 info@julabo.de www.julabo.de 1.951.0351BE4 02/09 19510351_a.doc Druck: 17.03.09...
  • Page 2 Congratulations! You have made an excellent choice. JULABO thanks you for the trust you have placed in us. This operating manual has been designed to help you gain an understanding of the operation and possible applications of our circulators. For optimal utilization of all functions, we recommend that you thoroughly study this manual prior to beginning operation.

  • Page 3: Table Of Contents

    TABLE OF CONTENTS Operating manual ......................5 Intended use ......................5 1.1. Description ......................5 Operator responsibility – Safety recommendations ..........6 2.1. Disposal......................8 2.2. EC Conformity ....................9 2.3. Warranty conditions....................9 2.4. Technical specifications ...................10 2.5. Cooling water connection .................16 Operating instructions ....................18 Operating controls and functional elements............18 Safety notes for the user ..................20 4.1.
  • Page 4 Setup for remote control ................51 12.2. Communication with a PC or a superordinated data system.......51 12.3. List of commands..................52 12.4. Status messages ..................54 12.5. Error messages....................54 13. JULABO Service – Online remote diagnosis ............56 14. Cleaning / repairing the unit .................57...

  • Page 5: Operating Manual

    Operating manual Intended use JULABO circulators have been designed to control the temperature of specific fluids in a bath tank. The units feature pump connections for temperature control of external systems (loop circuit). JULABO circulators are not suitable for direct temperature control of foods, semi-luxury foods and tobacco, or pharmaceutical and medical products.

  • Page 6: Operator Responsibility - Safety Recommendations

    Operator responsibility – Safety recommendations Operator responsibility – Safety recommendations The products of JULABO ensure safe operation when installed, operated, and maintained according to common safety regulations. This section explains the potential dangers that may arise when operating the circulator and also specifies the most important safety precautions to preclude these dangers as far as possible.
  • Page 7 Appropriate operation Only qualified personnel is authorized to perform configuration, installation, maintenance and repairs of the circulator. Routine operation can also be carried out by untrained personnel who should however be instructed by trained personnel. Use: The bath can be filled with flammable materials. Fire hazard! There might be chemical dangers depending on the bath medium used.

  • Page 8: Disposal

    Warning label W26: Colors: yellow, black Hot surface warning. (The label is put on by JULABO) Observe the instructions in the manuals for instruments of a different make that you connect to the circulator, particularly the respective safety recommendations. Also observe the pin assignment of plugs and technical specifications of the products.

  • Page 9: Ec Conformity

    24 months, limited to a maximum of 10 000 working hours. To apply for this extended warranty the user must register the unit on the JULABO web site www.julabo.de, indicating the serial no. The extended warranty will apply from the date of JULABO Labortechnik GmbH’s original invoice.

  • Page 10: Technical Specifications

    Operator responsibility – Safety recommendations 2.4. Technical specifications F12-MC F25-MC Working temperature range °C -20 ... 200 -28 ... 200 Temperature stability °C ±0,01 ±0,01 Temperature selection digital via keypad indication on MULTI-DISPLAY(LED) indication on monitor remote control via personal computer...
  • Page 11 F26-MC F32-MC Working temperature range °C -28 ... 200 -35 ... 200 Temperature stability °C ±0,01 ±0,01 Temperature selection digital via keypad indication on MULTI-DISPLAY(LED) indication on monitor remote control via personal computer Temperature indication MULTI-DISPLAY (LED) Resolution °C Absolute Temperature Calibration °C ±3 Temperature control...
  • Page 12 Operator responsibility – Safety recommendations F33-MC F34-MC Working temperature range °C -30 ... 200 -30 ... 150 Temperature stability °C ±0,01 ±0,01 Temperature selection digital via keypad indication on MULTI-DISPLAY(LED) indication on monitor remote control via personal computer Temperature indication MULTI-DISPLAY (LED) Resolution °C...
  • Page 13 FP35-MC Working temperature range °C -35 ... 150 Temperature stability °C ±0,01 Temperature selection digital via keypad indication on MULTI-DISPLAY(LED) indication on monitor remote control via personal computer Temperature indication MULTI-DISPLAY (LED) Resolution °C Absolute Temperature Calibration °C ±3 Temperature control PID2 Heater wattage (at 230 V) Heater wattage (at 115 V)
  • Page 14 Operator responsibility – Safety recommendations FP40-MC Working temperature range °C -40 ... 200 Temperature stability °C ±0,01 Temperature selection digital via keypad indication on MULTI-DISPLAY(LED) indication on monitor remote control via personal computer Temperature indication MULTI-DISPLAY (LED) Resolution °C Absolute Temperature Calibration °C ±3 Temperature control...
  • Page 15 FP(W)50-MC Working temperature range °C -50 ... 200 Temperature stability °C ±0,01 Temperature selection digital via keypad indication on MULTI-DISPLAY(LED) indication on monitor remote control via personal computer Temperature indication MULTI-DISPLAY (LED) Resolution °C Absolute Temperature Calibration °C ±3 Temperature control PID2 Heater wattage (at 230 V) Heater wattage (at 115 V)

  • Page 16: Cooling Water Connection

    Operator responsibility – Safety recommendations Safety installations according to IEC 61010-2-010: Excess temperature protection adjustable from 0 °C ... 230 °C Low liquid level protection float switch Classification according to DIN 12876-1 class III Supplementary safety installations Early warning system for low level float switch High temperature warning function optical + audible (in intervals)
  • Page 17 Recommended quality of cooling water: pH – value 7,5 to 9,0 Sulfate [SO4 2- ] < 100 ppm Hydrocarbonate [HCO3- ] / Sulphate [SO4 2-] > 1 ppm Hardness [Ca2+, Mg2+] / [HCO3-] > 0,5 dH Alkalinity 60 ppm < [HCO3-] < 300 ppm Conductivity <...

  • Page 18: Operating Instructions

    Operating instructions Operating instructions Operating controls and functional elements Front view Rear view °C °C Mains power switch, illuminated for circulator Mains power switch, illuminated for cooling machine Start / stop key Key for selecting the working temperature Key for selecting the warning and safety values Menu functions Cursor keys (left or right)
  • Page 19 Control indicator – Cooling (without function) Control indicator – Alarm Adjustable excess temperature protection according to IEC 61010-2-010 Socket: control cable of JULABO refrigerated circulator or output for alarm messages Interface RS232 : remote control via personal computer RS232 Mains circuit breakers (resettable) 15 A...

  • Page 20: Safety Notes For The User

    Safety notes for the user Safety notes for the user 4.1. Explanation of safety notes In addition to the safety warnings listed, warnings are posted throughout the operating manual. These warnings are designated by an exclamation mark inside an equilateral triangle. “Warning of a dangerous situation (Attention! Please follow the documentation).”...
  • Page 21 precautions listed in this manual before installing or operating your unit. • Set the excess temperature safety installation at least 25 °C below the fire point of the bath fluid. • Observe the limited working temperature range when using plastic bath tanks. •...
  • Page 22 Safety notes for the user Caution: The temperature controlling i.e. of fluids in a reactor constitutes normal circulator practice. We do not know which substances are contained within these vessels. Many substances are: • inflammable, easily ignited or explosive • hazardous to health •...

  • Page 23: Preparations

    Preparations 5.1. Installation • Place the unit on an even surface on a pad made of non- flammable material. F34-MC: The circulator fitted with a stainless steel bridge is placed on on the back of the bath tank leaving the bath open on the front side.

  • Page 24: Bath Fluids

    Please contact JULABO before using other than recommended bath fluids. Use only nonacidic and noncorrosive bath fluids. JULABO assumes no liability for damage caused by the selection of an unsuitable bath liquid. Unsuitable bath fluids are fluids which, e.g., • are highly viscous...

  • Page 25: Filling / Draining

    5.3. Filling / draining Notice: • Pay attention to the thermal expansion of bath oil during heating to avoid overflowing of the liquid. • Do not drain the bath fluid while it is hot! Check the temperature of the bath fluid prior to draining (by switching the unit on for a short moment, for example).

  • Page 26: Temperature Application To External Systems

    Preparations 5.4. Temperature application to external systems Caution: Securely attach all tubing to prevent slipping. If the circulator is operated without external system, close the pump connector (24a) with the cap nut. The circulator is used for temperature application to external, closed systems (loop circuit) with simultaneous temperature application in the circulator bath.
  • Page 27 Tubing: Warning: At high working temperatures the tubing used for temperature application and cooling water supply represents a danger source. A damaged tubing line may cause hot bath fluid to be pumped out within a short time. This may result in: •...

  • Page 28: Operating Procedures

    Operating procedures Operating procedures 6.1. Power connection Caution: • Only connect the unit to a power socket with earthing contact (PE – protective earth)! • The power supply plug serves as safe disconnecting device from the line and must be always easily accessible. •...
  • Page 29 Start: • Press the start/stop key. The MULTI-DISPLAY (LED) indicates the actual bath temperature. The circulating pump starts with a slight delay. Stop: • Press the start/stop key. The MULTI-DISPLAY (LED) indicates the message "OFF". Caution: F12-MC If the circulator is turned off with the mains switch (1a), or in operating state „OFF“...

  • Page 30: Automatic / Non-Automatic Start Mode

    AUTOSTART on. AUTOSTART off. NOTE: The circulator has been configured and supplied by JULABO according to N.A.M.U.R. recommendations. This means for the start mode, that the unit must enter a safe operating state after a power failure (non-automatic start mode). This safe operating state is indicated by „OFF“...

  • Page 31: Setting The Temperatures

    Setting the temperatures The function of the key is configurable. 1. If the key is pressed, normally only one adjustable working temperature is displayed (factory setting). 2. Press the button to call up the menu , then assign a menu with 3 pre-adjustable setpoints to the key.
  • Page 32 Setting the temperatures Example: Setting working temperature "t 3": Identifier of a Press the key until the desired menu window is menu window indicated on the MULTI-DISPLAY (LED). Example: Press enter to indicate the adjusted value for t 3 on the MULTI-DISPLAY (LED).

  • Page 33: Safety Installations, Warning Functions

    Safety installations, warning functions Check the safety installations at least twice a year (see page 21)! Settings for the excess temperature protection according to IEC 61010-2-010 and for the high and low temperature warning functions are made in a menu that is called up with the key 8.1.

  • Page 34: Early Warning System, Low Level Protection

    Safety installations, warning functions 8.1.1. Early warning system, low level protection This low level protection is independent of the control circuit and is divided in two sections. 1. Switch in stage 1 recognizes a defined (patented) fluid level An audible warning (interval tone) sounds and on the MULTI-DISPLAY (LED) the message "E 40"...

  • Page 35: High And Low Temperature Warning Functions

    8.2. High and low temperature warning functions Factory settings: If for a sensitive temperature application task adherence to a working temperature value (setpoint) is to be supervised, then set high and low temperature warning values. In the example below, the >Setpoint< of 85 °C is surrounded High temperature limit by the values >...

  • Page 36: Limitation Of The Operating Temperature Range

    Safety installations, warning functions The warning functions are only triggered when the actual bath temperature, after start from the „OFF“ or „rOFF“ mode, lies within the set limits for 3 seconds. Recommendation:: Set the high temperature warning value >t High< 5 °C to10 °C above the working temperature setpoint Set the low temperature warning value >t Low<...

  • Page 37: Change-Over Of The Warning Function To Shutdown Function

    8.4. Change-over of the warning function to shutdown function For the two menu items > t High < and > t Low < choose between a warning message being signalled or a complete shutdown of the main functional elements such as heater Factory setting: Li 0 and circulating pump being effected.

  • Page 38: Menu Functions

    Menu functions Menu functions The term „menu functions“ refers to adjustments such • electronically adjustable pump capacity Pump • ATC - Absolute Temperature Calibration ATC status Type (Art): >1. point<, >2. point < or >3. point < calibration 2 values per calibration point ttx = Defined temperature value of the calibration point.

  • Page 39: Setting The Pump Pressure

    9.1. Setting the pump pressure The pressure of the circulating pump is adjustable in four grades Flow rate: 11 ... 16 l/min Pump pressure: 0.22 ... 0.45 bar Factory setting: Stage 2 Press the button until the menu item is displayed. Press enter to indicate the parameter.

  • Page 40: Atc Absolute Temperature Calibration, 3-Point Calibration

    Menu functions 9.2. ATC Absolute Temperature Calibration, 3-point calibration ATC serves to compensate a temperature difference that might occur between circulator and a defined measuring point in the bath tank because of physical properties. Examples: Principle: 1-point calibration For ATC calibration, in steady state the bath temperature at the location of the temperature sensor (T ) is °C...
  • Page 41 Example: 3-point calibration In the temperature range of 80 °C to 160 °C the calibration Examples: curve of the temperature sensor (T ) should be assimilated to = 80.0 °C the actual temperatures on the measuring point (T = 79.7 °C Calibration procedure: = 120.0 °C Press...
  • Page 42 Menu functions Depending on which calibration type is selected (1-point, 2-point or 3-point calibration) only the necessary menu items are indicated. For 1-point calibration: >tt1< and >Ct1< For 2-point calibration: >tt1< and >Ct1< >tt2< and >Ct2< For 3-point calibration: >tt1< and >Ct1< >tt2<...

  • Page 43: Change-Over Of The Key Mode

    9.3. Change-over of the key mode Normally, the key is used to indicate only one adjustable working temperature. Press the key, to call up a menu with 3 pre-adjustable Factory setting: no setpoints. Press the button until the menu item displayed.

  • Page 44: Interface - Baud Rate, Handshake, Parity

    Menu functions 9.5. Interface - Baud rate, Handshake, Parity Factory settings: To allow communication of the circulator with a PC or a 4.8 kBauds superordinated process control system take care the 2 = even interface parameters of both units match. Hardware handshake Adjustable interface parameters 4.8 = 4800 bauds...

  • Page 45: Control Parameters - Xp, Tv, Tn

    9.6. Control parameters – Xp, Tv, Tn The control parameters preset in factory are in most cases adequate for achieving an optimum temperature pattern for the samples requiring temperature application. Each parameter may be manually set via the keypad if necessary, to allow optimum control performance.

  • Page 46: Reset

    Menu functions Optimization instructions for the PID control parameters: optimum setting The heat-up curve reveals inappropriate control °C settings. Inappropriate settings may produce the following heat-up curves: Xp too low Tv/Tn too low °C °C Xp too high or Tv too high Tv/Tn too high or Xp too high °C °C...

  • Page 47: Troubleshooting Guide / Error Messages

    • The float is defect (e. g., because damaged in transit). Repair by authorized JULABO service personnel. • During the self-test after switch-on a short-circuit is registered between pin 2 and pin 4 of the control cable or the control cable is interrupted during operation.
  • Page 48 Troubleshooting guide / Error messages • Defect of the working or excess temperature sensor. Working temperature and excess temperature sensors report a temperature difference of more than 25 °C. • Other errors (I C-BUS errors) • Error in A/D converter •...
  • Page 49 Press enter to automatically perform a single modification of the configuration. Then contact an authorized JULABO service station. Disturbances that are not indicated. The electronic pump motor is overload-protected by an electronic current limiter. If viscosity of the bath fluid is or becomes too high, the motor stops running.

  • Page 50: Electrical Connections

    3 m are used. The use of longer cables does not affect proper performance of the unit, however external interferences may have a negative impact on safe operation. / Control output connector may be used for control of JULABO refrigerated circulators or as output for alarm messages. Circuit: Operation...

  • Page 51: Remote Control

    12. Remote control 12.1. Setup for remote control • Check the interface parameters for both interfaces (on circulator and PC) and make sure they match. (Serial interface - see page 44) RS232C • Set the menu item >Remote< from >no< to >YES<. (see page 43).

  • Page 52: List Of Commands

    Remote control The out commands are valid only in remote control mode. Examples: Command to set the working temperature >t 1< to 55,5 °C: out_sp_00 ⇔ 55.5↵ Command to ask for the working temperature >t 1<: in_sp_00↵ Response from the circulator: 55.5↵...
  • Page 53 in commands: Asking for parameters or temperature values to be displayed. Command Parameter Response of circulator in_pv_00 none Actual bath temperature. in_pv_01 none Heating power being used (%). in_pv_03 none Temperature value registered by the safety sensor. in_pv_04 none Setpoint temperature („SafeTemp“) of the excess temperature protection in_sp_00 none...

  • Page 54: Status Messages

    Remote control 12.4. Status messages Status messages Description Circulator in „OFF“ state. 00 MANUAL STOP Circulator in keypad control mode. 01 MANUAL START Circulator in „r OFF“ state. 02 REMOTE STOP Circulator in remote control mode. 03 REMOTE START 12.5. Error messages Description Error messages -01 LOW LEVEL ALARM...
  • Page 55 Description Error messages -14 EXCESS TEMPERATURE Excess temperature protection alarm PROTECTOR ALARM -20 WARNING: CLEAN Cooling of the condenser is affected. CONDENSOR OR CHECK Clean air-cooled condenser. COOLING WATER CIRCUIT Check the flow rate and cooling water OF REFRIGERATOR temperature on water-cooled condenser. -21 WARNING: COMPRESSOR Compressor stage 1 does not work.

  • Page 56: Julabo Service - Online Remote Diagnosis

    JULABO Service – Online remote diagnosis 13. JULABO Service – Online remote diagnosis JULABO circulators of the HighTech series are equipped with a black box. This box is implemented in the controller and records all significant data for the last 30 minutes.

  • Page 57: Cleaning / Repairing The Unit

    The circulator is designed for continuous operation under normal conditions. Periodic maintenance is not required. The tank should be filled only with a bath fluid recommended by JULABO. To avoid contamination, it is essential to change the bath fluid from time to time. Repairs...
  • Page 58 • When returning a unit, take care of careful and adequate packing. • JULABO is not responsible for damages that might occur from insufficient packing. JULABO reserves the right to carry out technical modifications with repairs for providing improved...
