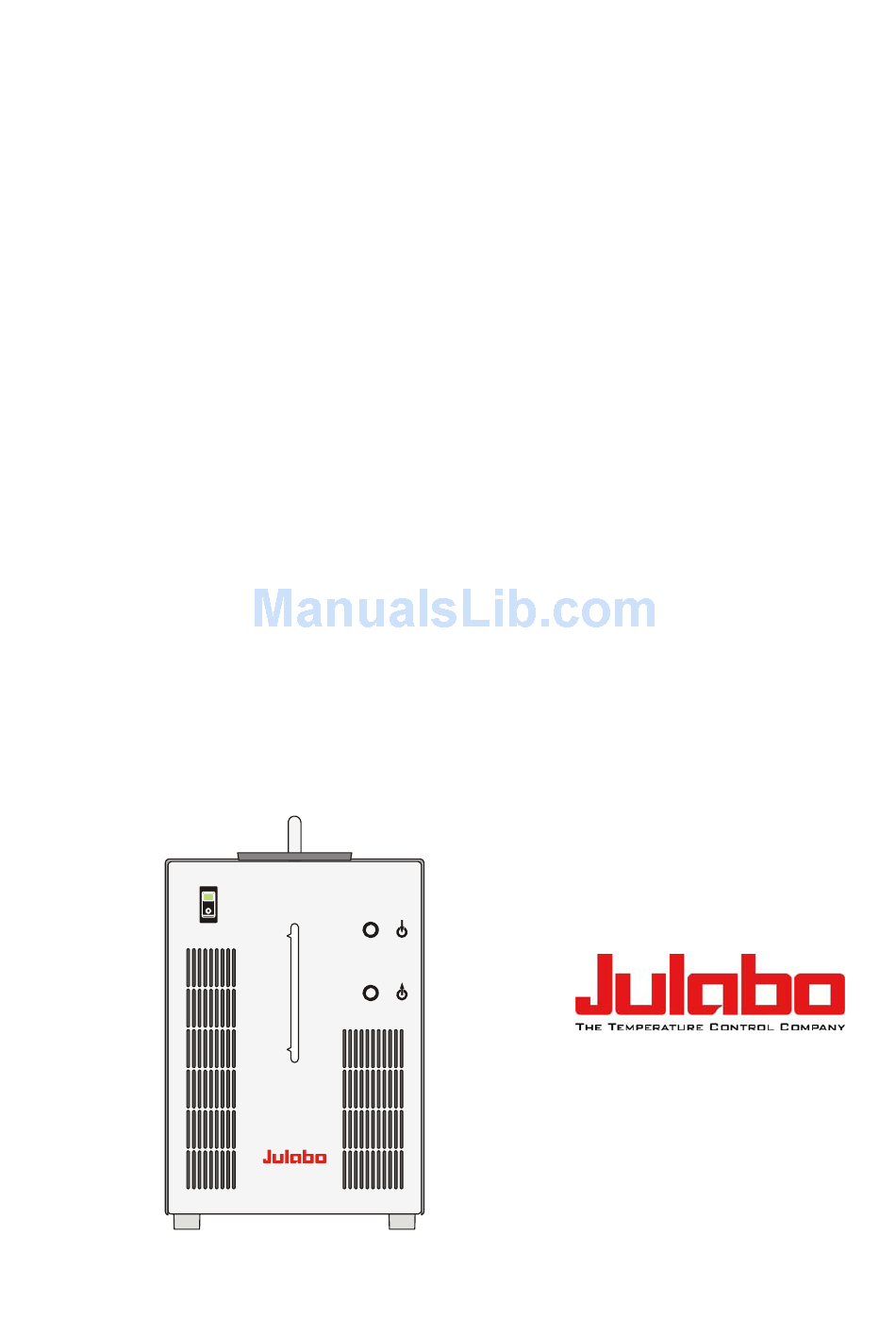

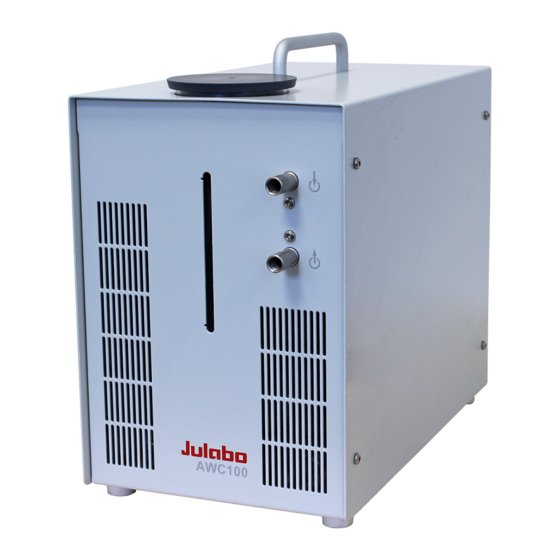

  • Page 1 English Operating manual Compact Recirculating Cooler AWC100 JULABO USA, Inc. 884 Marcon Boulevard Allentown, PA 18109 Phone: +1(610) 231-0250 Fax: +1(610) 231-0260 AWC 100 info @ julabo.com www.julabo.com 19534820_a.doc 27.05.11...
  • Page 2 Congratulations! You have made an excellent choice. JULABO thanks you for the trust you have placed in us. This operating manual has been designed to help you gain an understanding of the operation and possible applications of our circulators. For optimal utilization of all functions, we recommend that you thoroughly study this manual prior to beginning operation.

  • Page 3: Table Of Contents

    Table of Contents INTENDED USE ....................4 1.1. Description......................4 OPERATOR RESPONSIBILITY – SAFETY INSTRUCTIONS ......4 2.1. Disposal ......................6 2.2. Technical specifications ..................7 SAFETY NOTES FOR THE USER ...............8 3.1. Explanation of safety notes................8 3.2. Explanation of other notes ................8 3.3. Safety instructions ..................8 OPERATING CONTROLS AND FUNCTIONAL ELEMENTS......10 PREPARATIONS ....................11 5.1.

  • Page 4: Intended Use

    The pump connections can be used for cooling applications in an external circuit at a constant temperature. JULABO water baths are not suitable for direct temperature control of foods, semi-luxury foods and tobacco, or pharmaceutical and medical products. Direct temperature control means unprotected contact of the object with the bath medium (bath fluid).
  • Page 5 If you have any questions concerning the operation of your unit or the information in this manual, please contact us! Contact JULABO USA, Inc. Phone:+1(610) 231-0250 884 Marcon Boulevard Fax: +1(610) 231-0260 Allentown, PA 18109 info @ julabo.com www.julabo.com Safety recommendations for the operator You received a product conceived for industrial use.

  • Page 6: Disposal

    Operator responsibility – Safety instructions When using hazardous materials or materials that could become hazardous, the operator must affix the enclosed safety labels to the front of the unit so they are highly visible: If this unit is intended for use within the United States of America, all 3 warning labels must be affixed to the housing of the unit prior to use.

  • Page 7: Technical Specifications

    2.2. Technical specifications AWC100 Working temperature range °C +20 ... +40 Cooling capacity varying with the temp. Difference between return line temp. and ambient temperature °C 15 10 stage 0 400 320 220 120 stage 1 550 440 300 180 Circulating pump flow rate, max.

  • Page 8: Safety Notes For The User

    Safety notes for the user Safety notes for the user 3.1. Explanation of safety notes In addition to the safety warnings listed above, warnings are posted throughout the manual. These warnings are designated by an exclamation mark inside an equilateral triangle. “Warning of a dangerous situation (Attention! Please follow the documentation).”...
  • Page 9 • Make sure you read and understand all instructions and safety precautions listed in this manual before installing or operating your unit. • Never operate the unit without bath fluid in the bath. • Do not drain the bath fluid while it is hot or cold! •...

  • Page 10: Operating Controls And Functional Elements

    Operating controls and functional elements Operating controls and functional elements AWC 100 Back Front Filling level indication Mains power switch, illuminated max. Filling level indication Lid on cooling water storage tank Handle Pump connector: Return Pump connector: Feed Safety cutouts: Mains fuses 4 A min.

  • Page 11: Preparations

    5.2. Bath fluids Caution: No liability for use of other bath liquids! Please contact JULABO before using other than recommended bath fluids. JULABO takes no responsibility for damages caused by the selection of an unsuitable bath fluid Do not use alcohols. Water: The quality of water depends on local conditions.

  • Page 12: Tubing

    JULABO Suitable for Order No. ® 8930008 1m CR tubing, 8mm inner dia. AWC100 ® 8930010 1m CR tubing, 10 mm inner dia. AWC100 • Connect the tubings for cooling the external system to the pump connectors for feed and return (5 and 6) on the front of the recirculating cooler and secure the screw connection firmly.

  • Page 13: Operating Procedures

    Operating procedures 6.1. Power connection Caution: • Only connect the unit to a power socket with earthing contact (PE – protective earth • We disclaim all liability for damage caused by incorrect line voltages! • The power supply plug serves as safe disconnecting device from the line and must be always easily accessible.

  • Page 14: Cleaning / Repairing The Unit

    Clean the outside of the unit using a wet cloth and low surface tension water (e.g., soap suds). Repairs: Before asking for a service technician or returning a JULABO instrument for repair, please contact an authorized JULABO service station. When returning the unit: •...

  • Page 15: Warranty Provisions

    WARRANTY PROVISIONS The following Warranty Provisions shall apply to products sold in North America by Julabo (“Seller”) to the entity shown as buyer (“Buyer”) on Seller’s invoice. Initial Warranty. Upon Seller’s receipt of payment in full for the products and subject to Buyer’s compliance with the terms of sale and any other agreement with Seller relating to the products, Seller...
  • Page 16 WARRANTY PROVISIONS THE REMEDIES PROVIDED IN THE INITIAL WARRANTY ARE THE SOLE AND EXCLUSIVE REMEDIES AVAILABLE TO THE BUYER. NOTWITHSTANDING ANYTHING TO THE CONTRARY CONTAINED HEREIN, AND EVEN IF THE SOLE AND EXCLUSIVE REMEDIES FAIL OF THEIR ESSENTIAL PURPOSE FOR ANY REASON WHATSOEVER, IN NO EVENT SHALL SELLER BE LIABLE FOR BUYER’S MANUFACTURING COSTS, LOST PROFITS, GOODWILL, OR ANY OTHER SPECIAL, INDIRECT, PUNITIVE, INCIDENTAL OR CONSEQUENTIAL DAMAGES TO BUYER OR ANY THIRD PARTY AND ALL SUCH DAMAGES ARE HEREBY DISCLAIMED.
