Summary of Contents for Julabo FL7006
- Page 1 English Operating manual Recirculating Coolers °C RS232 ALARM FL7006 FL7006 FLW7006 FL11006 FLW11006 JULABO USA, Inc. 884 Marcon Boulevard Allentown, PA 18109 Phone: +1(610) 231-0250 Fax: +1(610) 231-0260 info.us@ julabo.com www.julabo.com 19534828-V4.doc Print date: 04.02.2016...
- Page 2 Congratulations! You have made an excellent choice. JULABO thanks you for the trust you have placed in us. This operating manual has been designed to help you gain an understanding of the operation and possible applications of our circulators. For optimal utilization of all functions, we recommend that you thoroughly study this manual prior to beginning operation.
-
Page 3: Table Of Contents
11.4. Status messages ......................27 11.5. Error messages ......................28 Cleaning / repairing the unit ..................... 29 12.1. JULABO Service – Online remote diagnosis ..............31 12.2. Draining ........................32 Adequate storing of operating manual ................32 WARRANTY PROVISIONS ..................... 33... -
Page 4: Intended Use
(e. g. for glass equipment). Operator responsibility – Safety instructions The products of JULABO ensure safe operation when installed, operated, and maintained according to common safety regulations. This section explains the potential dangers that may arise when operating the circulator and also specifies the most important safety precautions to preclude these dangers as far as possible. - Page 5 Safet y recommendations for the operat or You received a product conceived for industrial use. Nevertheless, avoid strikes to the housing, vibrations, damages to the keypad foil (keys, display) or contamination. Make sure the product is regularly checked for proper condition. Regularly check (at least every 2 years) the proper condition of the mandatory, warning, prohibition and safety labels.
-
Page 6: Disposal
Observe the instructions in the manuals for instruments of a different make that you connect to the circulator, particularly the corresponding safety instructions. Also observe the pin assignment of plugs and technical specifications of the products. 2.1. Disposal This unit contains the refrigerant R404A, which at this time is not considered harmful to the ozone layer. -
Page 7: Technical Specifications
Technical specifications Recirculating Cooler FL7006 FLW7006 Cooling air cooled water cooled Working temperature range °C -20 ... +40 -20 ... +40 Temperature stability °C ±0.5 Temperature selection: digital via key pad indication on LED-DISPLAY remote control via personal computer indication on monitor... - Page 8 Recirculating Cooler FL11006 FLW11006 Cooling air cooled water cooled Working temperature range °C -20 ... +40 -20 ... +40 Temperature stability °C ±0.5 Temperature selection: digital via key pad indication on LED-DISPLAY remote control via personal computer indication on monitor Temperature indication: LED-DISPLAY Resolution...
- Page 9 Warning functions and safety installations Excess temperature protection 85 °C - fixed value Low liquid level protection float switch Alarm message optical + audible (permanent) Excess temperature - Warning function 75 °C Overload protection for compressor and pump motor Classification according to DIN 12876-1 class I Environmental conditions according to IEC 61 010-1: Use only indoor.
-
Page 10: Cooling Water Connection
3.1. Cooling water connection Only for water cooled models - FLW: Cooling water pressure (IN / OUT) max. 6 bar Difference pressure (IN - OUT) 2 bar to 6 bar Flow rate on FLW 7006 typical 11.6 l/min Flow rate on FLW 11006 typical 18.2 l/min Cooling water temperature... -
Page 11: Safety Notes For The User
Safety notes for the user 4.1. Explanation of safety notes In addition to the safety warnings listed above, warnings are posted throughout the manual. These warnings are designated by an exclamation mark inside an equilateral triangle. “Warning of a dangerous situation (Attention! Please follow the documentation).”... - Page 12 • Avoid sharp bends in the tubing, and maintain a sufficient distance from surrounding walls. • Regularly check the tubing for material defects (e.g., for cracks). • Never operate damaged or leaking equipment. • Always turn off the unit and disconnect the mains cable from the power source before performing any service or maintenance procedures, or before moving the unit.
-
Page 13: Operating Controls And Functional Elements

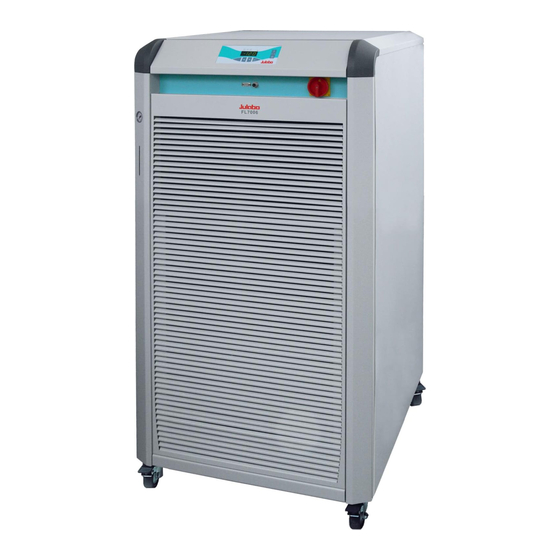

Operating controls and functional elements Example: FL7006 Front view Rear view °C RS232 ALARM FL7006 Top view Protection lid for fill in opening Protection lid for storing place of operating manual Lifting device for transportation by crane... - Page 14 Mains power switch Keypad, spash-water protected Edit keys (set point increase or decrease) Enter key Store set point value / parameter Indication LED temperature display °C Control indicator – Cooling Control indicator – Alarm Protection lid for fill in opening Feed pressure indication: Manometer Interface RS232: remote control via personal computer RS232...
-
Page 15: Installation
Only water cooled models Cooling water inlet Cooling water outlet G3/4" external thread 12 mm inner dia. tubing Installation • Place the unit on an even surface on a base made of nonflammable material. Using the castors (10a, 10b) move the unit to the intended location. - Page 16 • Only water cooled models - FLW: Example: Ensure circulation of cooling water by connecting the PVC-tubing tubing to cooling water inlet (IN) and outlet (OUT) on the rear (18) of the recirculating cooler. Cooling water see page 9. Cooling water connectors G3/4"...
-
Page 17: Tubing
The following questions shall help to recognize possible dangers and to reduce the risks to a minimum. • Are all tubes and electrical cables connected and installed? Note: sharp edges, hot surfaces in operation, moving machine parts, etc. • What to do when a dangerous substance was spilled on or in the unit? Before starting to work, obtain information concerning the substance and determine the method of decontamination. -
Page 18: Operating Procedures
Bath fluids Caution: No liability for use of other bath liquids! Please contact JULABO before using other than recommended bath fluids. JULABO takes no responsibility for damages caused by the selection of an unsuitable bath fluid Do not use alcohols. -
Page 19: Filling
DISPLAY and all indicator lights will illuminate (as illustrated on the left). Then the software version and the type of unit is indicated. Examples: (v 1.02) (FL7006) The display "OFF" indicates the unit is ready to operate (standby ... -
Page 20: Setting The Feed Pressure
7.5. Setting the feed pressure Set the max. permissible feed pressure (example: 2 bar) by slowly closing the adjusting valve (13) on the rear and looking at the manometer (5). max. The max. pressure is determined by the weakest element in the circuit (e. -
Page 21: Autostart On / Off
7.7. AUTOSTART ON / OFF The recirculating cooler has been configured and supplied by JULABO according to N.A.M.U.R. recommendations. This means for the start mode, that the unit must enter a safe operating state after a power failure (non-automatic start mode). This safe operating state is indicated by „OFF“... -
Page 22: Remote Control: Activate - Deactivate
7.8. Remote control: activate – deactivate The recirculating cooler is to be prepared for remote control by a personal computer via the serial interface RS232. Set the interface item from >IOFF< to >ION<. Remote control: activate – deactivate: • Switch off recirculating cooler by pressing the mains switch and wait approx. -
Page 23: Safety Installations
Safety installations 8.1. Excess temperature protection This safety installation is independent of the control circuit. When the temperature of the bath fluid has reached the safety temperature (85 °C), a complete shutdown of the compressor and pump is effected. The alarm is indicated by optical and audible signals (continuous tone) and on the LED-DISPLAY appears the error message "Error 14". - Page 24 Clean air-cooled condenser. • Check the flow rate and cooling water temperature on water-cooled condenser. If the unit cannot be returned to operation, contact an authorized JULABO service station. Disturbances that are not indicated. Overload protection: a) for cooling machine b) for pump motor After a short cooling interval, the unit will automatically start running.
-
Page 25: Electrical Connections
10. Electrical connections Notice: Use shielded cables only. The shield of the connecting cable is electrically connected to the plug housing. The unit ensures safe operation if connecting cables with a maximum length of 3 m are used. The use of longer cables does not affect proper performance of the unit, however external interferences may have a negative impact on safe operation. -
Page 26: Remote Control
11. Remote control 11.1. Setup for remote control Check the interface parameters for both interfaces (on recirculating cooler and PC) and make sure they match. Interface parameters are pre-determined. RS232 Type RS232 Baudrate 4800 bauds Parity even Handshake hardware handshake 11.2. -
Page 27: List Of Commands
The out commands are valid only in remote control mode. Examples: Command to set the working temperature to15.5 °C: out_sp_00 ⇔ 15.5↵ Command to ask for the working temperature in_sp_00↵ 15.5↵ LF Response from the recirculating cooler: 11.3. List of commands out commands: Setting parameters or temperature values. -
Page 28: Error Messages
11.5. Error messages Error messages Description -01 LOW LEVEL ALARM Low liquid level alarm. -05 WORKING SENSOR ALARM Working temperature sensor short-circuited or interrupted. -03 EXCESS TEMPERATURE WARNING High temperature warning. Starting at 75 °C (no deactivation) The return temperature soon reaches the switch-off value of the high temperature warning function (85 °C) -07 I C-BUS ERROR... -
Page 29: Cleaning / Repairing The Unit
12. Cleaning / repairing the unit Caution: Always turn off the unit and disconnect the mains cable from the power source before cleaning the unit. Prevent humidity from entering into the circulator. Electrical connections and any other work must be performed by qualified personnel only. - Page 30 The recirculating cooler is designed for continuous operation under normal conditions. Periodic maintenance is not required. The tank should be filled only with a bath fluid recommended by JULABO. To avoid contamination, it is essential to change the bath fluid from time to time. Repairs: Before asking for a service technician or returning a JULABO instrument for repair, please contact an authorized JULABO service station.
-
Page 31: Julabo Service - Online Remote Diagnosis
12.1. JULABO Service – Online remote diagnosis JULABO circulators of the HighTech series are equipped with a black box. This box is implemented in the controller and records all significant data for the last 30 minutes. In case of a failure, this data can be read out from the unit by using special software. -
Page 32: Draining
12.2. Draining Notice: Store and dispose the used bath fluid according to the laws for environmental protection. Risk of injury for hands when mounting the venting grid. °C °C • Turn off the unit and disconnect the RS232 ALARM RS232 ALARM mains cable from the power source. -
Page 33: Warranty Provisions
14. WARRANTY PROVISIONS The following Warranty Provisions shall apply to products sold in North America by Julabo (“Seller”) to the entity shown as buyer (“Buyer”) on Seller’s invoice. Initial Warranty. Upon Seller’s receipt of payment in full for the products and subject to Buyer’s... - Page 34 INCIDENTAL OR CONSEQUENTIAL DAMAGES TO BUYER OR ANY THIRD PARTY AND ALL SUCH DAMAGES ARE HEREBY DISCLAIMED. Assignment. Buyer shall not assign any of its rights or obligations hereunder without the prior written approval of Seller; provided, however, that if Buyer is a distributor of Seller, the rights and obligations of Buyer under these Warranty Provisions shall inure to the benefit of and be binding upon Buyer’s customers who provide the product’s proof of purchase to Seller pursuant to the terms set forth herein.
