Lcd Display; Touch Screen - Xycom 4117T User Manual

4117T Light Duty Industrial PC

LCD Display

Table 1-1 identifies the features of the 4117T LCD display.

Touch Screen

Table 1-2 identifies important specifications of the 4117T touch screen.
Touch Screen Model
Screen Type
Resolution
Light Transmission
Surface Hardness
Support Driver
The figures on the next several pages show the internal and external components on
the front and back panels of the unit to help you locate features relevant to
installation.
Table 1-1. 4117T LCD Display Specifications
Display Model AUO
Display Type 17" TFT color
Resolution 1280 x 1024
Maximum colors 16.2M
Brightness 300 cd/m
Table 1-2. 4117T Touch Screen Specifications
Description
Eight wire analog resistive touch screen
Continuous
Typical value 75%
4H (Test condition: ASTM D3363-92A)
Supports Windows 2000/XP

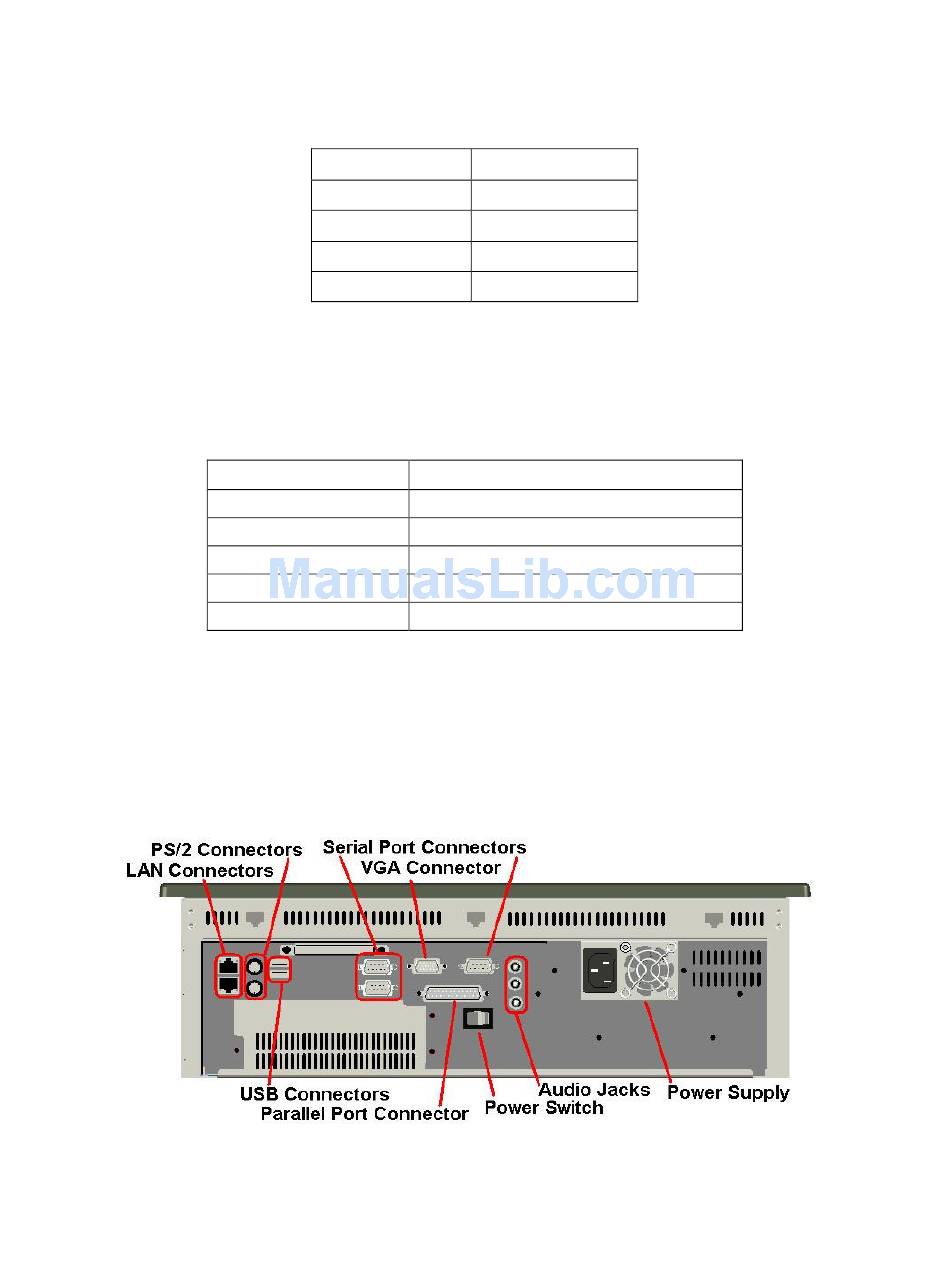

Figure 1-1. I/O Panel
2
Chapter 1 – Introduction
2
144811(B)
