Mechanical Dimensions

Front Panel: 17.79" (451.61 mm) x 13.99"(355.25 mm) x 0.39"(9.79 mm) (WxHxD)
Cabinet: 15.1" (339.98 mm) x 12.91" (328 mm) x 4.94" (125.41 mm) (WxHxD)
Note: All dimensions in mm)

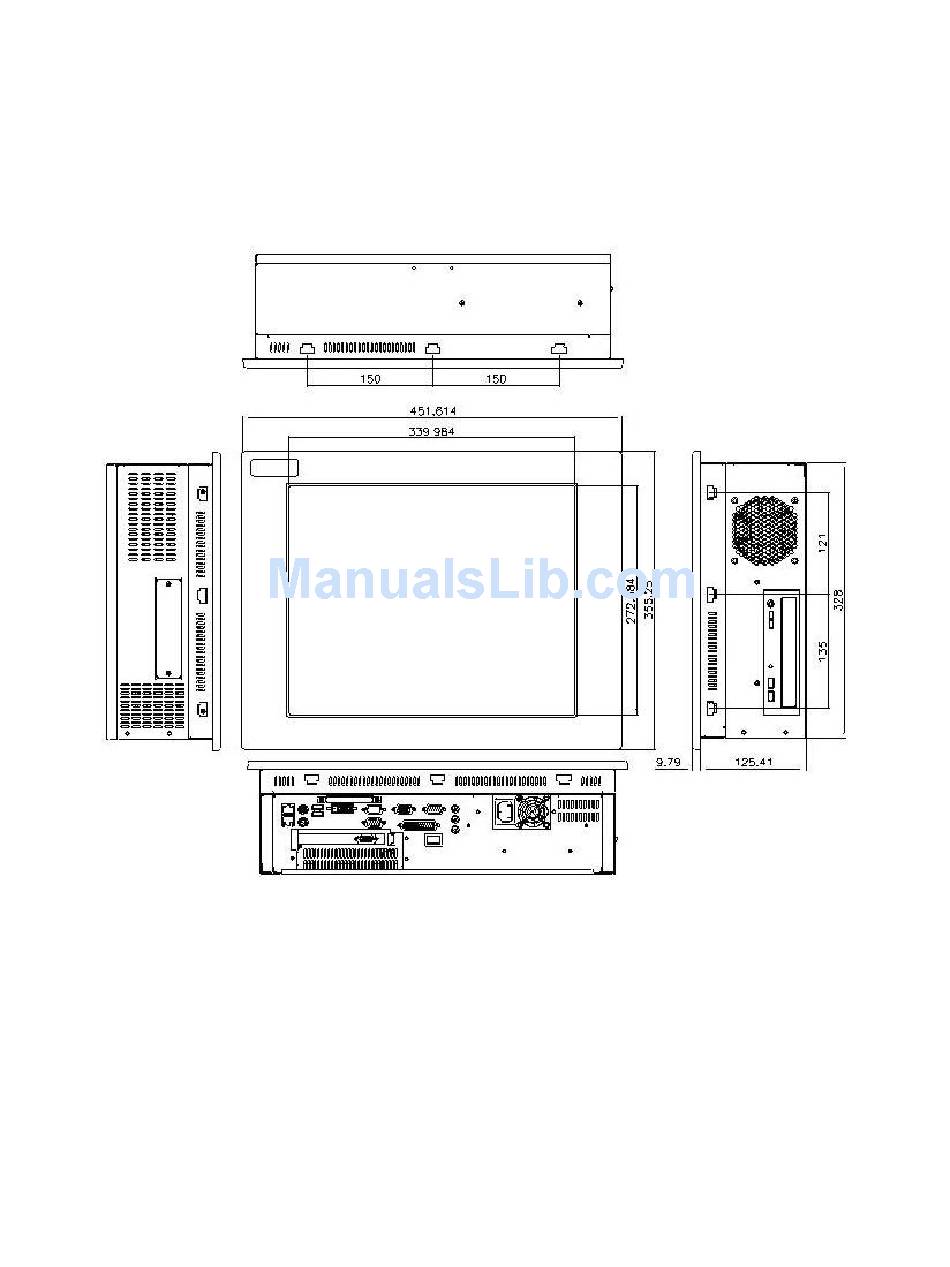

Figure 2-1. Unit Dimensions
