2.2

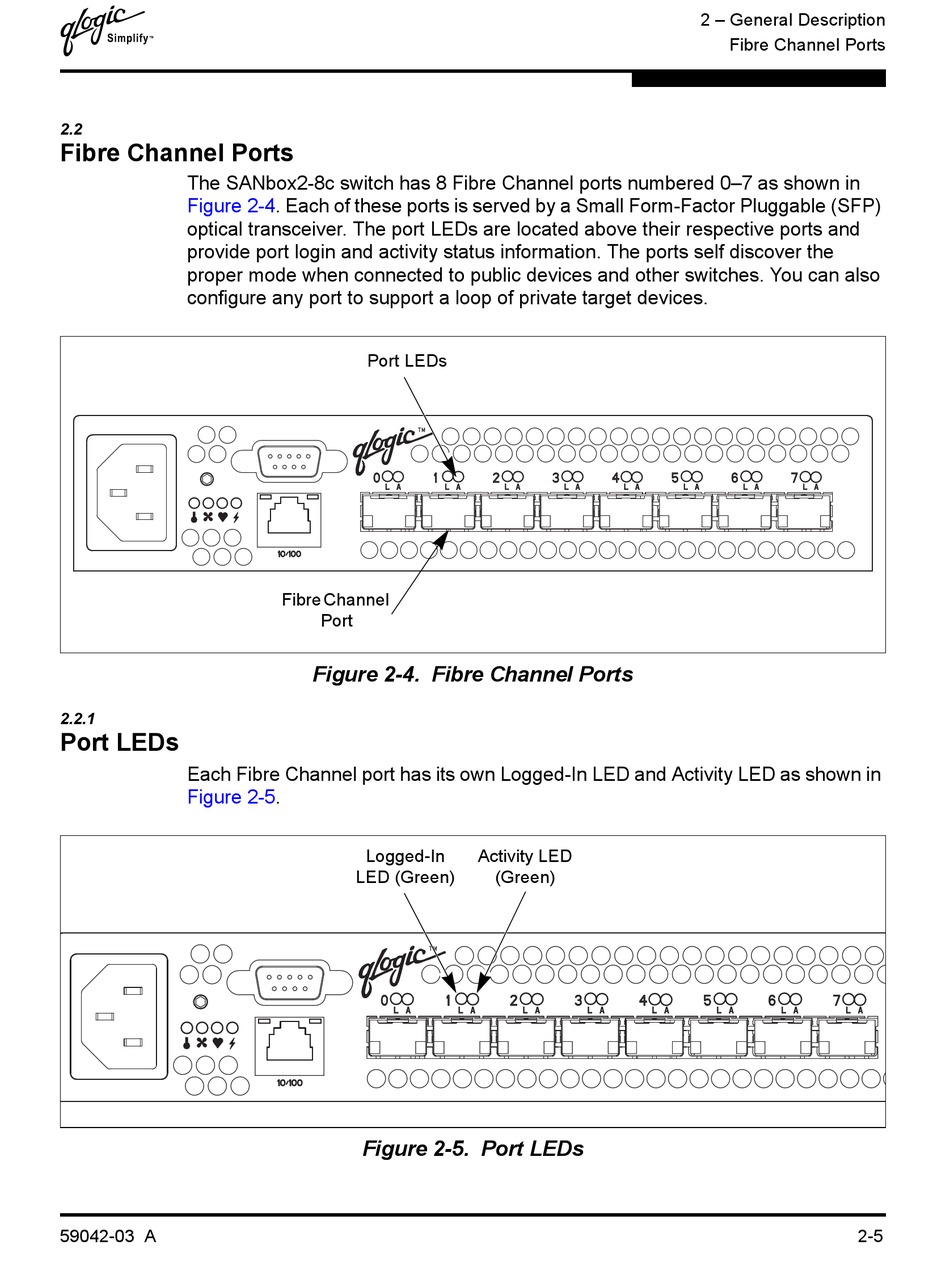

Fibre Channel Ports

The SANbox2-8c switch has 8 Fibre Channel ports numbered 0–7 as shown in
Figure
optical transceiver. The port LEDs are located above their respective ports and
provide port login and activity status information. The ports self discover the
proper mode when connected to public devices and other switches. You can also
configure any port to support a loop of private target devices.
2.2.1

Port LEDs

Each Fibre Channel port has its own Logged-In LED and Activity LED as shown in
Figure
59042-03 A
2-4. Each of these ports is served by a Small Form-Factor Pluggable (SFP)

Port LEDs

Fibre Channel
Port
Figure 2-4. Fibre Channel Ports
2-5.
Logged-In
LED (Green)
Figure 2-5. Port LEDs
Activity LED
(Green)
2 – General Description
Fibre Channel Ports
2-5
