2.4
Serial Port
The SANbox2-8c switch is equipped with an RS-232 serial port for maintenance
purposes. The serial port location is shown in
switch through the serial port using the CLI.
The serial port connector requires a null-modem F/F DB9 cable. The pins on the
switch RS-232 connector are shown in
Refer to
information about connecting the management workstation through the serial port.
1
2
3
4
5
6
7
8
9
59042-03 A
5
1
Serial Port
6
9

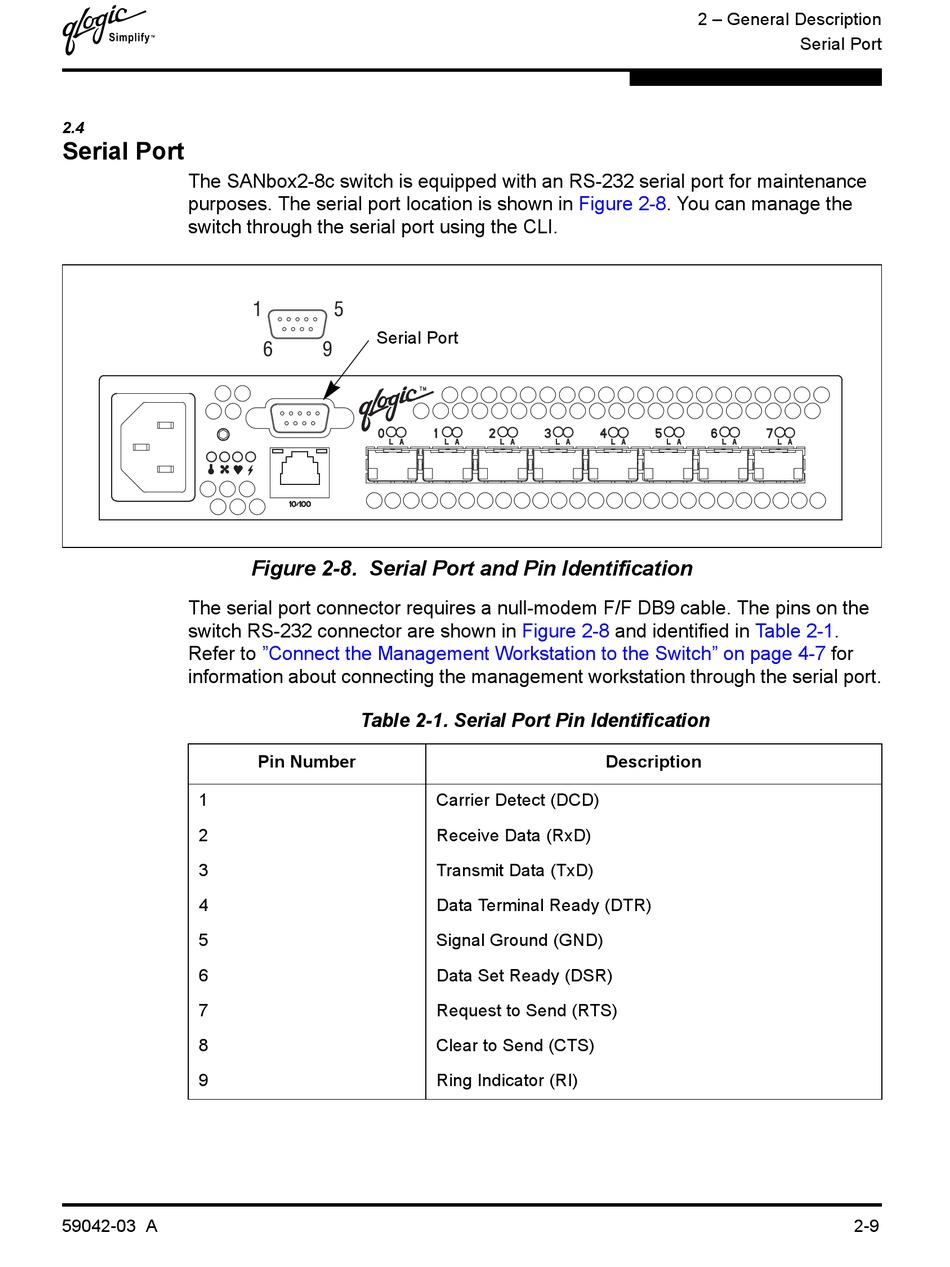

Figure 2-8. Serial Port and Pin Identification
"Connect the Management Workstation to the Switch" on page 4-7
Table 2-1. Serial Port Pin Identification
Pin Number
Figure
Figure 2-8
Description
Carrier Detect (DCD)
Receive Data (RxD)
Transmit Data (TxD)
Data Terminal Ready (DTR)
Signal Ground (GND)
Data Set Ready (DSR)
Request to Send (RTS)
Clear to Send (CTS)
Ring Indicator (RI)
2 – General Description
2-8. You can manage the
and identified in
Table
Serial Port
2-1.
for
2-9
