D

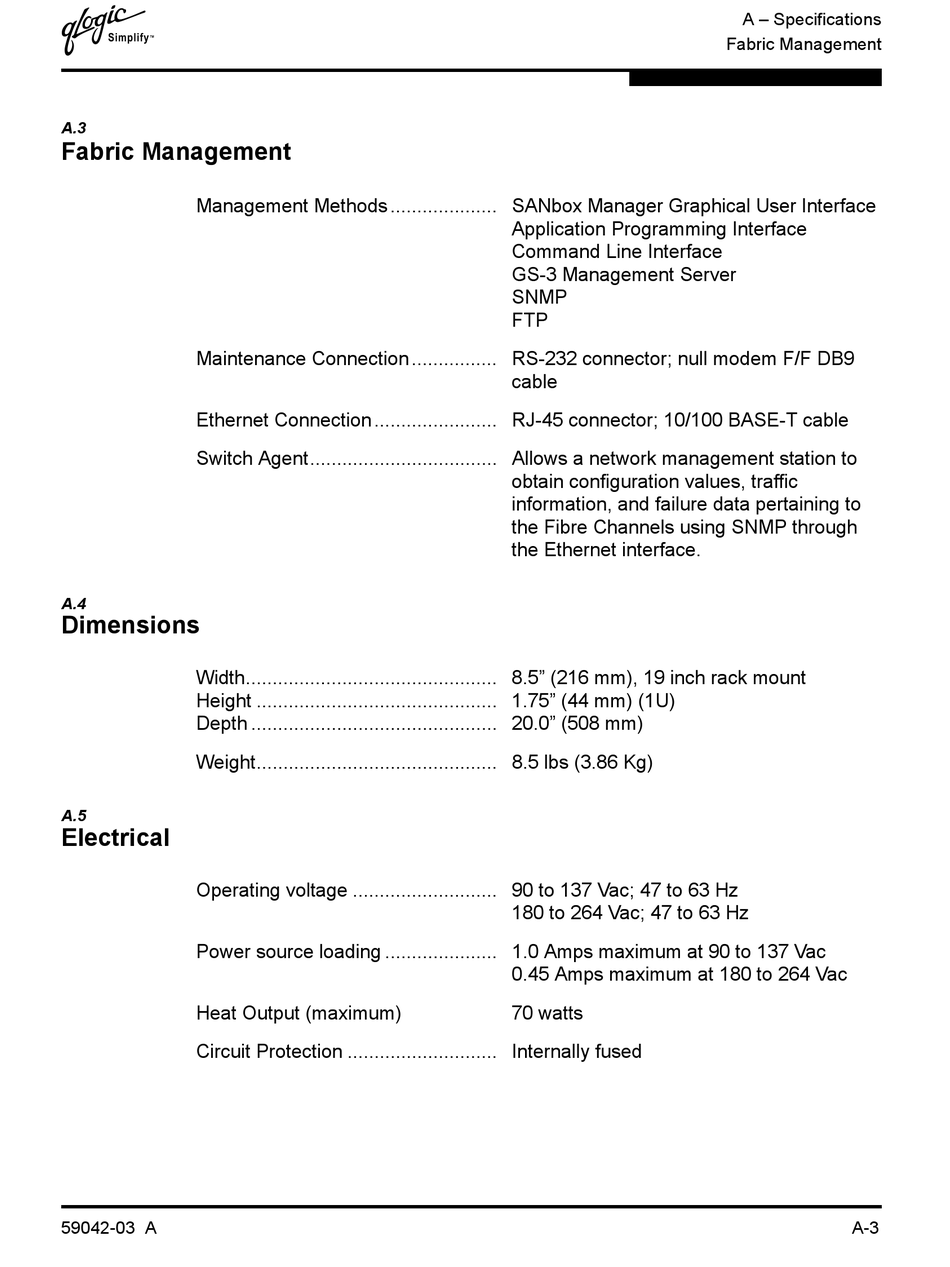

A.3
Fabric Management
Management Methods .................... SANbox Manager Graphical User Interface
Maintenance Connection ................ RS-232 connector; null modem F/F DB9
Ethernet Connection ....................... RJ-45 connector; 10/100 BASE-T cable
Switch Agent................................... Allows a network management station to
A.4
Dimensions
Width...............................................
Height .............................................
Depth ..............................................
Weight............................................. 8.5 lbs (3.86 Kg)
A.5
Electrical
Operating voltage ........................... 90 to 137 Vac; 47 to 63 Hz
Power source loading ..................... 1.0 Amps maximum at 90 to 137 Vac
Heat Output (maximum)
Circuit Protection ............................ Internally fused
59042-03 A
Application Programming Interface
Command Line Interface
GS-3 Management Server
SNMP
FTP
cable
obtain configuration values, traffic
information, and failure data pertaining to
the Fibre Channels using SNMP through
the Ethernet interface.
8.5" (216 mm), 19 inch rack mount
1.75" (44 mm) (1U)
20.0" (508 mm)
180 to 264 Vac; 47 to 63 Hz
0.45 Amps maximum at 180 to 264 Vac
70 watts
A – Specifications
Fabric Management
A-3
