A – Specifications

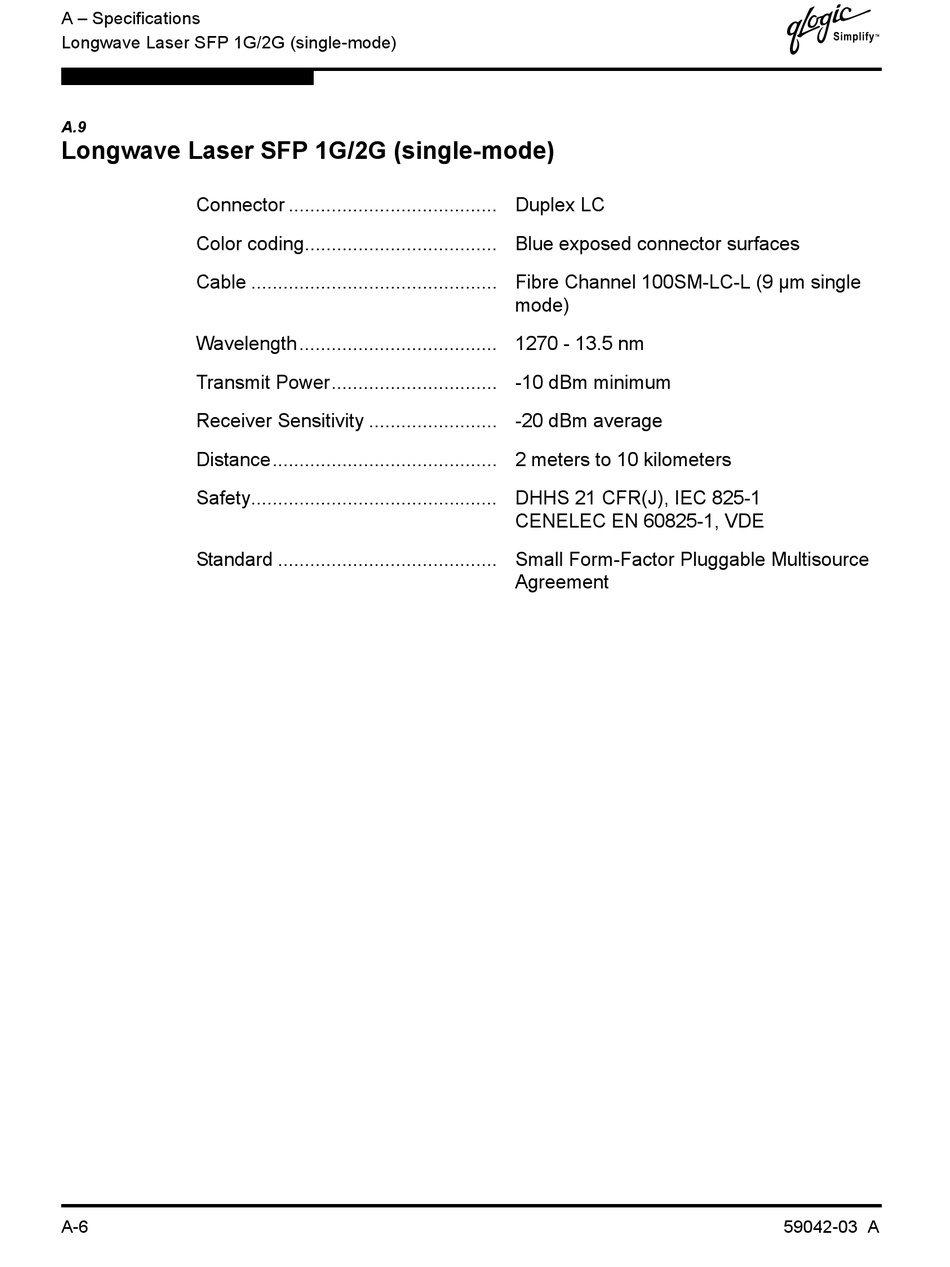

Longwave Laser SFP 1G/2G (single-mode)
A.9
Longwave Laser SFP 1G/2G (single-mode)
Connector ....................................... Duplex LC
Color coding.................................... Blue exposed connector surfaces
Cable .............................................. Fibre Channel 100SM-LC-L (9 µm single
Wavelength..................................... 1270 - 13.5 nm
Transmit Power............................... -10 dBm minimum
Receiver Sensitivity ........................ -20 dBm average
Distance.......................................... 2 meters to 10 kilometers
Safety.............................................. DHHS 21 CFR(J), IEC 825-1
Standard ......................................... Small Form-Factor Pluggable Multisource
A-6
mode)
CENELEC EN 60825-1, VDE
Agreement
D
59042-03 A
