To choose the events to display, press
6
Filters.
Select the events to display with the
7
check boxes. Press All to select all the
check boxes, or None to clear all the
check boxes.
Press Ok when finished.
8

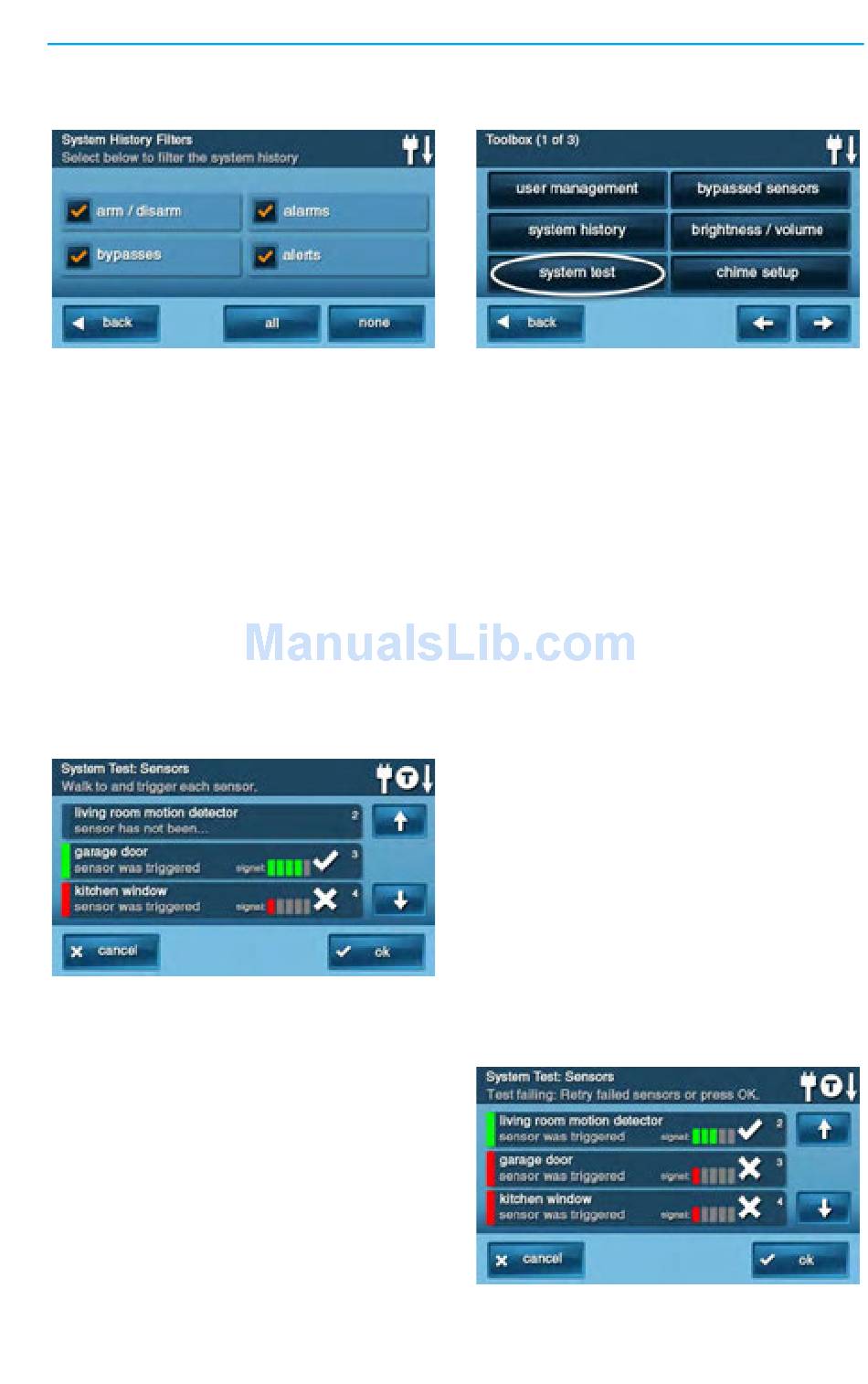

SYSTEM TEST

Even though your security system is self‐
monitoring, it is still important to regularly
test the system manually. The System Test is
used to test each of the sensors in the
system. The Master User Code is required to
test the system. While the system is in test
mode, a "T" icon blinks on the upper right of
the display.
IMPORTANT: Test your Security System
weekly to ensure continued protection
and proper system operation.
To test the system, do the following:
1
From the Home Screen, press Security.
2
From the Security Screen, press Menu.
3
From the Menu Screen, press Toolbox.
4
To access system test, enter the Master
5
User Code.
From the Toolbox Screen (1 of 3), press
6
System Test.

Sensor Test

When each sensor is tested, the Control
Panel does the following:
• Beeps and announces the sensor's name
• Green bar lights on the display by the
sensor name
• Signal bars light green to show the
strength of that sensor's wireless signal
NOTE: Start and stop test reports are sent to
the Central Station.
From the list of sensors, choose each
1
sensor (Use the ↑ and ↓ arrows to
scroll through the list).
Go to each sensor listed, and trigger it.
2
• For door or window sensors, open and
close the door or window.
• For motion detectors, stay out of the
protected area for five minutes, then
walk through the area.
• For portable sensors and wireless
keypads, press a button.
• For smoke, CO, or glass break detectors,
press the detector's test button.
TIP: When a red bar is displayed for a sensor,
it has failed.
