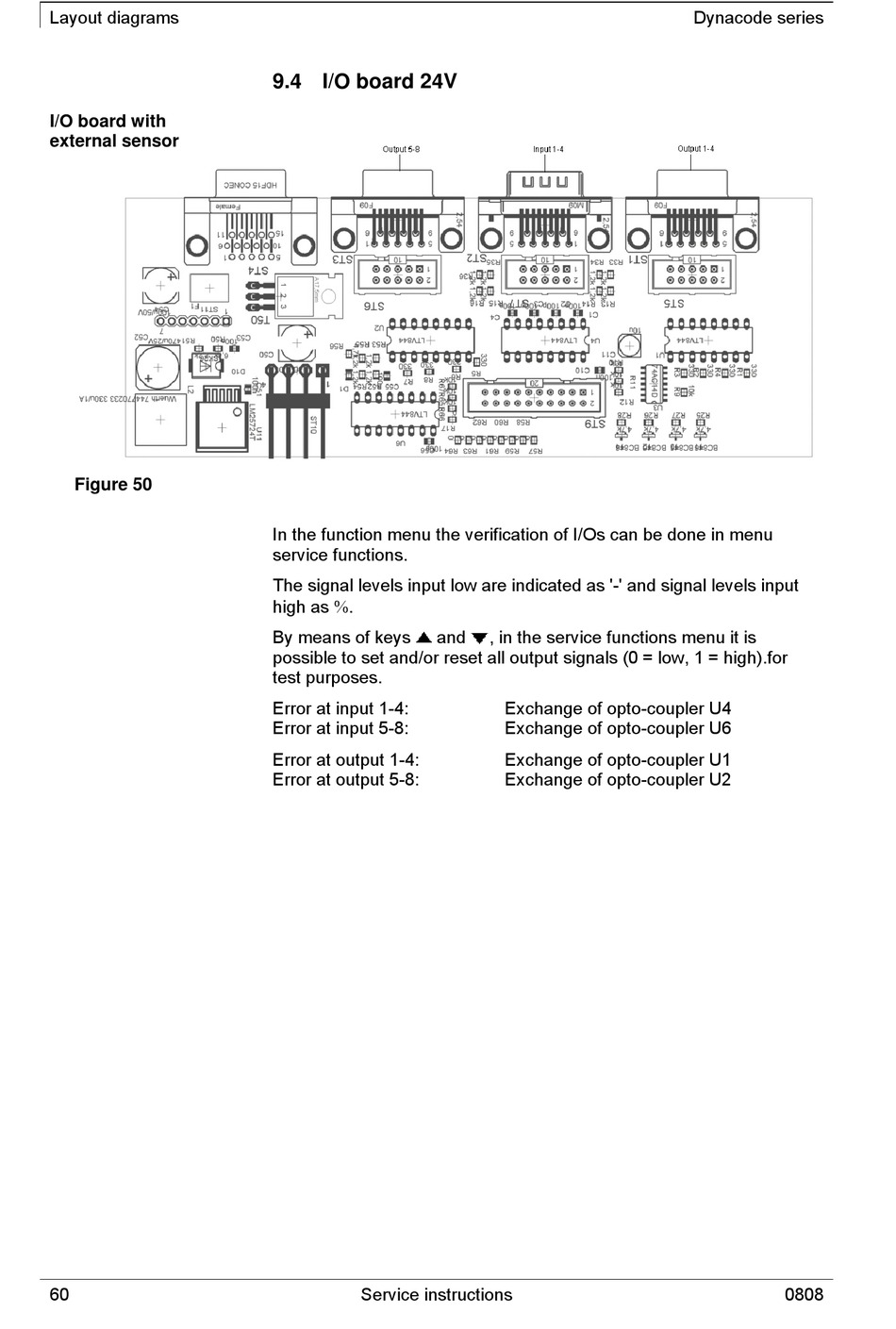

Layout diagrams
I/O board with
external sensor
Figure 50
60
9.4 I/O board 24V
In the function menu the verification of I/Os can be done in menu
service functions.
The signal levels input low are indicated as '-' and signal levels input
high as .
By means of keys
and
possible to set and/or reset all output signals (0 = low, 1 = high).for
test purposes.
Error at input 1-4:
Error at input 5-8:
Error at output 1-4:
Error at output 5-8:
Service instructions
, in the service functions menu it is
Exchange of opto-coupler U4
Exchange of opto-coupler U6
Exchange of opto-coupler U1
Exchange of opto-coupler U2
