Control inputs
Input I
Figure 36, B
Figure 40
Example
0808
By means of the control inputs it is possible to control printing. The
control inputs at Input I are galvanic separated and have to be
provided with an external tension source. The signal level is active
"HIGH".
PIN (pin)

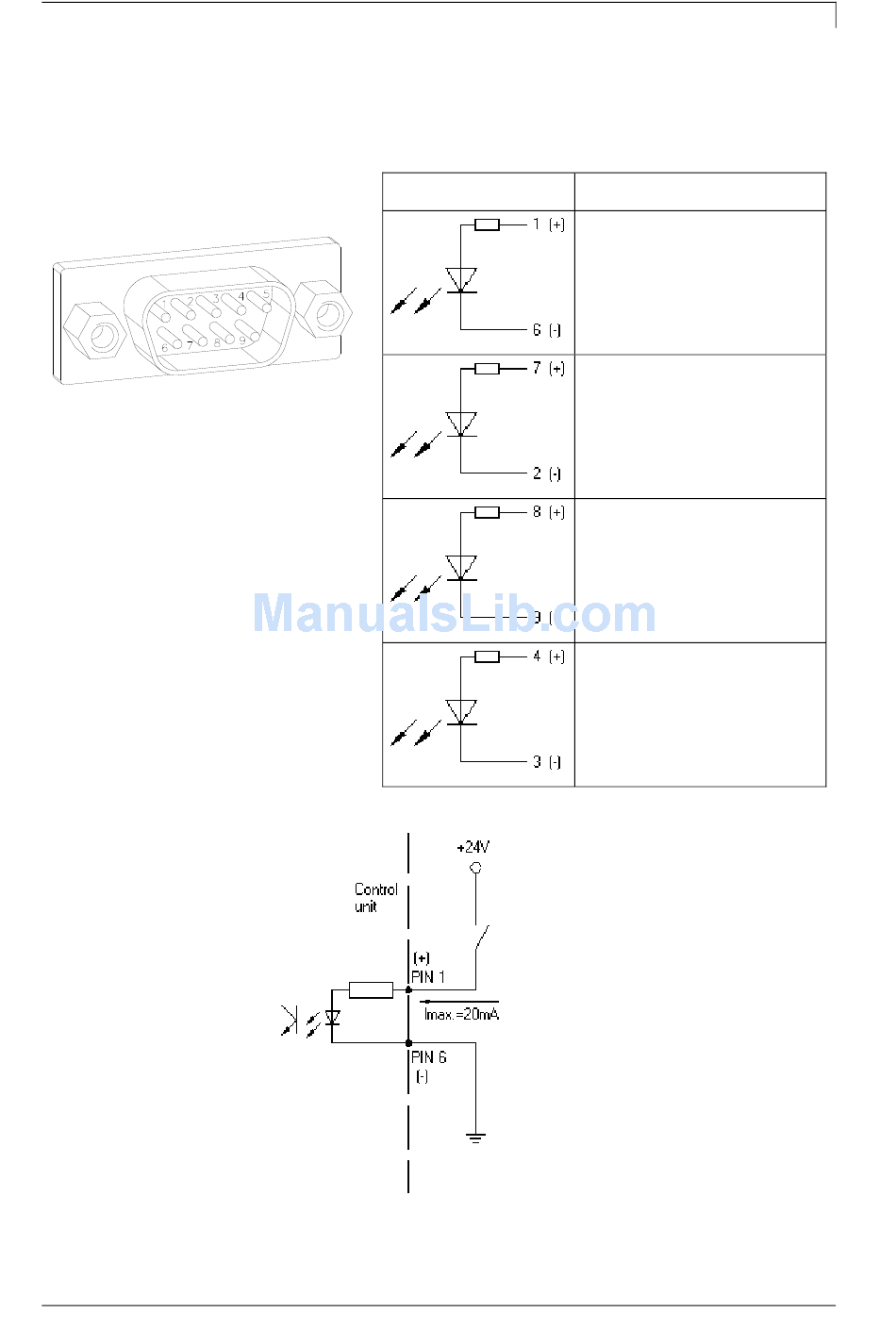

Connection of a switch with 24V voltage supply by In 1:
Figure 41
Service instructions
Control inputs and outputs
Input I
In 1: Print start
In 2: Not used
In 3: Reset external counter
In 4: Not used
49
