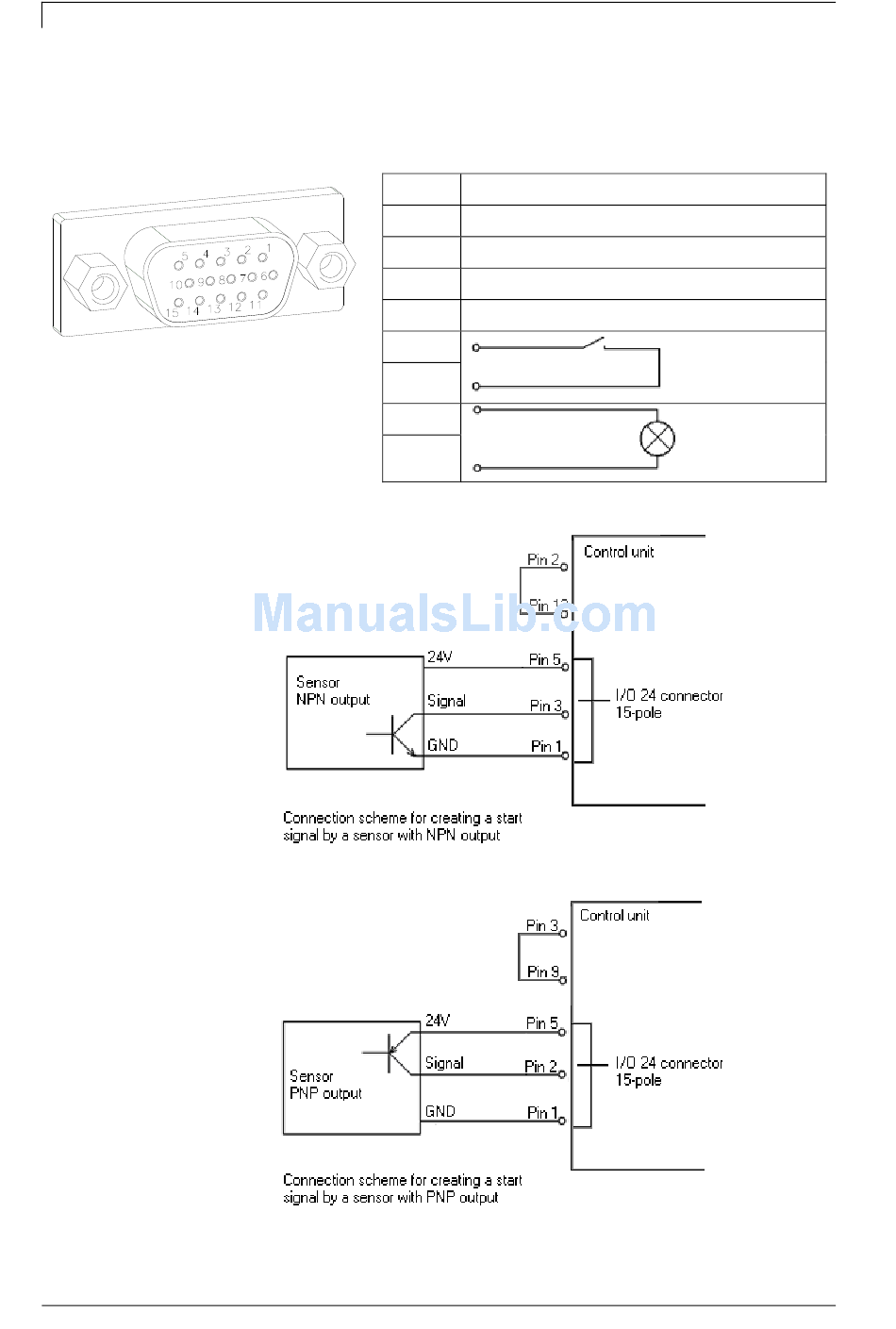

Control inputs and outputs
External bushing I/O-24
Figure 36, D
Figure 42
Example 1
Example 2
50
This input is executed as 15-pole and provides user-
sided 24V/100mA.
In case of using this bushing, exists no galvanic
separation.
PIN Function
1, 6 Gnd
5, 10 24 V / 100 mA
3 Print start (NPN initiator)
2 Print start (PNP initiator)
4
14
7
13
Service instructions
Dynacode series
Print start by
potential-free
contact
Signal lamp
24 V / 100 mA
(error)
