Mechanics
28
5.6 Replacing motor circuit board

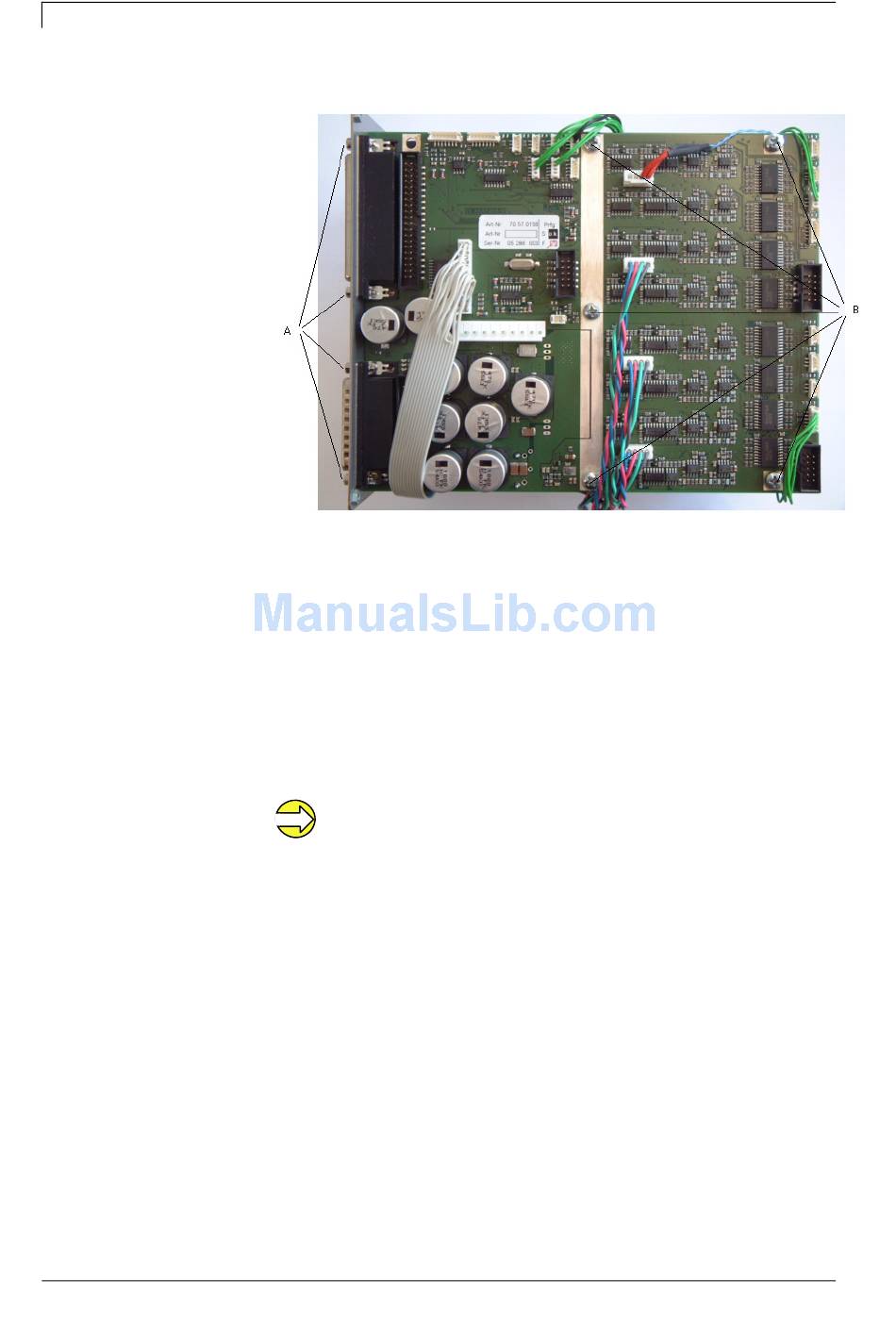

Figure 22
1. Remove rear-mounted mechanics cover after loosening the
collateral screws.
2. Unplug all wires at motor circuit board and remove the connecting
cables between control unit and print mechanics.
3. Lever the retaining screws (B).
4. Remove hexagon bolts (A) at connecting plugs.
5. Remove the motor circuit board.
6. The installation is to be effected in reverse order.
Use screw locking adhesive Loctite
bolts (A) against unintentional unscrewing.
Service instructions
Dynacode series
®
243™ to secure hexagon
0808
