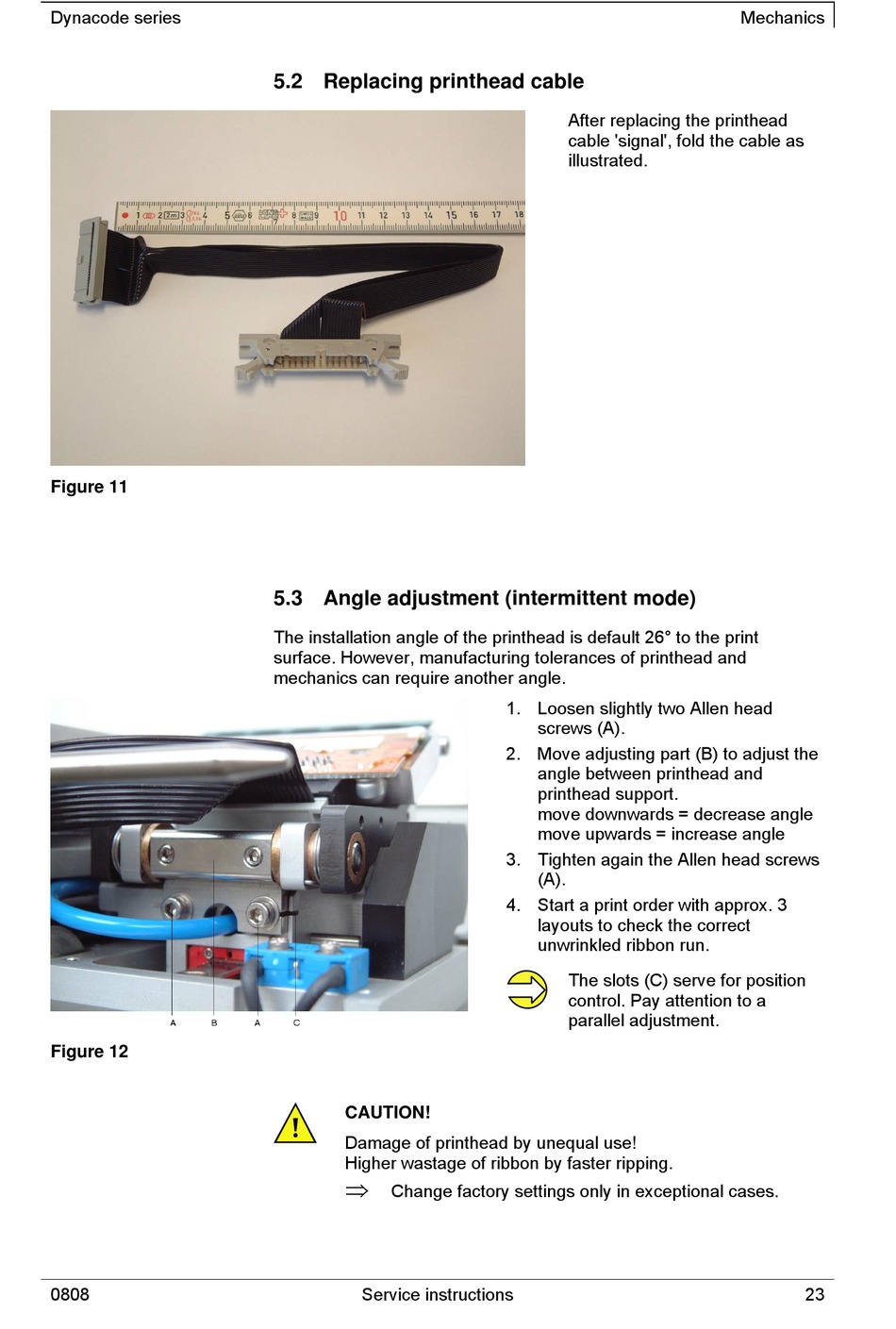

Figure 11
Figure 12
0808

5.2 Replacing printhead cable

5.3 Angle adjustment (intermittent mode)

The installation angle of the printhead is default 26° to the print
surface. However, manufacturing tolerances of printhead and
mechanics can require another angle.
CAUTION!
Damage of printhead by unequal use!
Higher wastage of ribbon by faster ripping.

Change factory settings only in exceptional cases.
Service instructions
After replacing the printhead
cable 'signal', fold the cable as
illustrated.
1. Loosen slightly two Allen head
screws (A).
2. Move adjusting part (B) to adjust the
angle between printhead and
printhead support.
move downwards = decrease angle
move upwards = increase angle
3. Tighten again the Allen head screws
(A).
4. Start a print order with approx. 3
layouts to check the correct
unwrinkled ribbon run.
The slots (C) serve for position
control. Pay attention to a
parallel adjustment.
