Mechanics

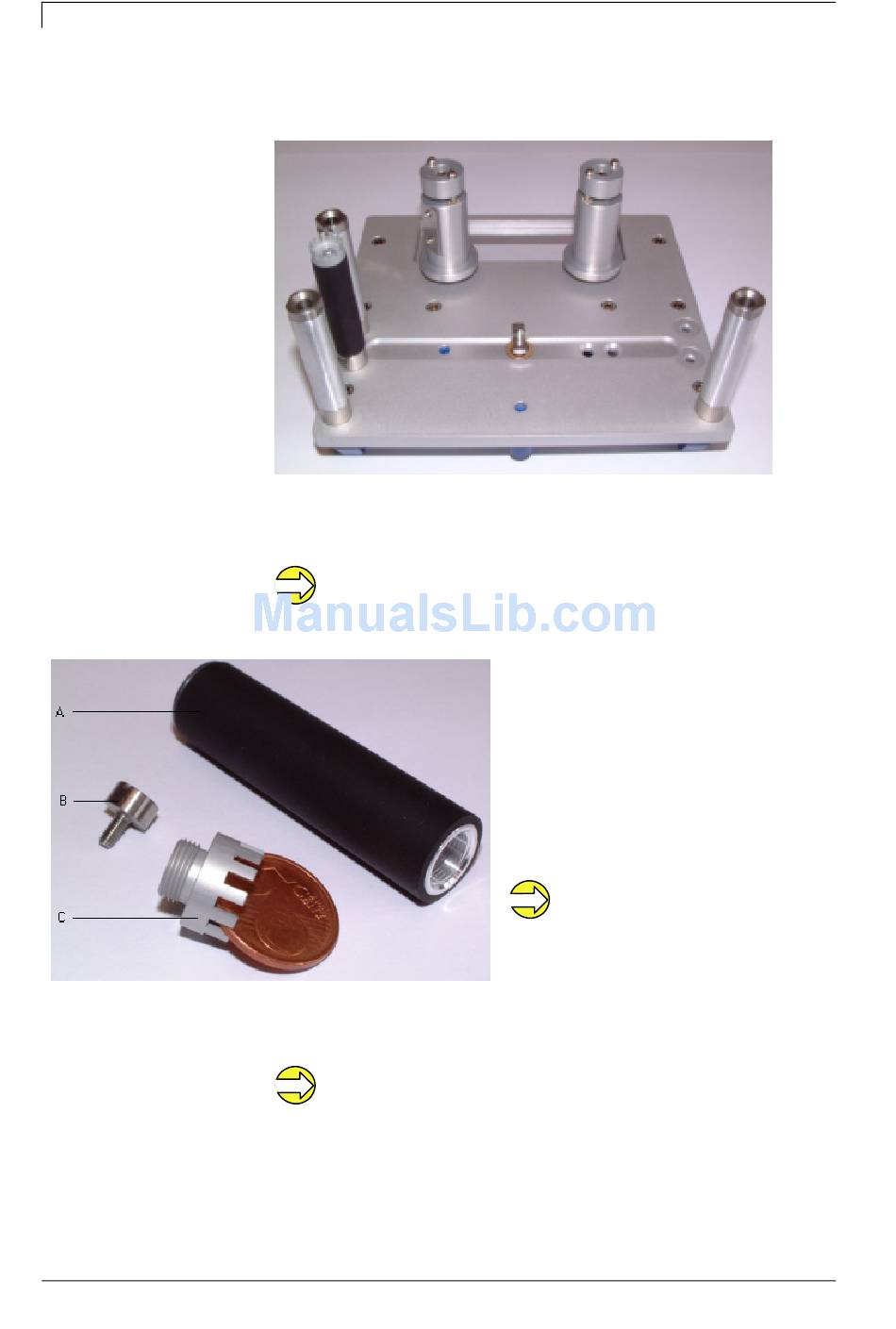

View of cassette
Replacing track roller
Figure 14
24

5.4 Replacing parties at cassette

Figure 13
The track roller can also be removed without previous
loosening of roll. For this purpose use a screw driver with
max. diameter of 5 mm and remove the screw.
Use screw locking adhesive Loctite
(B) against unintentional unscrewing.
Service instructions
1. Turn off roll (C) from track roller (A).
For this purpose you can use a 5 cent
piece or another utility.
2. Remove screw (B).
3. Remove track roller (A) from support
pillar.
4. The installation of all components is to
be effected in reverse order.
The sliding supports of track roller
are destined for unlubricated
operation and therefore are not to
be oiled.
However, a one-time lubrication at
installation improves the infeed
manner.
®
243™ to secure screw
Dynacode series
0808
