Electronics

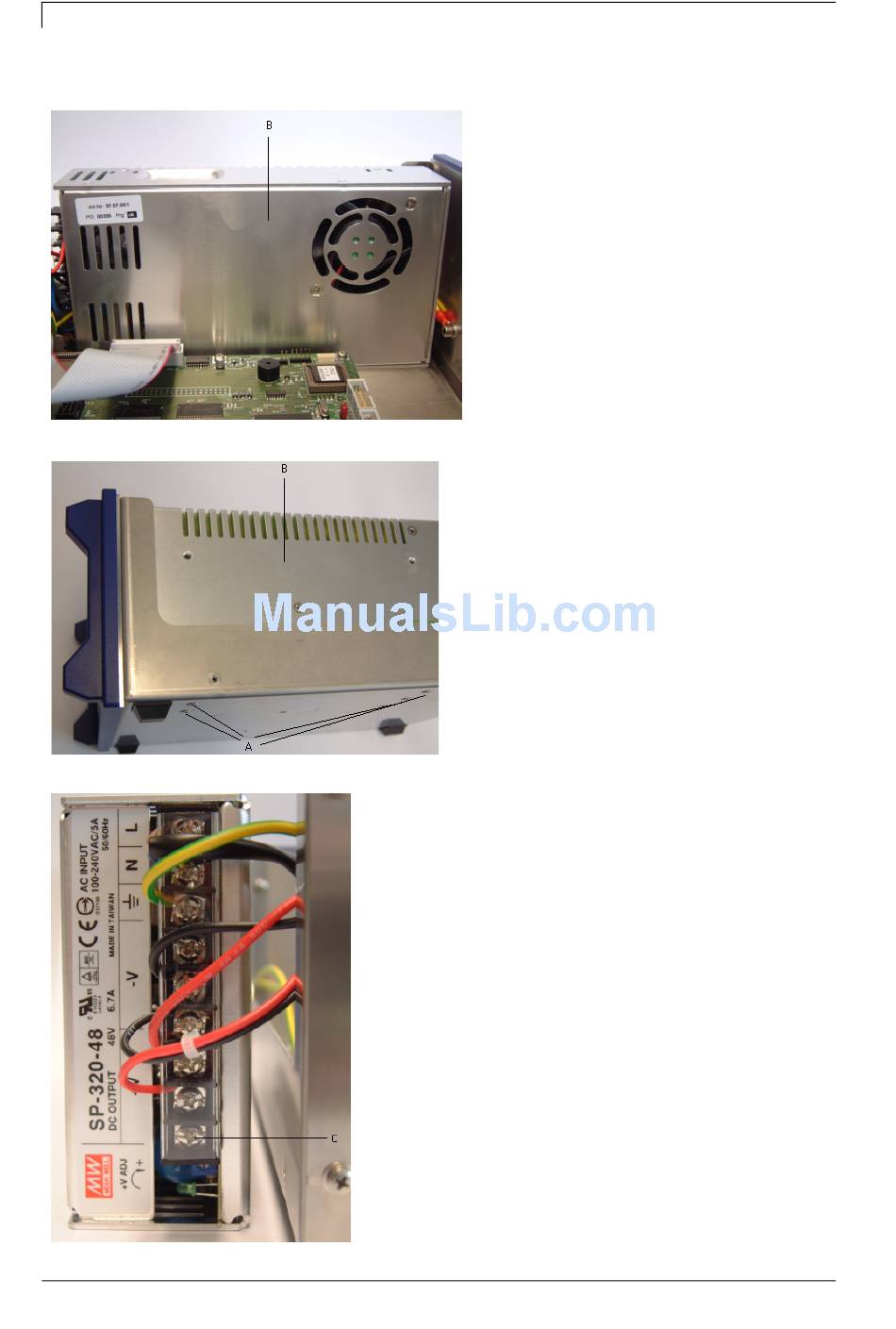

Figure 6
Figure 7
Figure 8
18
4.5 Replacing power supply unit
Service instructions
1. Remove cover of control unit.
2. Unscrew retaining screws (A) of power
supply unit (B) from electronics
underside.
At the same time hold power supply
unit.
3. Deposit power supply unit next to the
control unit (see photo).
4. Remove transparent cover above the
clamps (C).
5. Loosen clamps (C) and remove all
wires.
6. Insert again the power supply unit in
reverse order. At the same time see the
correct cable assignment at the
clamps!
Dynacode series
0808
