4.6 Replacing Compact Flash card slot

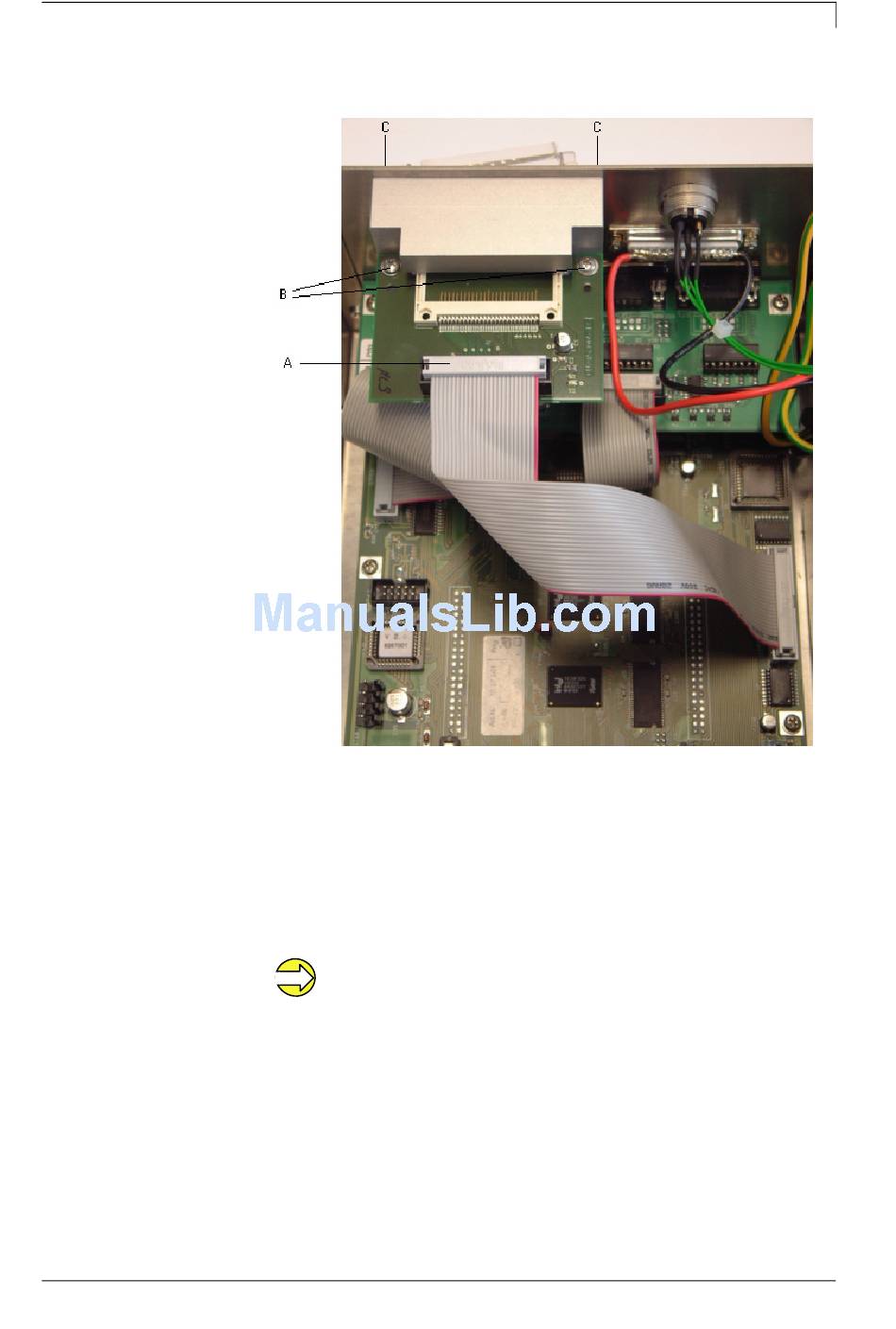

Figure 9
1. Remove cover of control unit.
2. Unplug connecting cable to CPU at slot (A).
3. Unscrew retaining screws (B) at fastener.
4. Remove defective slot.
5. Install a new slot in reverse order.
For damages at the transparent cover, the slot must be
dismantled with fastener. For that purpose, remove 4
retaining screws (C) at rear panel.
Service instructions
Electronics
19
