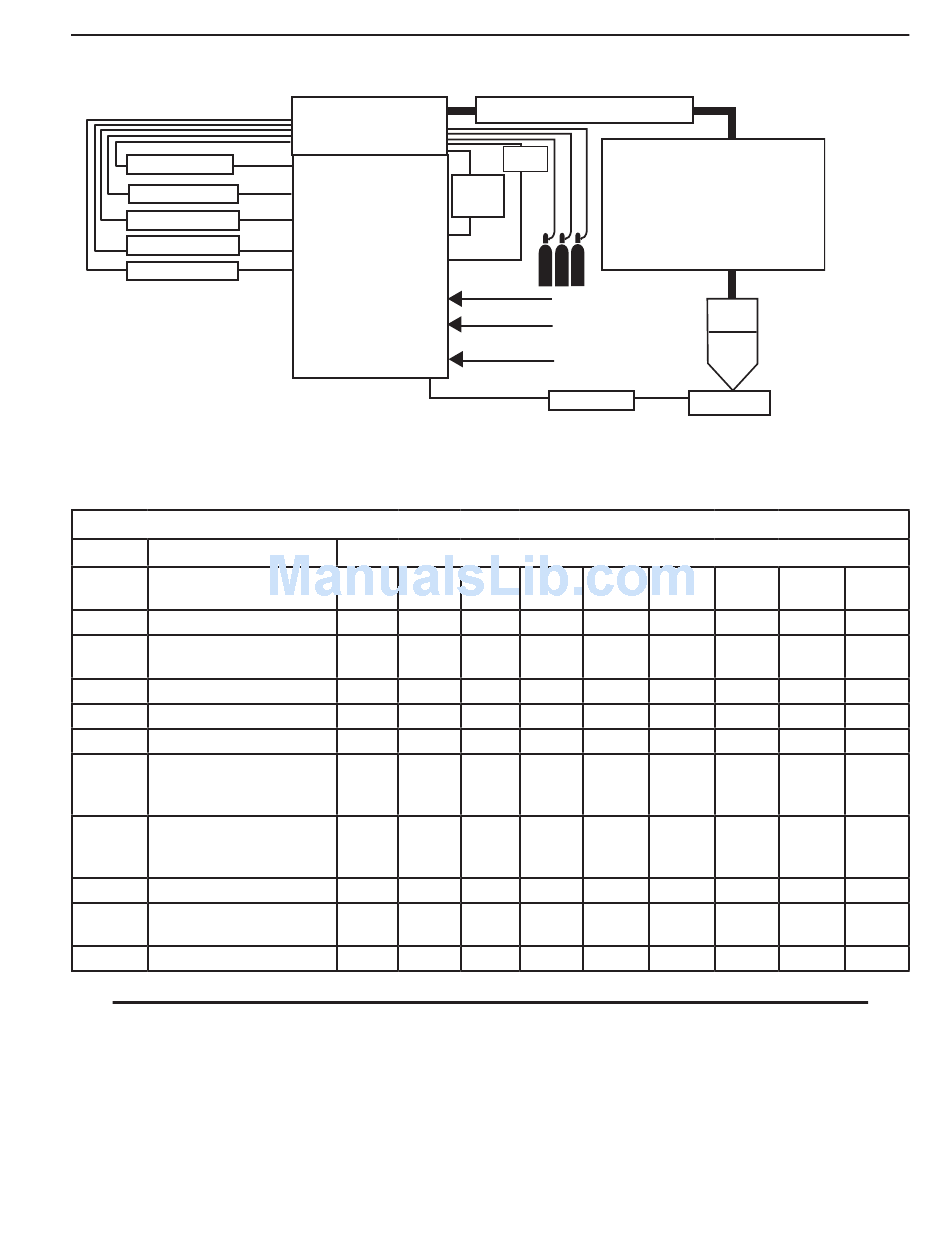

6.03 Leads and Cables

Pilot Return
Negative
Coolant Supply
Coolant Return

Control Cable

Leads Catalog Numbers; PAK 200 Power Supply, PCH/M 200 Torch
Key Description
A,B,C,D,E Supply Lead Set
A Pilot Return Cable (only)
(4 ft / 1.2 m)
B Negative Cable (only)
C Hose, Coolant Supply (only)
D Hose, Coolant Return (only)
E Control Cable (only),
Power Supply
to Arc Starter (4 ft / 1.2 m)
F Ground Wire (only), Power
Supply to Gas Control
Module, 4 ft / 1.2 m
G Torch Lead Assembly
K Control Cable, Power Supply
to Gas Control Module
O Work Cable w/Clamp
Supply lead set includes Pilot Return Cable, Negative Cable, Coolant Supply & Return Hoses, and
Control Cable.
Manual 0-5057
Arc Starter /
Maximum Length 100' / 30.5 m
Gas Control Module
(GCM-200)
Control
Cable
PAK 200
Power Supply
Primary power
Primary Ground
3 ft 10 ft 15 ft
1 m 3.05 m 4.5 m
4-3027
9-4890
9-4892
9-4886
9-4888
9-4941
9-4923
9-9331
NOTE
6-3
Torch Lead Set
Ground
Cable
- Coolant Supply w/ Negative
- Coolant Return
- Pilot Return
- Plasma Gas
- Shield Gas
- Control Cable
Work Cable
Leads Length
25 ft 35 ft 50 ft
7.6 m 10.6 m 15.2 m
4-0014 4.0015
9-0020
PAK 200
Torch
Work
Art # A-08376_AB
75 ft 100 ft 125 ft
22.8 m 30.5 m 38.1 m
4-0016

PARTS LIST
