3.12 Complete the Installation

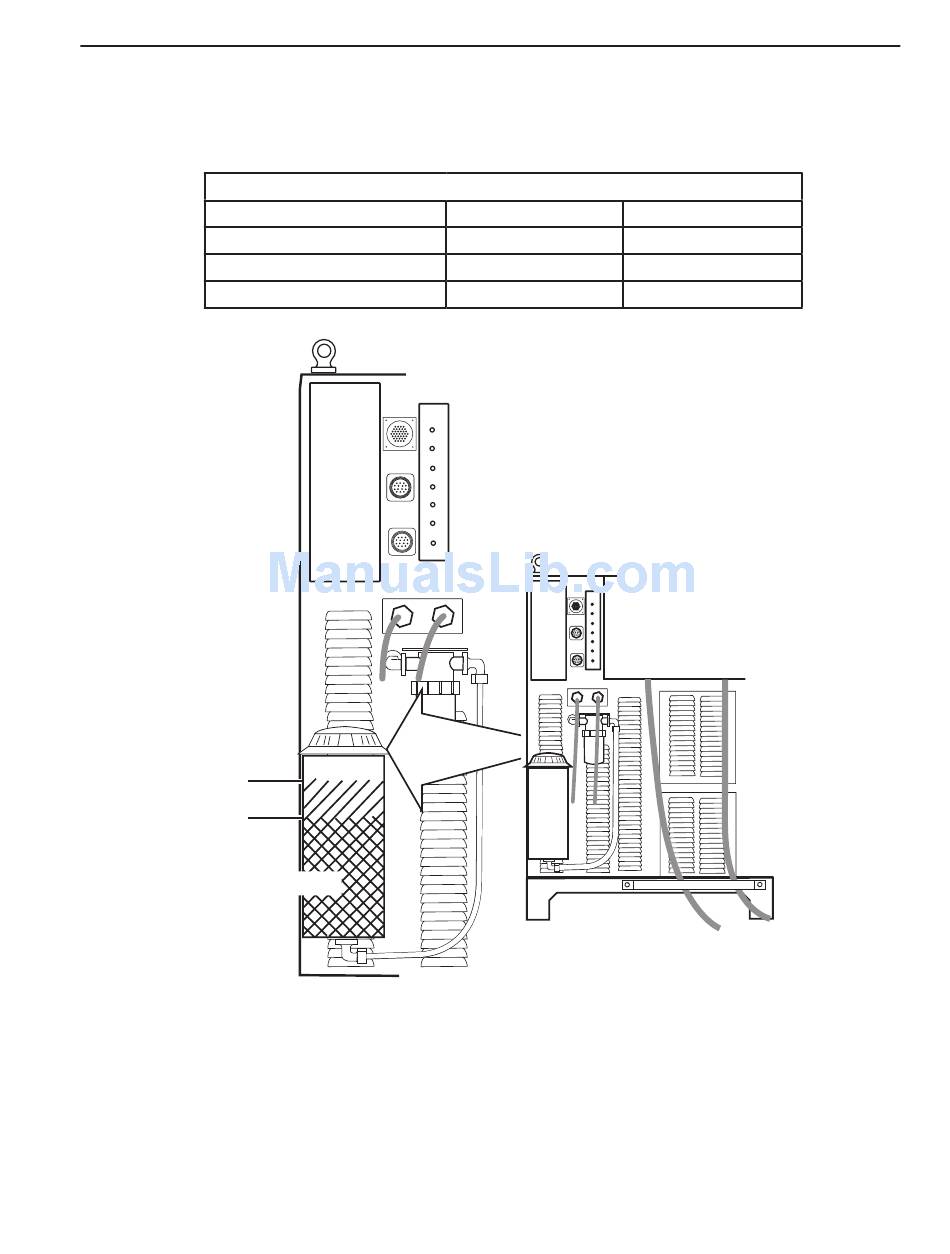

1. Fill the coolant tank to the level shown, with Thermal Dynamics coolant. The coolant level is visible through
the translucent coolant tank. The amount of coolant required varies with torch leads length.
2. Replace the cap on the tank.
Cat. Number and Mixture
7-3580 'Extra-CoolTM'
7-3581 'Ultra-CoolTM'
7-3582 'Extreme-CoolTM'
Fill Range
Coolant Tank
3. After the complete system has been installed, check that the coolant has been pumped through the system as
follows (see NOTE):
Manual 0-5057
Coolant Capabiities
Mixture
25 / 75
50 / 50
Concentrat*
COOLANT
RETURN SUPPLY
3-17
Protects To
10° F / -12° C
27° F / -33° C
-65° F / -51° C
RETURN
SUPPLY
