PAK 200

3.06 Connect Work Cable

1. Pass the end of the work cable upward through the leads bracket at the bottom of the power supply rear panel,
then up through the opening in the connections cover support panel.
2. Refer to the illustration. Connect the lead as shown. Tighten securely. Do not overtighten.
Ensure that lead attachment hardware is properly sized. Excess length may cause damage if hardware
contacts other parts of the system.
The clear connections cover must remain in place.

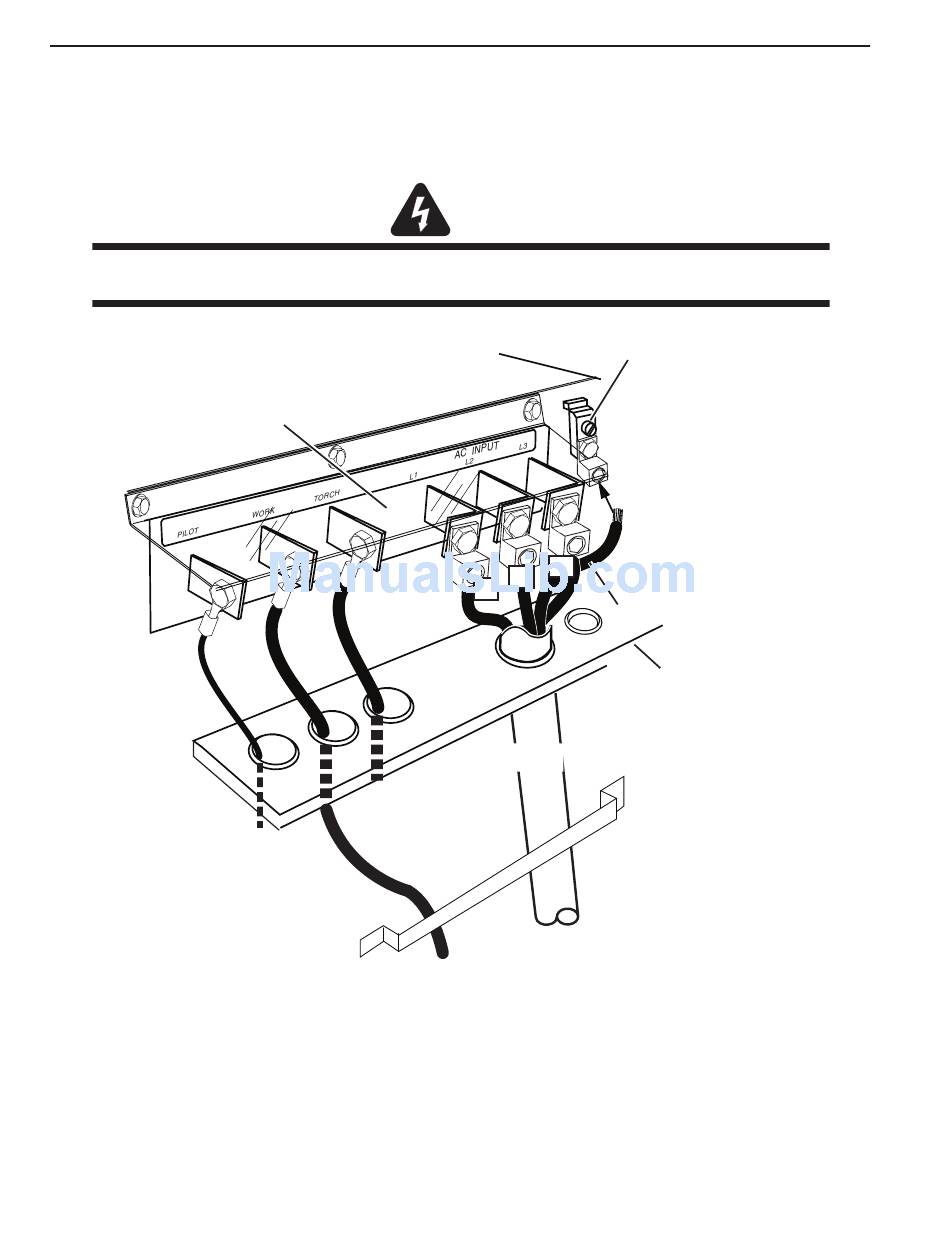

Connection Panel
Art # A-08501
INSTALLATION
Connections Cover
WARNING
Ground Terminal Block
L3
L2
L1
Input power cable ground
Input power cable
3-8
Connections Cover
Support Panel
Leads Bracket
Manual 0-5057
