PAK 200

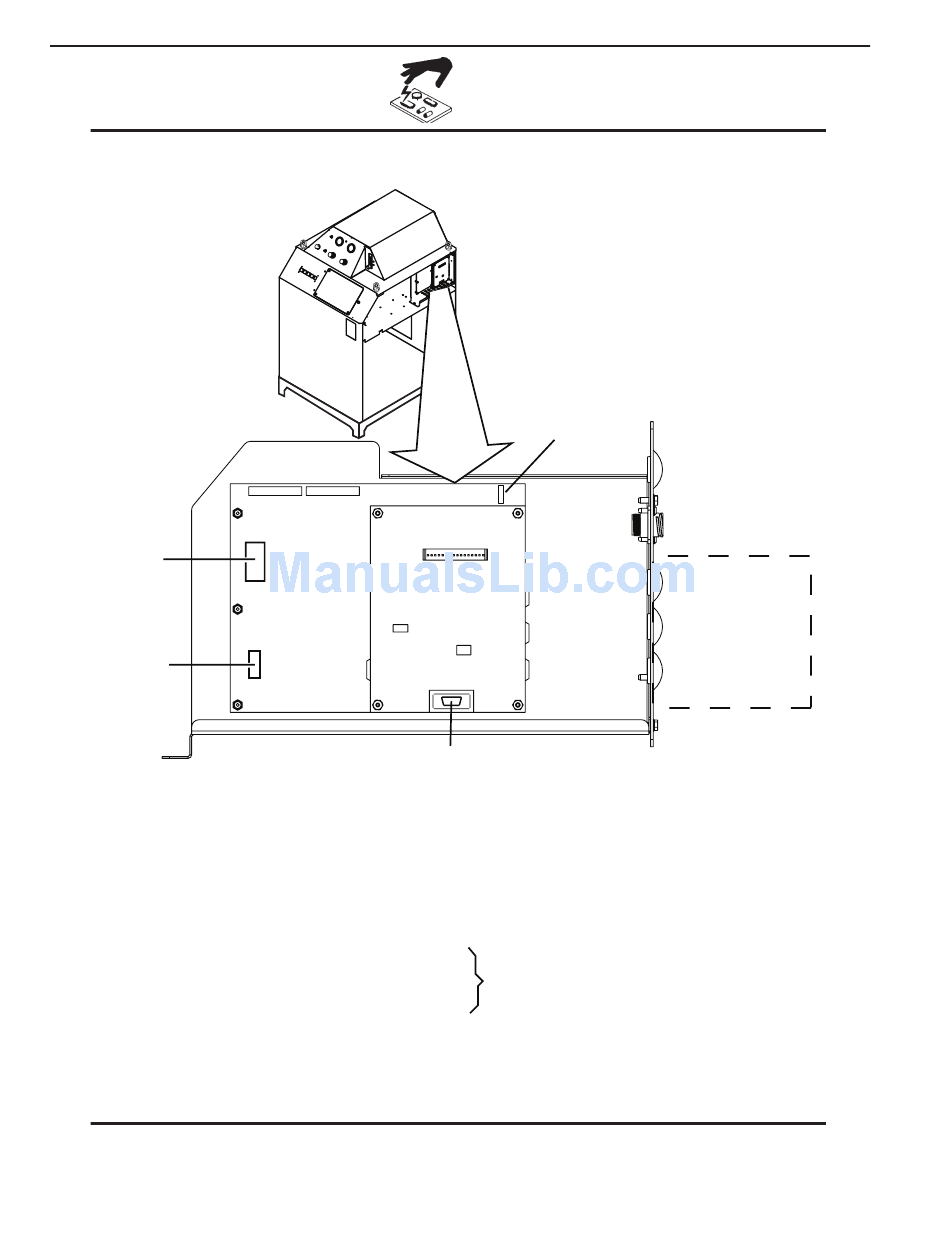

Printed circuit boards in the Command - Control Module are static - sensitive. Discharge any built-up
static charges in your body or surroundings before touching the printed circuit boards.
SW6
SW12
SW-6: OK-to-Move:
SW-11: Analog Current Control.
SW-12-1/2/3/4:
SW13-1: 1 = OFF
SW13-2: 1 = ON
Standoff Control SC-11 requires Switch 12-1 set to
INSTALLATION
Contact closure, 120VAC @ 1A (Factory default setting) or
DC Volts (16-18vdc@ up to 100 ma.)
B = from Gas Control (Factory default setting) or A = from CNC.
Position A requires that SW-8-2 be ON.
Divided Arc signal All = OFF = 50:1 (Factory default setting)
1 = ON = 16.6:1
2 = ON = 30:1
3 = ON = 40:1
4 = Not used.
CAUTION
SW11
SW13
Only 1 on at a time.
NOTE
3-12
No external
connection cover
Art # A-08502
Manual 0-5057
