3.11 Torch Parts Selection

Depending on the type of operation to be done (standoff cutting, drag cutting or gouging) determines the torch
parts to be used.
Torch parts:
Shield Cup, Cutting Tip, Electrode, Gas Distributor, and Cooling Tube (Cooling Tube for Gouging Only).

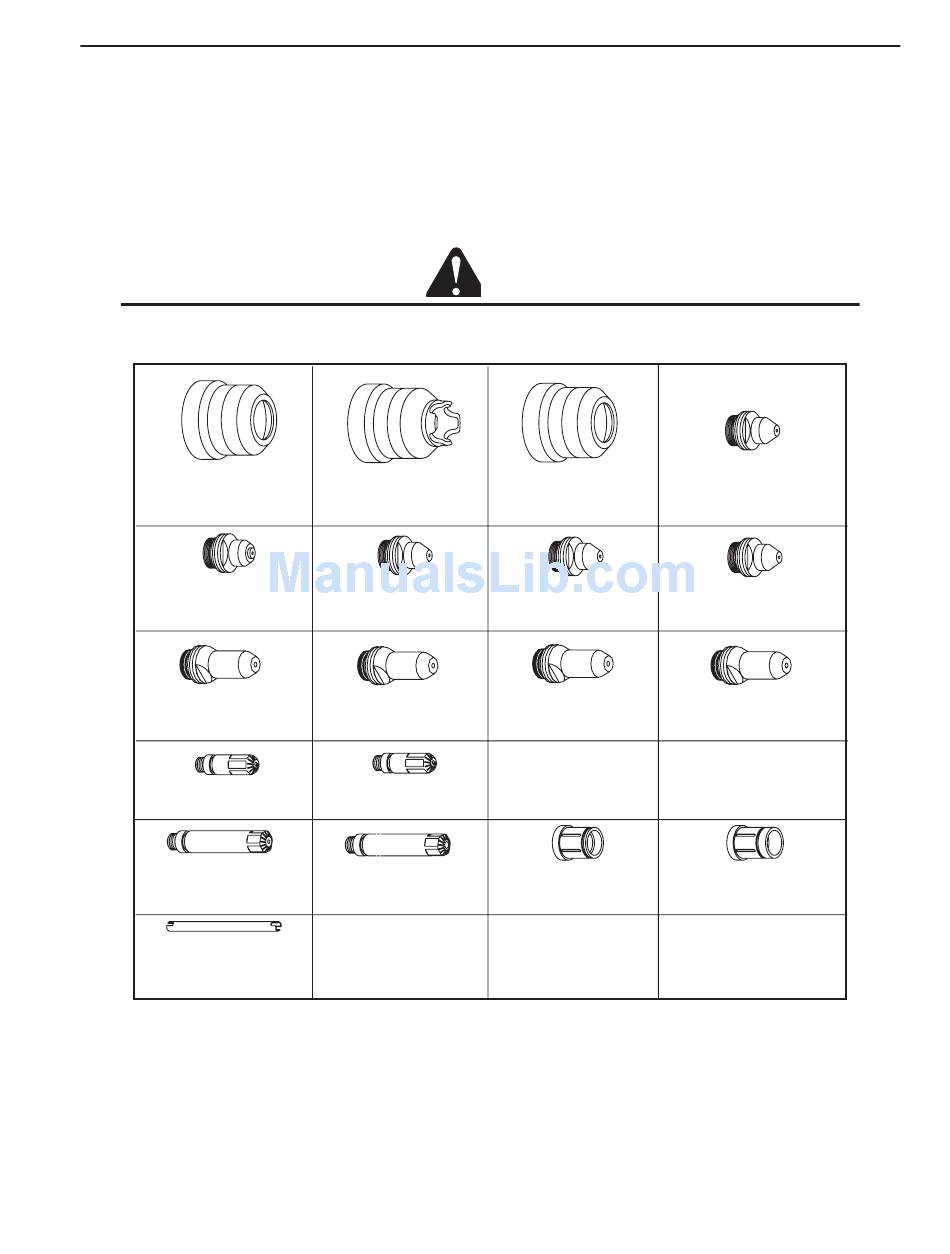

Refer to Figure below for the various torch parts.
Do not interchange parts. Make sure both the tip and electrode in the torch correspond with the plasma
and secondary in use and the type of operation (cutting or gouging).
Short Shield Cup
Standoff Cutting Only
Catalog No. 32-1325
Cutting Tip Air/N2/AR-H2
0.031" Orifice, 35 amps
Catalog No. 32-1320
Gouging Tip Air/N2/Ar-H2
0.110" Orifice
Catalog No. 32-1512
Cutting Electrode Air/N2
Catalog No. 32-1310
Gouging Electrode
Air/N2
Catalog No.32-1504
Coolant Tube Extension
(Gouging)
3.35" (85 mm) Length
Cat No. 32-1502
Manual 0-5057
CAUTION
Crown Shield Cup
Standoff Cutting Only
Catalog No.32-1326
Cutting Tip Air/N2/AR-H2
Cutting Tip Air/N2/AR-H2
0.047" Orifice, 70 amps
Catalog No. 32-1321
Gouging Tip Air/N2/Ar-H2 Gouging Tip Air/N2/Ar-H2
0.125" Orifice
Catalog No. 32-1513
Cutting Electrode N2, Ar-H2
Catalog No. 32-1311
Gouging Electrode,
N2/Ar-H2
Catalog No. 32-1505
3-15
Gouging Shield Cup
Cutting Tip Air/N2/AR-H2
Gouging Only
0.073" orifice 200 amps
Catalog No. 32-1527
Cutting Tip Air/N2/AR-H2
0.063" Orifice, 120 amps 0.070" orifice150 amps
Catalog No. 32-1322
Gouging Tip Air/N2/Ar-H2
0.156" Orifice
Catalog No. 32-1514
Gas Distributor - Cutting
0.712" (18 mm) Length
Cat. No. 32-1315
PAK 200
Catalog No. 32-1323
Catalog No. 32-1330
0.171" Orifice
Catalog No. 32-1515
Gas Distributor - Gouging
0.912" (23 mm) Length
Cat. No. 32-1509
A-08385
