3.09 Set Switches for Command-Control Module

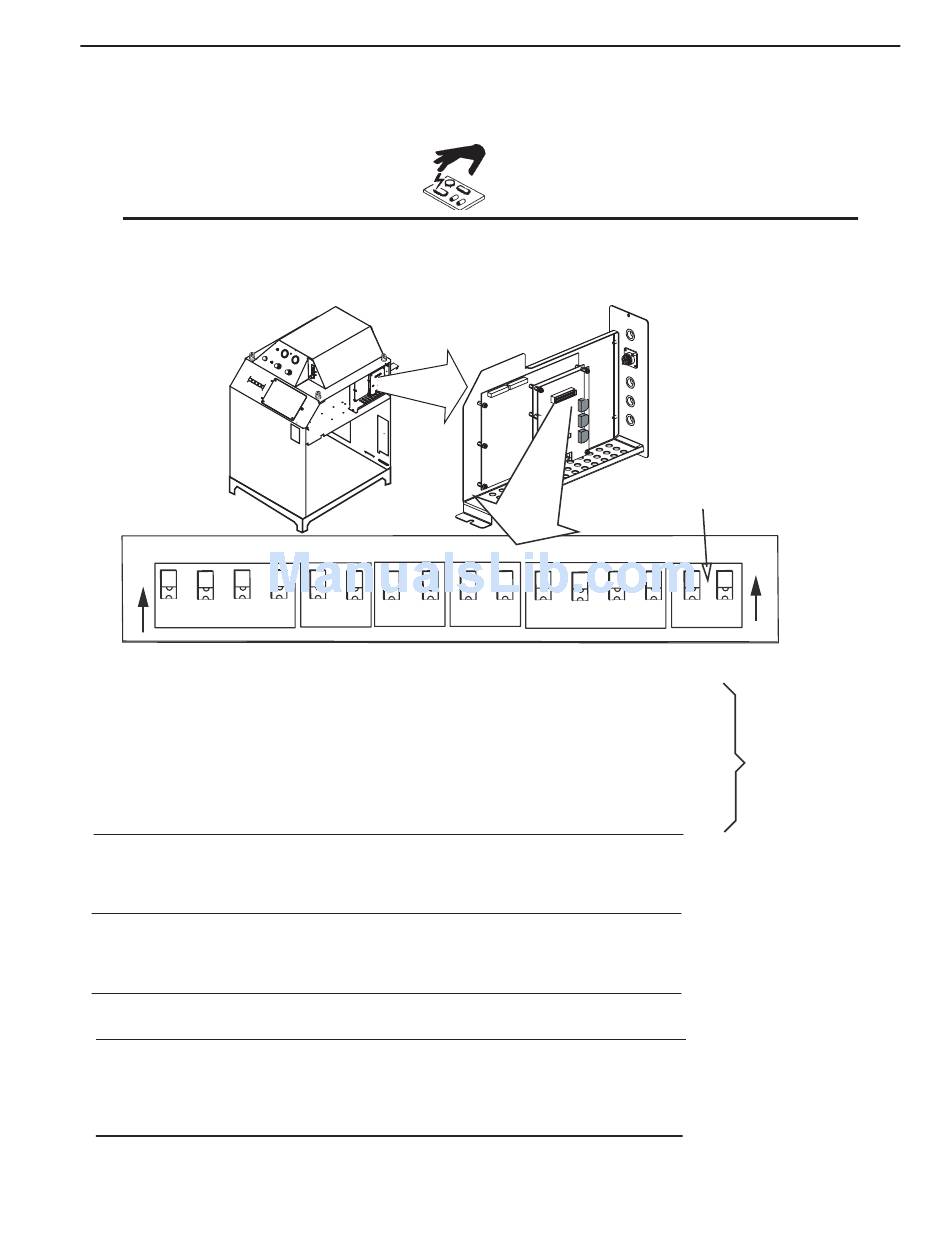

Remove the power supply right side. Set switches on the CCM (Command-Control Module) per the illustrations.
Switch settings and connection details are provided in the Appendix.
Printed circuit boards in the Command - Control Module are static - sensitive. Discharge any built-up
static charges in you body or surroundings before touching the printed circuit boards.
SW1
O
N
1 2 3
S W-1-1: Auto Pilot Restart. 1 = ON = Auto Pilot Function enabled. (Factory default setting).
SW-1-2: Pilot Delay
SW-1-3: Pilot Delay
SW-1-4: Pilot Delay
SW-3: Gas Preflow Time
SW-4: Postflow Time
SW-5-1: Tip Saver
SW-5-2: Off Plate
SW 8-1: Pilot Time
SW 8-2: Remote Current
SW 8-3, SW8-4:
Manual 0-5057
SW3 SW4
4 1 2
1 2
1 = OFF = Auto Pilot Function disabled
2 = OFF, 3 = OFF, 4 = OFF: 0 Seconds (Factory default setting).
2 = ON, 3 = OFF, 4 = OFF: 0.1 Seconds
2 = OFF, 3 = ON, 4 = OFF: 0.2 Seconds
2 = ON, 3 = ON, 4 = OFF: 0.4 Seconds
2 = OFF, 3 = OFF, 4 = ON:
2 = ON, 3 = OFF, 4 = ON:
2 = OFF, 3 = ON, 4 = ON:
2 = ON, 3 = ON, 4 = ON:
1 = OFF, 2 = OFF: 2 seconds
1 = ON, 2 = OFF: 4 seconds
1 = OFF, 2 = ON: 6 seconds
1 = ON, 2 = ON: 8 seconds
1 = OFF, 2 = OFF: 10 Seconds (Factory default setting).
1 = ON, 2 = OFF: 20 Seconds
1 = OFF, 2 = ON: 5 Seconds
1 = ON, 2 = ON: 0 Seconds
SW5-1 not used, Tip Saver always on.
Reserved for Factory use.
1 = ON = Short (85 ms.)
1 = ON = Long (3 s.)
2 = OFF = Front panel current control (Factory default setting).
2 = ON = (Remote Analog Current Control) See also SW11
Reserved for Factory use.
CAUTION
SW5 SW8
1 2 3
1 2
0.8 Seconds
1.0 Seconds
1.5 Seconds
2.0 Seconds
(Factory default setting).
3-11
PAK 200
Future Use
O
N
4
1 2
Active only when
SW-1-1 is set to O N.
