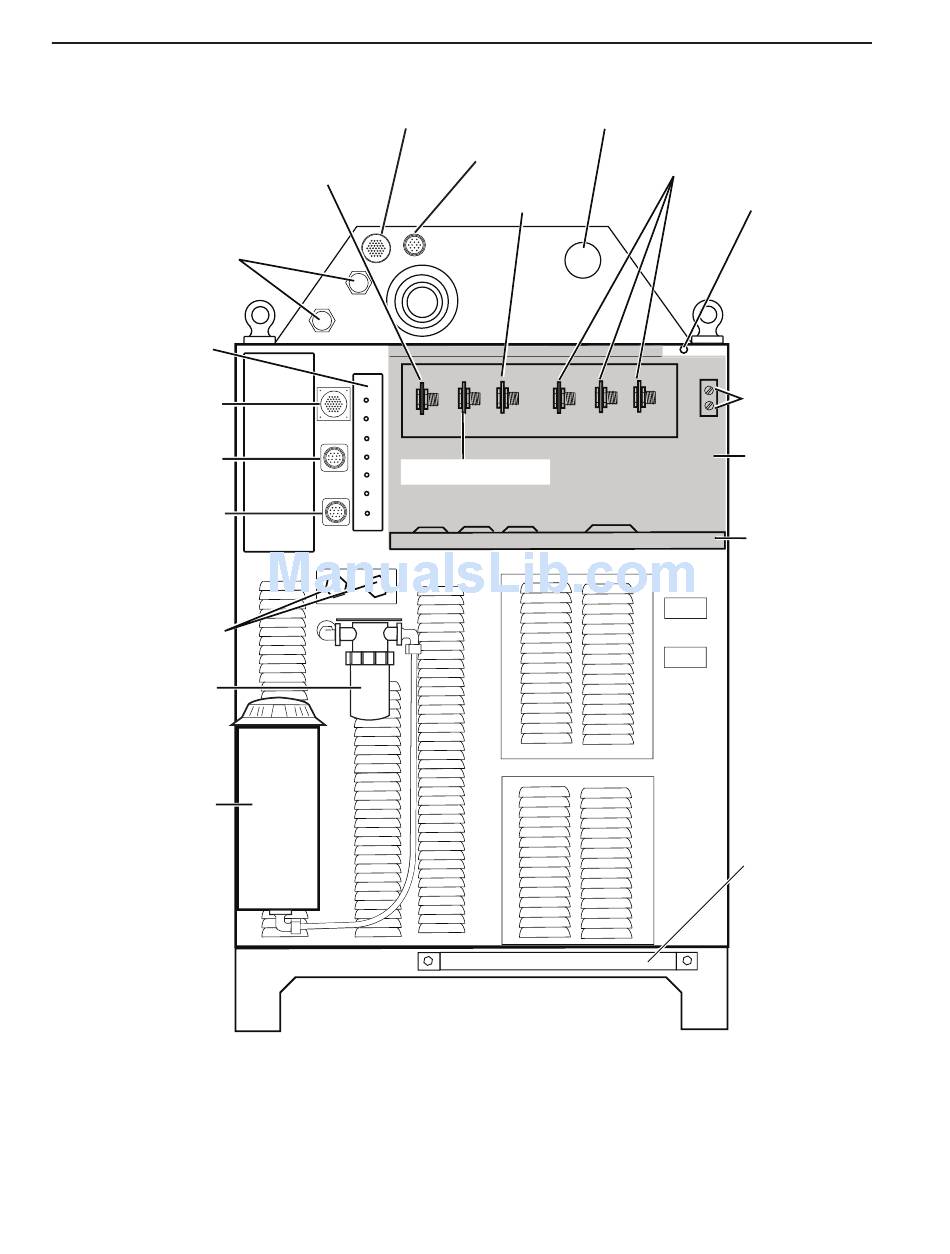

2.08 Power Supply Rear Panel Features

Gas Entry Ports
Circuit Breaker Panel
Gas Control Connector
Torch Control Connection
Arc Starter Connector
Coolant Connections
Coolant Filter
Coolant Tank
SPECIFICATIONS
Gas Control Connector
Arc Starter
Connector
Pilot (Pos)
Terminal
Work Cable Terminal
RETURN
SUPPLY
2-4
Torch Leads Port
Input Power
Terminals
Torch (Neg)
Terminal
Art # A-08378
AC Power Lamp
Ground Terminals
Terminal Cover
Terminal Cover
Support Panel
Leads
Bracket
Manual 0-5057
