3 Connect the modem to the inverter through the RS232 connector,
which is the nine-pin connector on the bottom of the inverter. There is
no need to open the inverter cover.
To verify the connection, you may refer to the Verifying the Connection
section on page 59.
Creating an Ethernet (LAN)
Connection
This communication option enables you to use an Ethernet connection to
connect the inverter to a LAN.
SolarEdge Inverter
ZigBee RS485 RS232 Ethernet
Single Inverter Connected

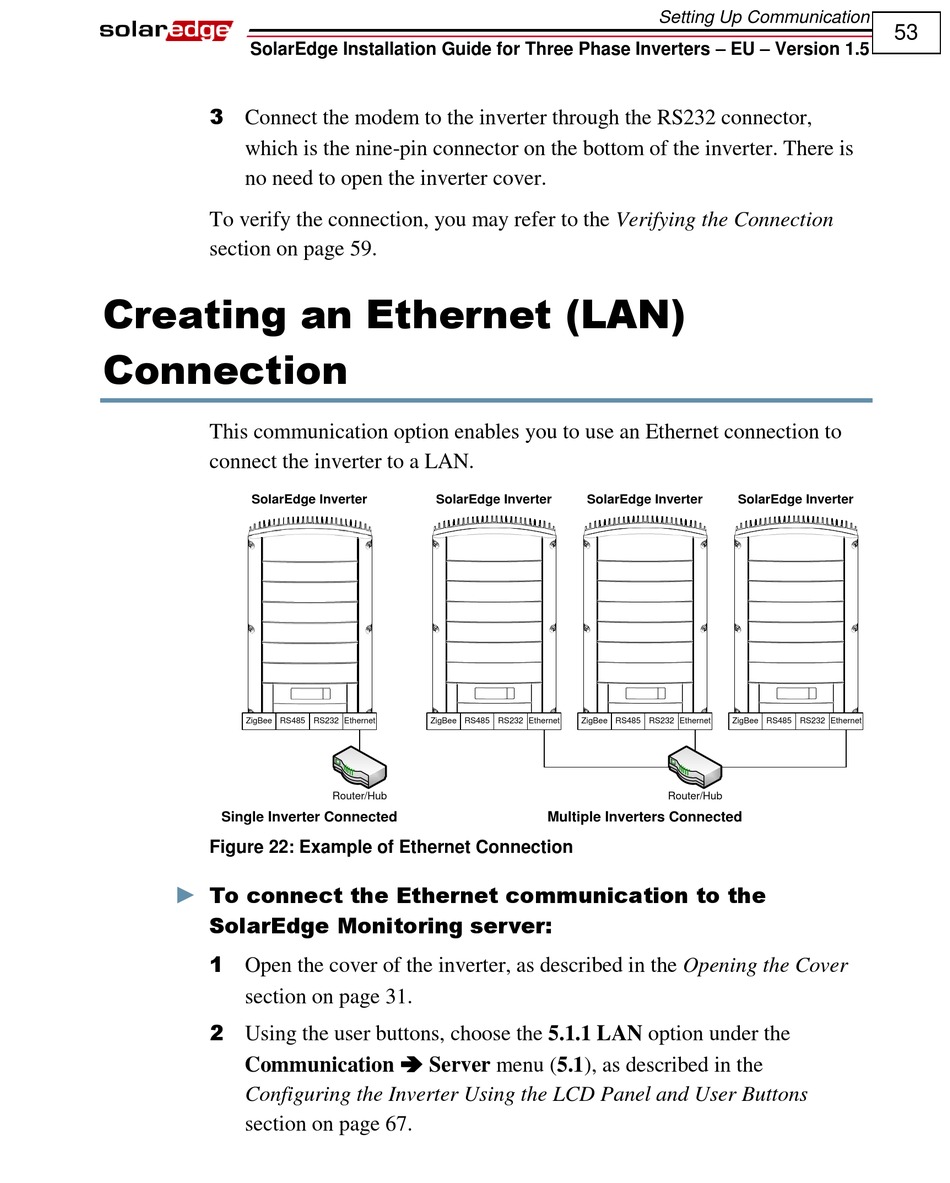

Figure 22: Example of Ethernet Connection
►
To connect the Ethernet communication to the
SolarEdge Monitoring server:
1 Open the cover of the inverter, as described in the Opening the Cover
section on page 31.
2 Using the user buttons, choose the 5.1.1 LAN option under the
Communication  Server menu (5.1), as described in the
Configuring the Inverter Using the LCD Panel and User Buttons
section on page 67.
SolarEdge Inverter
ZigBee RS485 RS232 Ethernet
Router/Hub
Setting Up Communication
SolarEdge Inverter
ZigBee RS485 RS232 Ethernet
Router/Hub
Multiple Inverters Connected
53
SolarEdge Inverter
ZigBee RS485 RS232 Ethernet
