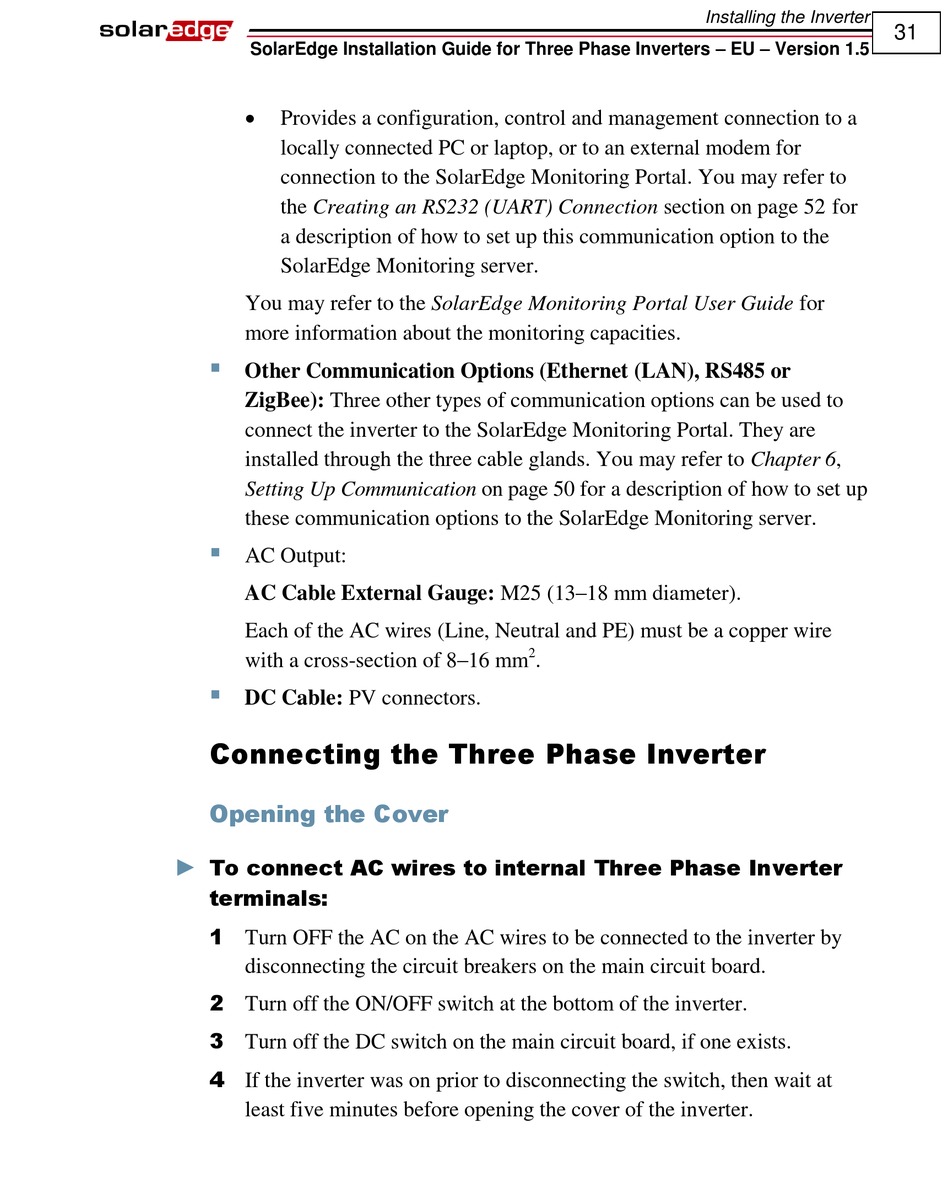

SolarEdge Power Harvesting System Installation Manual page 31

SolarEdge Installation Guide for Three Phase Inverters – EU – Version 1.5

Provides a configuration, control and management connection to a
locally connected PC or laptop, or to an external modem for
connection to the SolarEdge Monitoring Portal. You may refer to
the Creating an RS232 (UART) Connection section on page 52 for
a description of how to set up this communication option to the
SolarEdge Monitoring server.
You may refer to the SolarEdge Monitoring Portal User Guide for
more information about the monitoring capacities.

Other Communication Options (Ethernet (LAN), RS485 or
ZigBee): Three other types of communication options can be used to
connect the inverter to the SolarEdge Monitoring Portal. They are
installed through the three cable glands. You may refer to Chapter 6,
Setting Up Communication on page 50 for a description of how to set up
these communication options to the SolarEdge Monitoring server.

AC Output:
AC Cable External Gauge: M25 (13–18 mm diameter).
Each of the AC wires (Line, Neutral and PE) must be a copper wire
with a cross-section of 8–16 mm

DC Cable: PV connectors.
Connecting the Three Phase Inverter
Opening the Cover
►
To connect AC wires to internal Three Phase Inverter
terminals:
1 Turn OFF the AC on the AC wires to be connected to the inverter by
disconnecting the circuit breakers on the main circuit board.
2 Turn off the ON/OFF switch at the bottom of the inverter.
3 Turn off the DC switch on the main circuit board, if one exists.
4 If the inverter was on prior to disconnecting the switch, then wait at
least five minutes before opening the cover of the inverter.
Installing the Inverter
