To replace Fan 1:
1 Unscrew the single screw of the fan cover, shown above, using a
Philips screw driver.
2 Open the fan door.
3 Disconnect the fan door connector, as shown below:

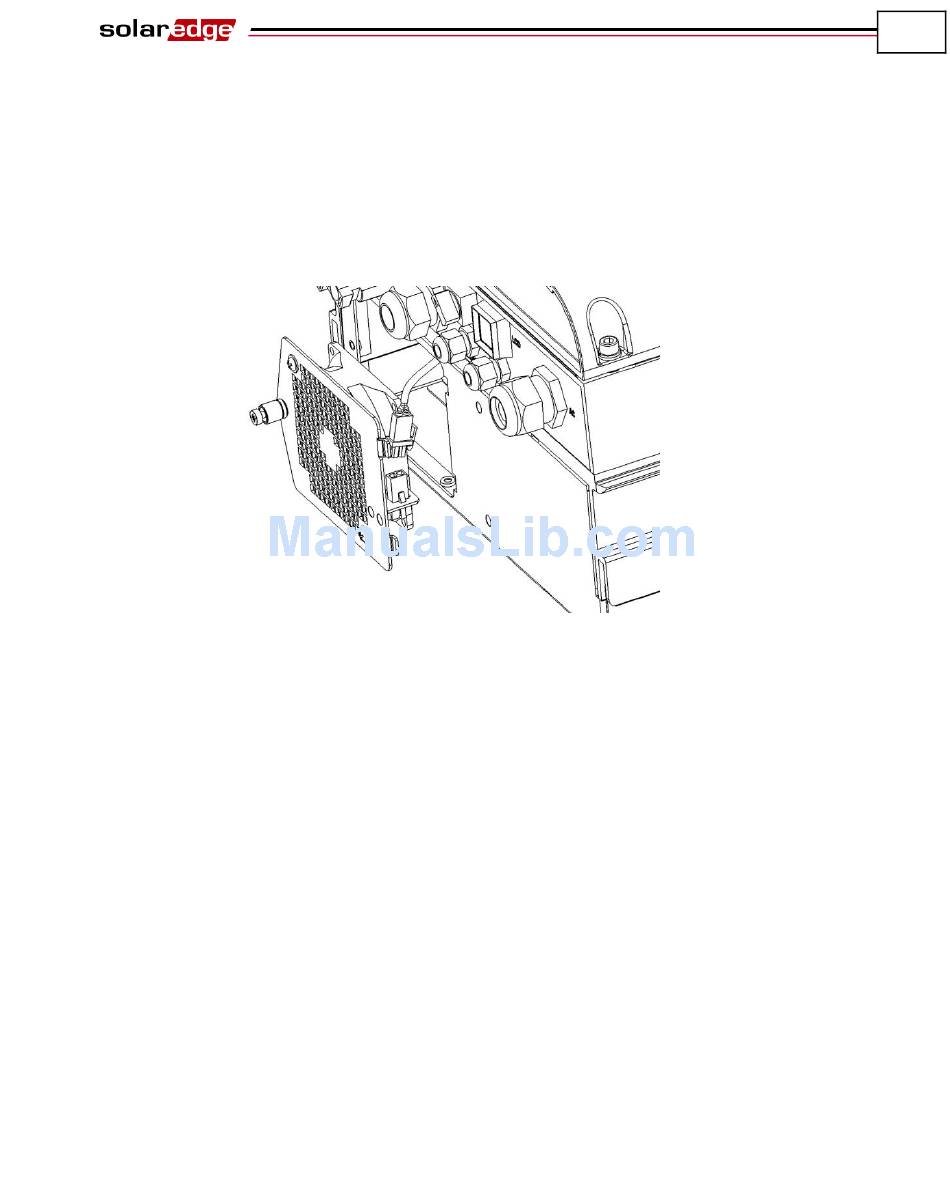

Figure 19: Fan Door Connector
4 Pull out the fan unit.
5 Replace the fan unit by pushing in a new fan.
6 Connect the fan door connector.
7 Check the Fan Health Status window to make sure that the fan was
installed properly, as described in the Fan Health Status Window
section on page 66.
