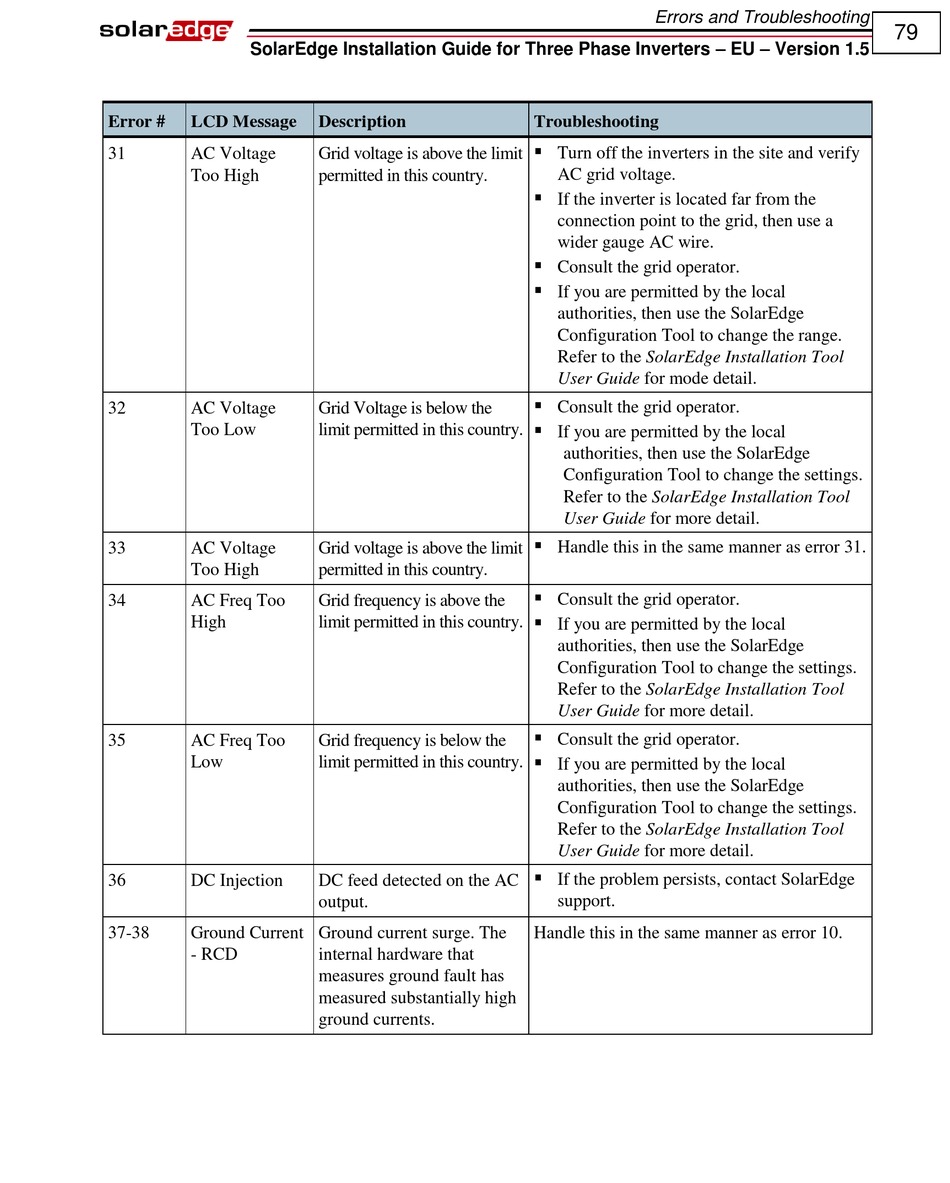

SolarEdge Power Harvesting System Installation Manual page 79

SolarEdge Installation Guide for Three Phase Inverters – EU – Version 1.5
Error # LCD Message
31 AC Voltage
Too High
32 AC Voltage
Too Low
33 AC Voltage
Too High
34 AC Freq Too
High
35 AC Freq Too
Low
36 DC Injection
37-38 Ground Current
- RCD
Description
Grid voltage is above the limit
permitted in this country.
Grid Voltage is below the
limit permitted in this country.
Grid voltage is above the limit
permitted in this country.
Grid frequency is above the
limit permitted in this country.
Grid frequency is below the
limit permitted in this country.
DC feed detected on the AC
output.
Ground current surge. The
internal hardware that
measures ground fault has
measured substantially high
ground currents.
Errors and Troubleshooting
Troubleshooting

Turn off the inverters in the site and verify
AC grid voltage.

If the inverter is located far from the
connection point to the grid, then use a
wider gauge AC wire.

Consult the grid operator.

If you are permitted by the local
authorities, then use the SolarEdge
Configuration Tool to change the range.
Refer to the SolarEdge Installation Tool
User Guide for mode detail.

Consult the grid operator.

If you are permitted by the local
authorities, then use the SolarEdge
Configuration Tool to change the settings.
Refer to the SolarEdge Installation Tool
User Guide for more detail.

Handle this in the same manner as error 31.

Consult the grid operator.

If you are permitted by the local
authorities, then use the SolarEdge
Configuration Tool to change the settings.
Refer to the SolarEdge Installation Tool
User Guide for more detail.

Consult the grid operator.

If you are permitted by the local
authorities, then use the SolarEdge
Configuration Tool to change the settings.
Refer to the SolarEdge Installation Tool
User Guide for more detail.

If the problem persists, contact SolarEdge
support.
Handle this in the same manner as error 10.
