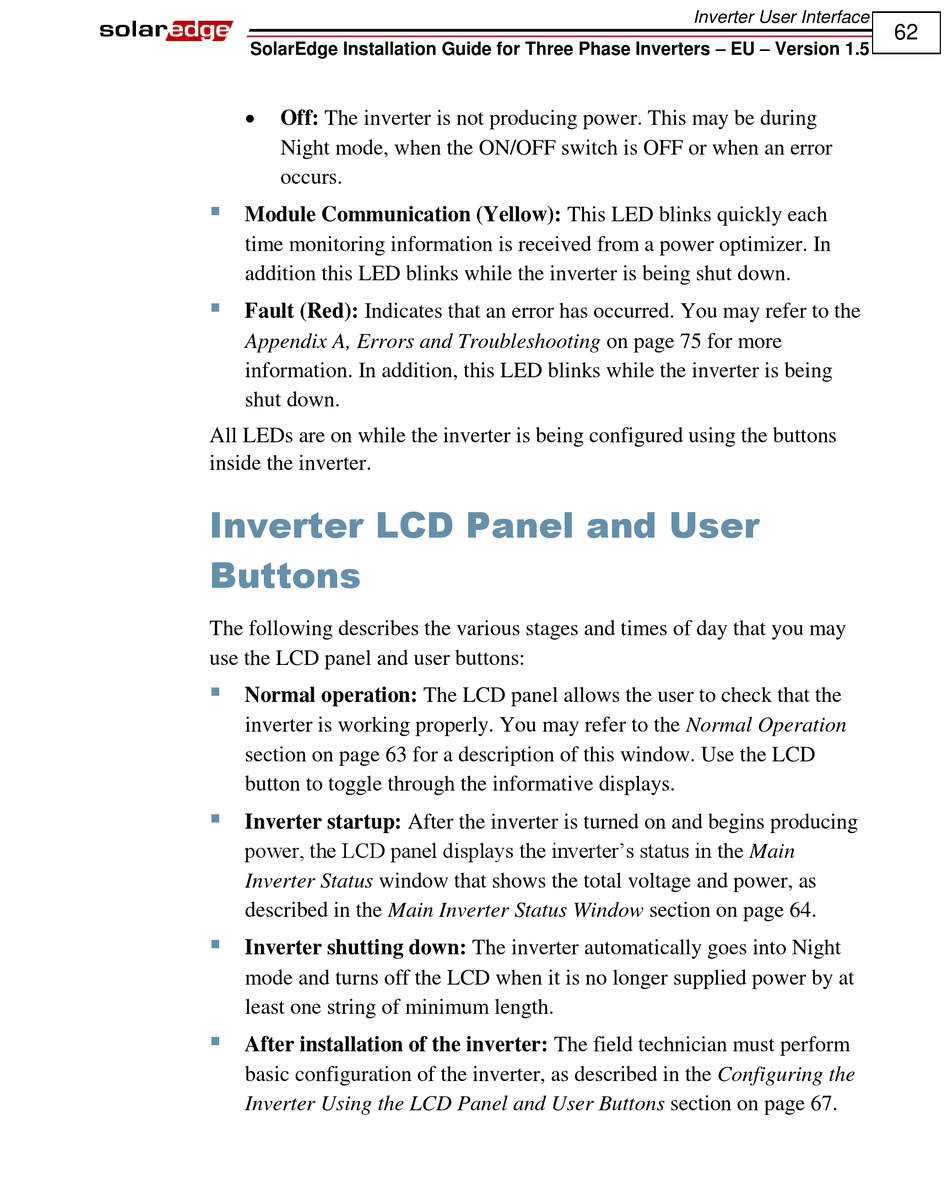

SolarEdge Installation Guide for Three Phase Inverters – EU – Version 1.5

Off: The inverter is not producing power. This may be during
Night mode, when the ON/OFF switch is OFF or when an error
occurs.

Module Communication (Yellow): This LED blinks quickly each
time monitoring information is received from a power optimizer. In
addition this LED blinks while the inverter is being shut down.

Fault (Red): Indicates that an error has occurred. You may refer to the
Appendix A, Errors and Troubleshooting on page 75 for more
information. In addition, this LED blinks while the inverter is being
shut down.
All LEDs are on while the inverter is being configured using the buttons
inside the inverter.
Inverter LCD Panel and User
Buttons
The following describes the various stages and times of day that you may
use the LCD panel and user buttons:

Normal operation: The LCD panel allows the user to check that the
inverter is working properly. You may refer to the Normal Operation
section on page 63 for a description of this window. Use the LCD
button to toggle through the informative displays.

Inverter startup: After the inverter is turned on and begins producing
power, the LCD panel displays the inverter's status in the Main
Inverter Status window that shows the total voltage and power, as
described in the Main Inverter Status Window section on page 64.

Inverter shutting down: The inverter automatically goes into Night
mode and turns off the LCD when it is no longer supplied power by at
least one string of minimum length.

After installation of the inverter: The field technician must perform
basic configuration of the inverter, as described in the Configuring the
Inverter Using the LCD Panel and User Buttons section on page 67.
Inverter User Interface
62
