3 The following configuration procedures are performed with the inverter
cover open. Open the cover, as described in the Opening the Cover
section on page 31.
Four buttons for controlling the LCD panel menus are then accessible,
as shown below:

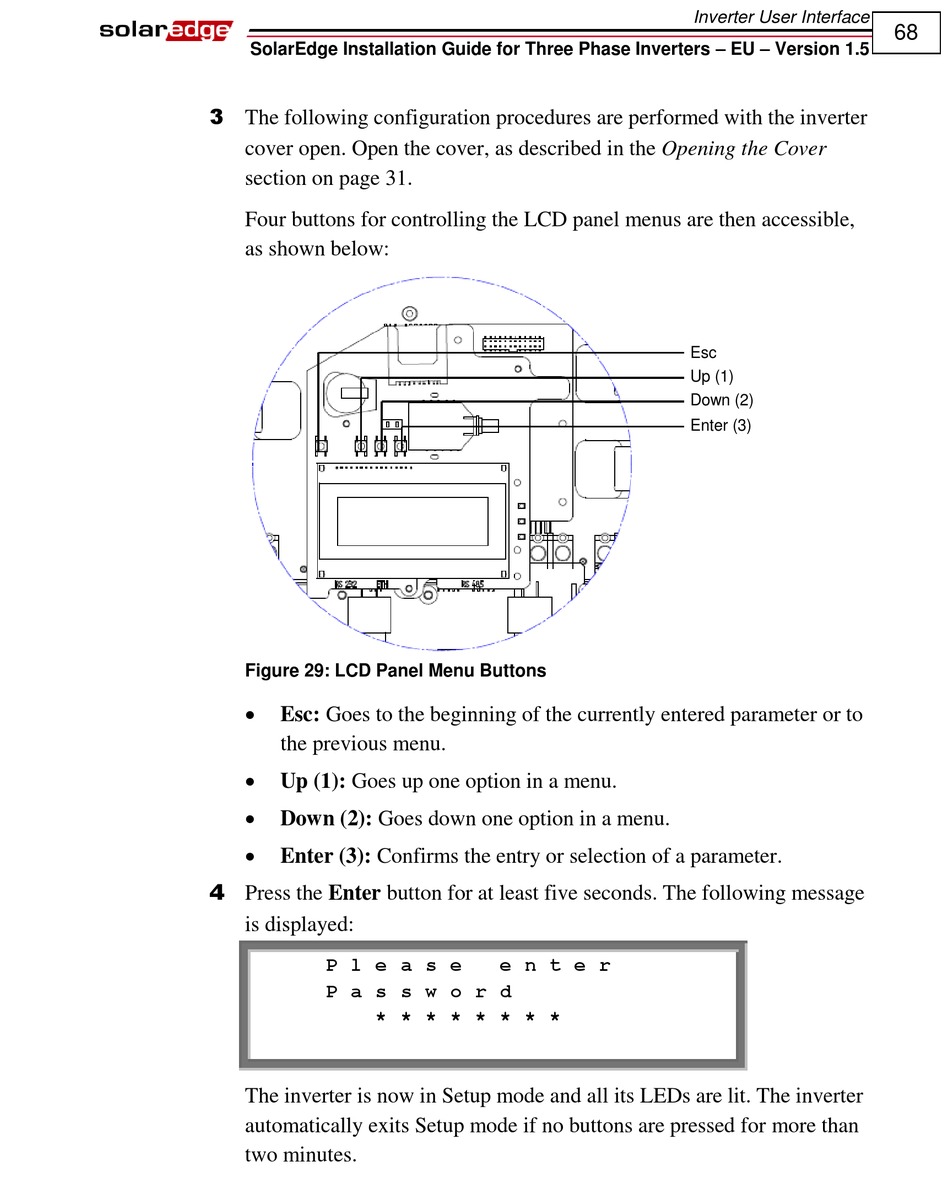

Figure 29: LCD Panel Menu Buttons

Esc: Goes to the beginning of the currently entered parameter or to
the previous menu.

Up (1): Goes up one option in a menu.

Down (2): Goes down one option in a menu.

Enter (3): Confirms the entry or selection of a parameter.
4 Press the Enter button for at least five seconds. The following message
is displayed:
P l e a s e
P a s s w o r d
* * * * * * * *
The inverter is now in Setup mode and all its LEDs are lit. The inverter
automatically exits Setup mode if no buttons are pressed for more than
two minutes.
e n t e r
Inverter User Interface
Esc
Up (1)
Down (2)
Enter (3)
