SolarEdge Power Harvesting System Installation Manual page 51

SolarEdge Installation Guide for Three Phase Inverters – EU – Version 1.5

RS485: page 56, Enables the connection of multiple inverters through
the same bus, such that connecting only one inverter to the Internet is
sufficient to provide communication services to all the inverters on the
bus.
NOTE
:
In addition, there are three types of wireless communication options that are
available and purchased separately. They are: ZigBee, WiFi and GSM. Refer to
relevant documentation for details about their installation.
Ethernet and RS485 are connected to a connector inside the inverter. The
location of the connectors is indicated in the following figure:

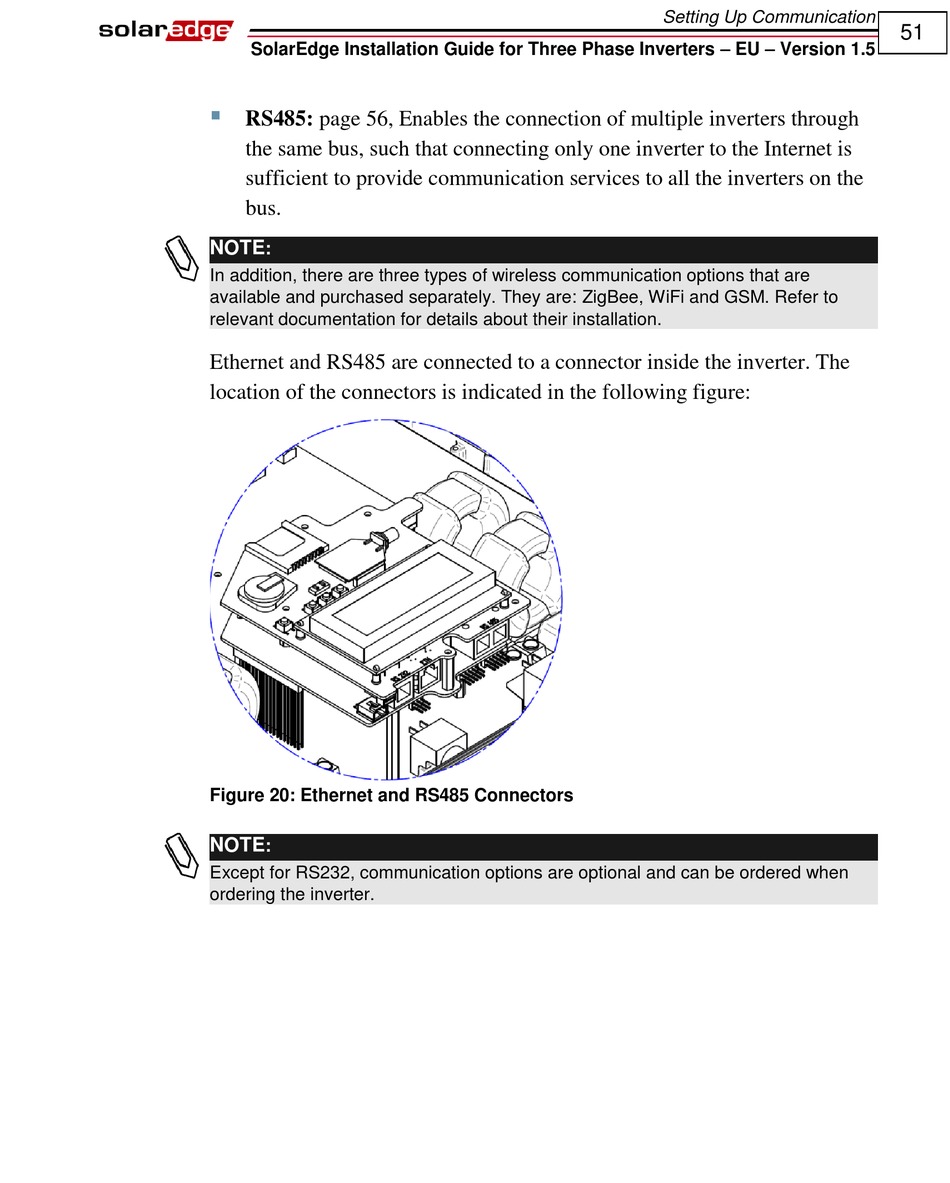

Figure 20: Ethernet and RS485 Connectors
NOTE
:
Except for RS232, communication options are optional and can be ordered when
ordering the inverter.
Setting Up Communication
51
