The inverter serial number is also indicated on the enclosed warranty card.
Please provide the serial number when contacting the SolarEdge support
line. The serial number is also required when requesting to open a new site
in the SolarEdge Monitoring Portal.

Selecting the Mounting Location

This process involves attaching the inverter mounting bracket to a wall or
pole and then mounting the Three Phase Inverter onto it.

Chassis Clearance

The heat dissipation solution requires the following clearance areas
between the Three Phase Inverter chassis and all types of obstructions, such
as wires and walls:

8" (20 cm) to the top and bottom of the chassis

4" (10 cm) to the right and left of the chassis
NOTE:
If more than one Three Phase Inverters are installed side by side, the distances
between them must exceed 4" (10 cm).
4" (10 cm)

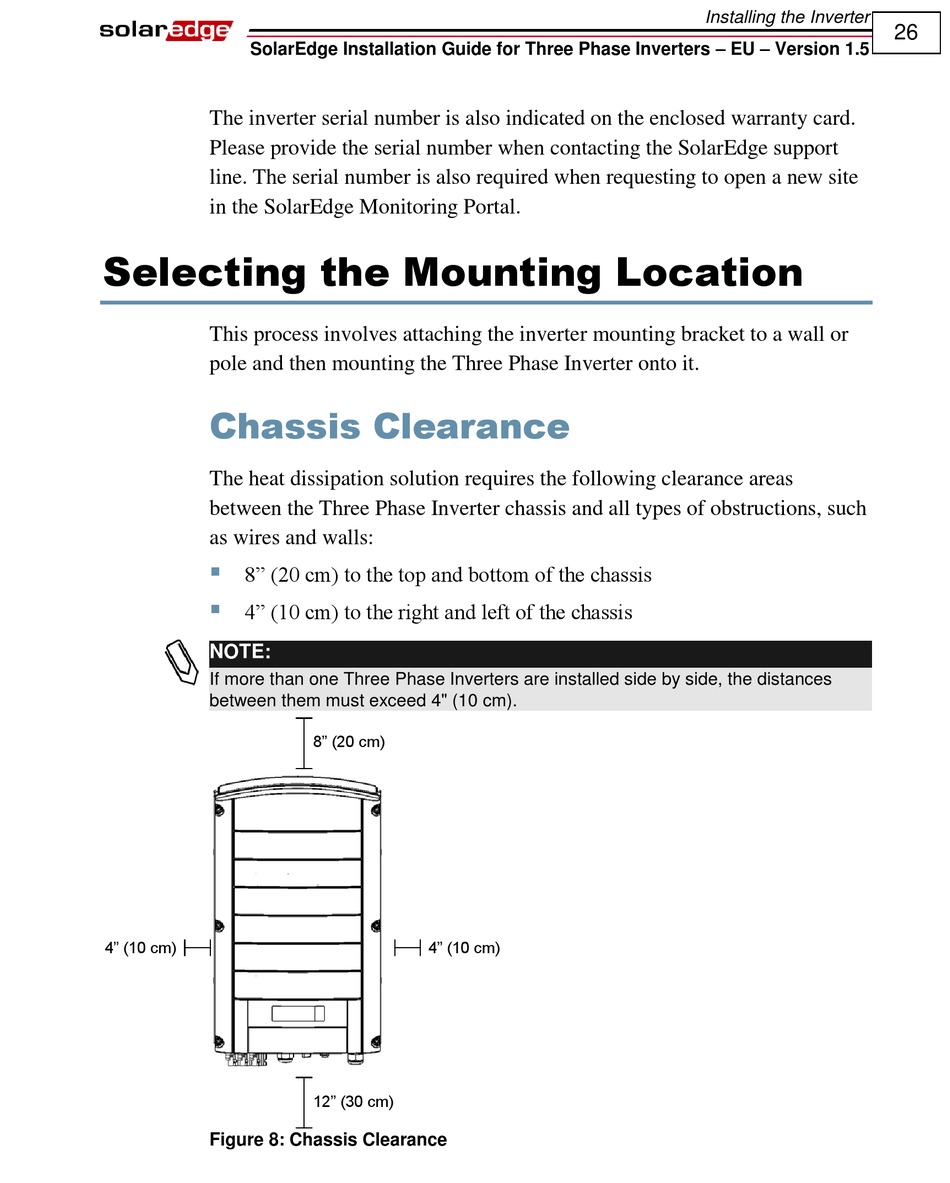

Figure 8: Chassis Clearance
8" (20 cm)
4" (10 cm)
12" (30 cm)
