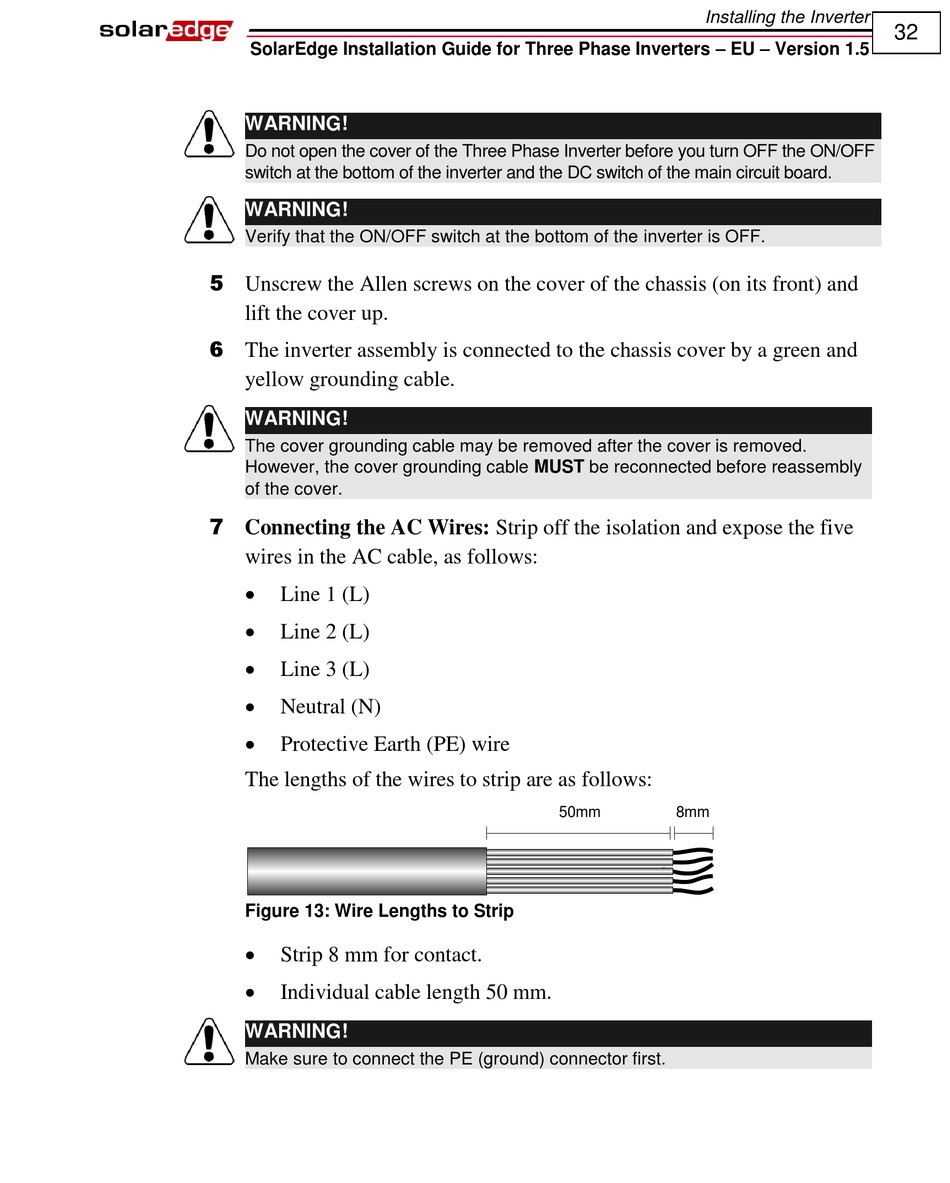

SolarEdge Power Harvesting System Installation Manual page 32

SolarEdge Installation Guide for Three Phase Inverters – EU – Version 1.5
WARNING!
Do not open the cover of the Three Phase Inverter before you turn OFF the ON/OFF
switch at the bottom of the inverter and the DC switch of the main circuit board.
WARNING!
Verify that the ON/OFF switch at the bottom of the inverter is OFF.
5 Unscrew the Allen screws on the cover of the chassis (on its front) and
lift the cover up.
6 The inverter assembly is connected to the chassis cover by a green and
yellow grounding cable.
WARNING!
The cover grounding cable may be removed after the cover is removed.
However, the cover grounding cable MUST be reconnected before reassembly
of the cover.
7 Connecting the AC Wires: Strip off the isolation and expose the five
wires in the AC cable, as follows:

Line 1 (L)

Line 2 (L)

Line 3 (L)

Neutral (N)

Protective Earth (PE) wire
The lengths of the wires to strip are as follows:
Figure 13: Wire Lengths to Strip

Strip 8 mm for contact.

Individual cable length 50 mm.
WARNING!
Make sure to connect the PE (ground) connector first.
Installing the Inverter
50mm 8mm
