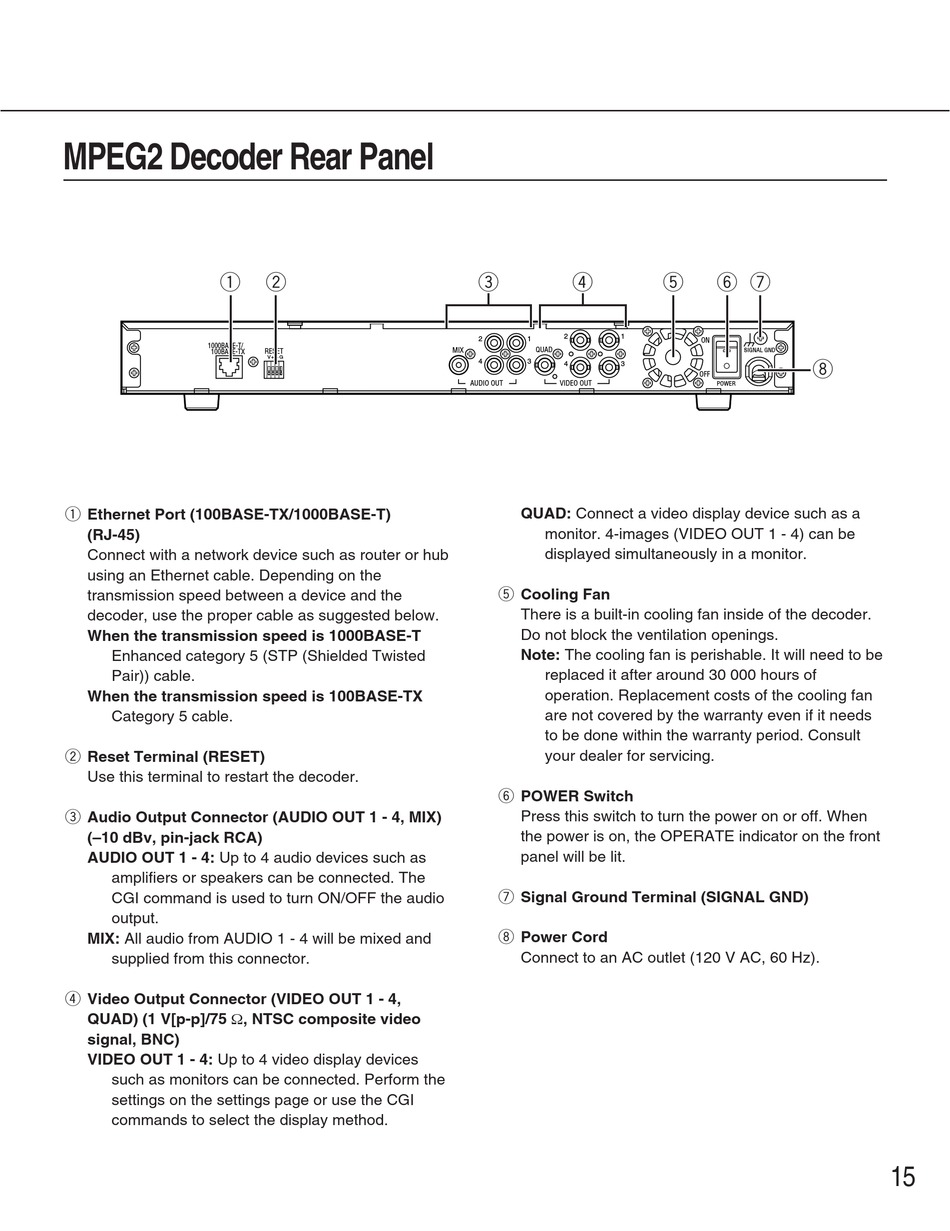

MPEG2 Decoder Rear Panel
q
1000BASE-T/
100BASE-TX
q Ethernet Port (100BASE-TX/1000BASE-T)
(RJ-45)
Connect with a network device such as router or hub
using an Ethernet cable. Depending on the
transmission speed between a device and the
decoder, use the proper cable as suggested below.
When the transmission speed is 1000BASE-T
Enhanced category 5 (STP (Shielded Twisted
Pair)) cable.
When the transmission speed is 100BASE-TX
Category 5 cable.
w Reset Terminal (RESET)
Use this terminal to restart the decoder.
e Audio Output Connector (AUDIO OUT 1 - 4, MIX)
(–10 dBv, pin-jack RCA)
AUDIO OUT 1 - 4: Up to 4 audio devices such as
amplifiers or speakers can be connected. The
CGI command is used to turn ON/OFF the audio
output.
MIX: All audio from AUDIO 1 - 4 will be mixed and
supplied from this connector.
r Video Output Connector (VIDEO OUT 1 - 4,
QUAD) (1 V[p-p]/75 Ω, NTSC composite video
signal, BNC)
VIDEO OUT 1 - 4: Up to 4 video display devices
such as monitors can be connected. Perform the
settings on the settings page or use the CGI
commands to select the display method.
w
RESET
V+ – G
e
r
2
1
2
1
MIX
QUAD
4
3
4
3
AUDIO OUT
VIDEO OUT
QUAD: Connect a video display device such as a
monitor. 4-images (VIDEO OUT 1 - 4) can be
displayed simultaneously in a monitor.
t Cooling Fan
There is a built-in cooling fan inside of the decoder.
Do not block the ventilation openings.
Note: The cooling fan is perishable. It will need to be
replaced it after around 30 000 hours of
operation. Replacement costs of the cooling fan
are not covered by the warranty even if it needs
to be done within the warranty period. Consult
your dealer for servicing.
y POWER Switch
Press this switch to turn the power on or off. When
the power is on, the OPERATE indicator on the front
panel will be lit.
u Signal Ground Terminal (SIGNAL GND)
i Power Cord
Connect to an AC outlet (120 V AC, 60 Hz).
t
y u
ON
SIGNAL GND
i
OFF
POWER
15
