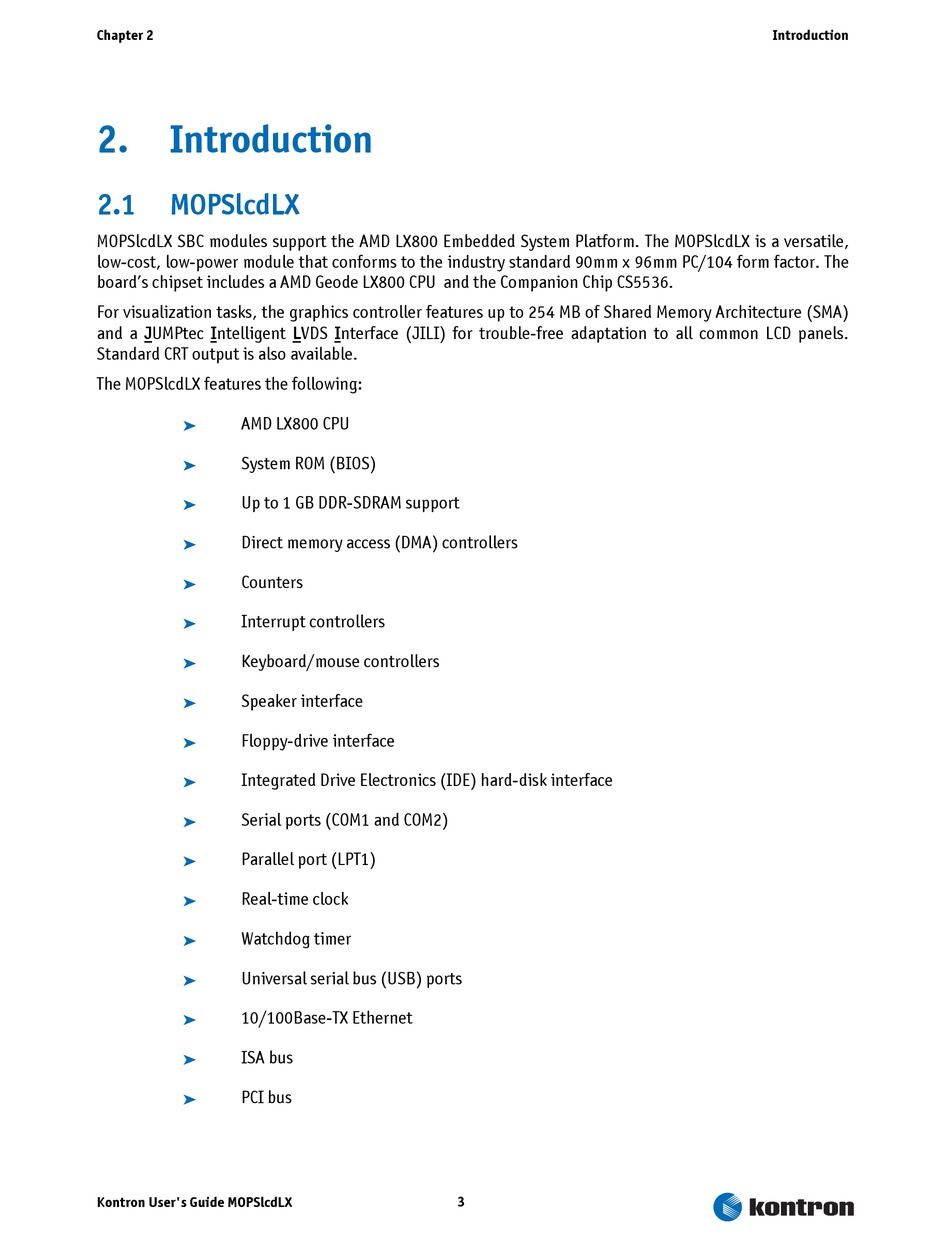

Chapter 2
2.

Introduction

2.1

MOPSlcdLX

MOPSlcdLX SBC modules support the AMD LX800 Embedded System Platform. The MOPSlcdLX is a versatile,
low-cost, low-power module that conforms to the industry standard 90mm x 96mm PC/104 form factor. The
board's chipset includes a AMD Geode LX800 CPU and the Companion Chip CS5536.
For visualization tasks, the graphics controller features up to 254 MB of Shared Memory Architecture (SMA)
and a JUMPtec Intelligent LVDS Interface (JILI) for trouble-free adaptation to all common LCD panels.
Standard CRT output is also available.
The MOPSlcdLX features the following:
AMD LX800 CPU
®
System ROM (BIOS)
®
Up to 1 GB DDR-SDRAM support
®
Direct memory access (DMA) controllers
®
Counters
®
Interrupt controllers
®
Keyboard/mouse controllers
®
Speaker interface
®
Floppy-drive interface
®
Integrated Drive Electronics (IDE) hard-disk interface
®
Serial ports (COM1 and COM2)
®
Parallel port (LPT1)
®
Real-time clock
®
Watchdog timer
®
Universal serial bus (USB) ports
®
10/100Base-TX Ethernet
®
ISA bus
®
PCI bus
®
