3.2 Installing DIMM

To install DIMM:
1. Make sure the two handles of the DIMM sockets are in the " open" position, i.e.
the handles stay outward.

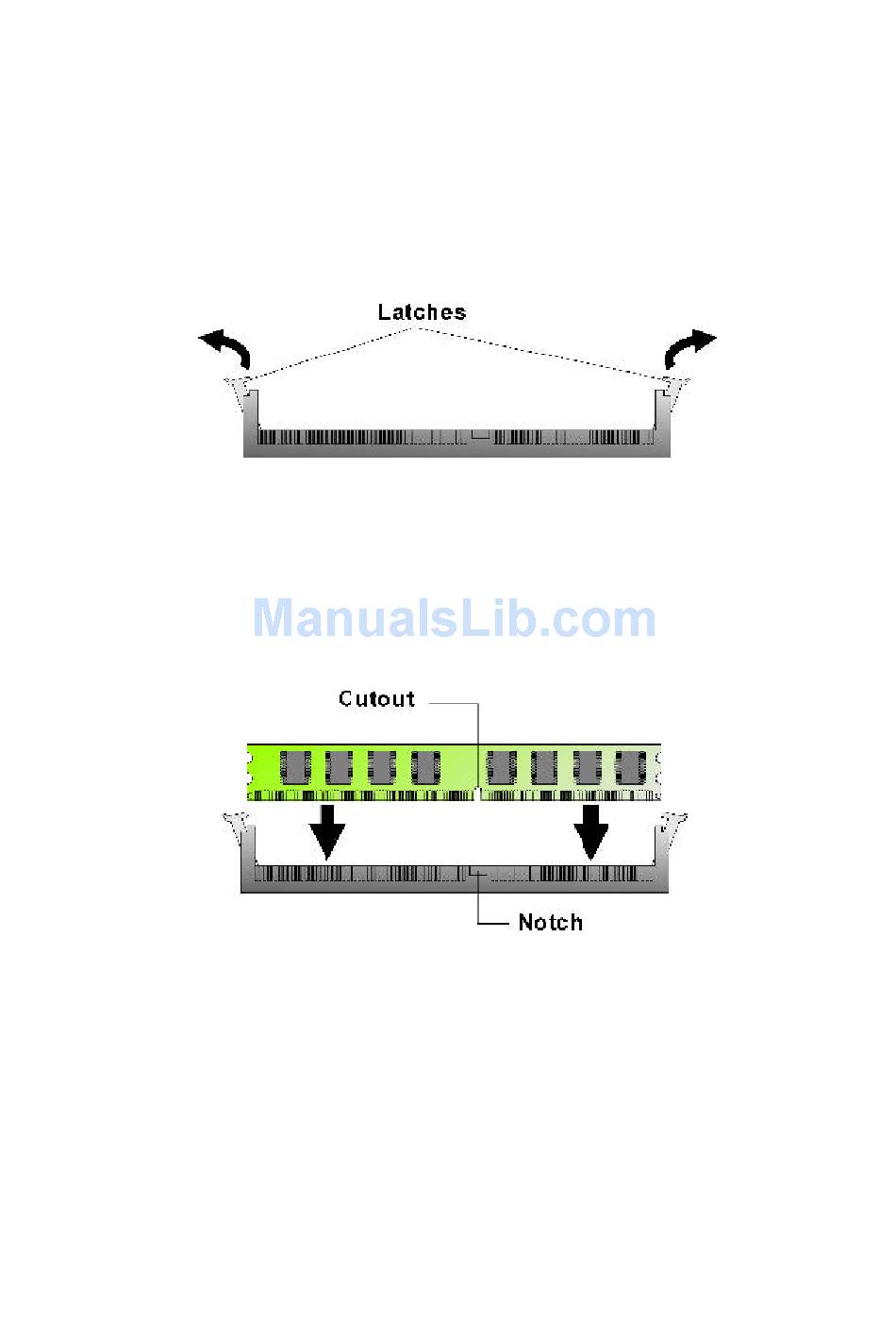

Figure 3-1 : How to Install DIMM (1)
2. Slowly slide the DIMM modules along the plastic guides in the both ends of the
socket.
Figure 3-2 : How to Install DIMM (2)
24
