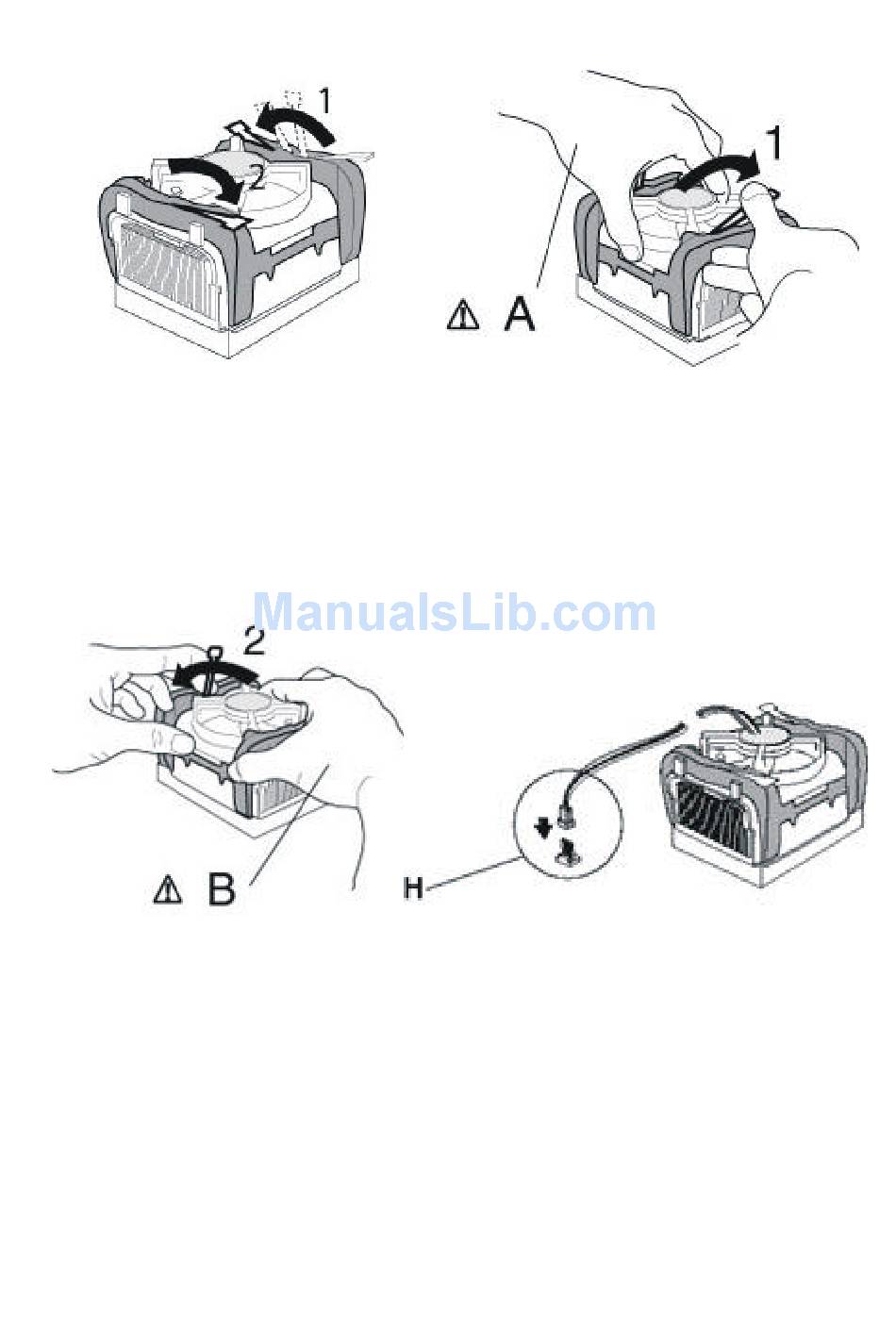

Figure 3-9a: Installing the Fan
Heatsink (4)
Close Clip Levers,
One at a Time
Figure 3-9c: Installing the Fan
H eatsink (6)
Close Clip Lever (2),
While Holding the Topside of
Fan Heatsink (B)
Figure 3-9b: Installing the Fan
Heatsink (5)
Close Clip Lever (1),
While Holding the Topside
of Fan Heatsink (A)
Figure 3-10: Installing the Fan
Heatsink (7)
Connect Fan Cable to Motherboard
