3.2 Installing DIMM
To install DIMM
1. Make sure the two handles of the DIMM sockets are in the "open" position, i.e. the handles stay outward.
2. Slowly slide the DIMM modules along the plastic guides in the both ends of the socket.
EBC575 User's Manual

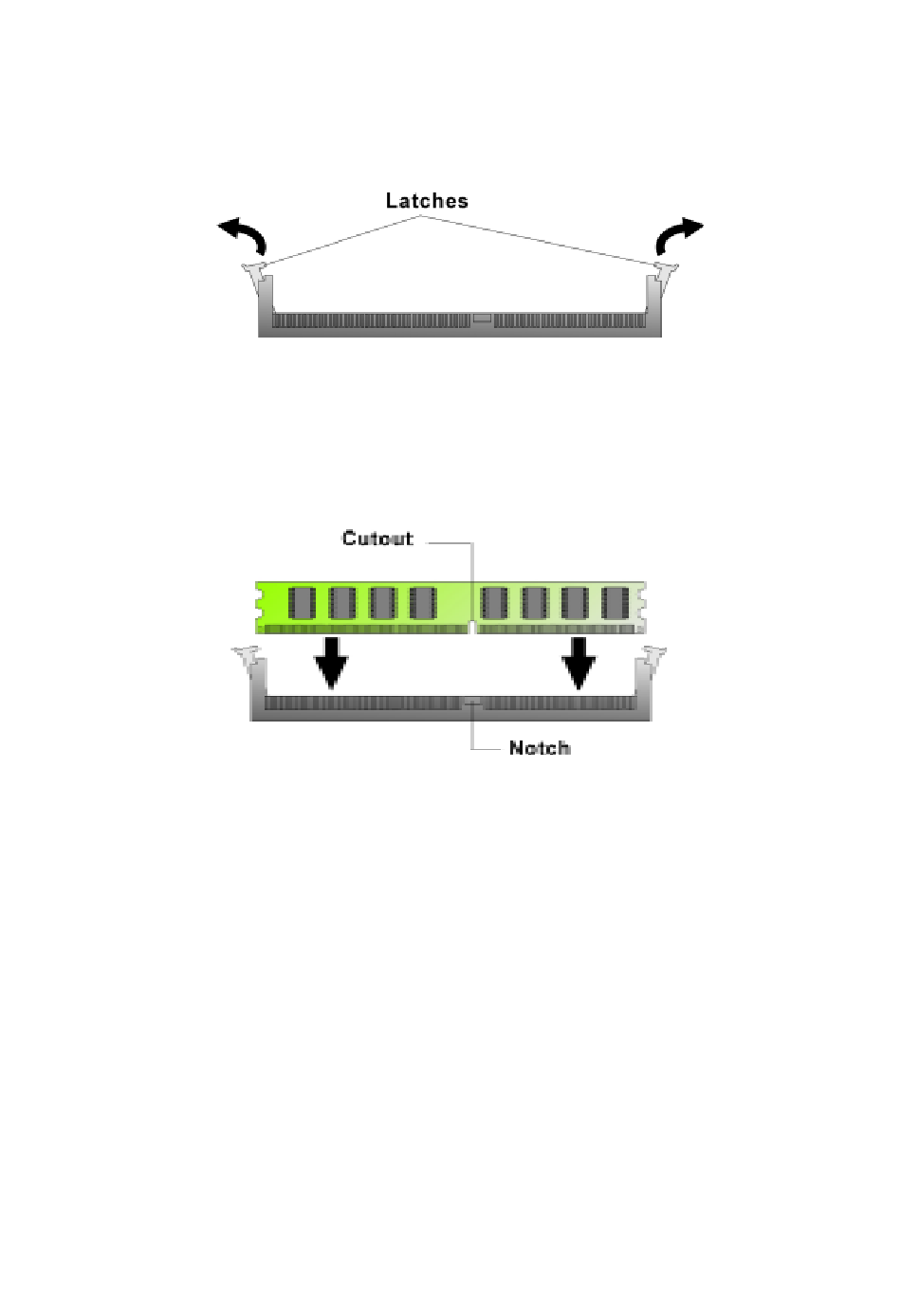

Figure 3-1: How to Install DIMM (1)
Figure 3-2: How to Install DIMM (2)
22
Chapter 3
