3. Then press the DIMM module down right into the socket, until a click is heard.
That means the two handles automatically locked the memory modules into the
right position of the DIMM socket.

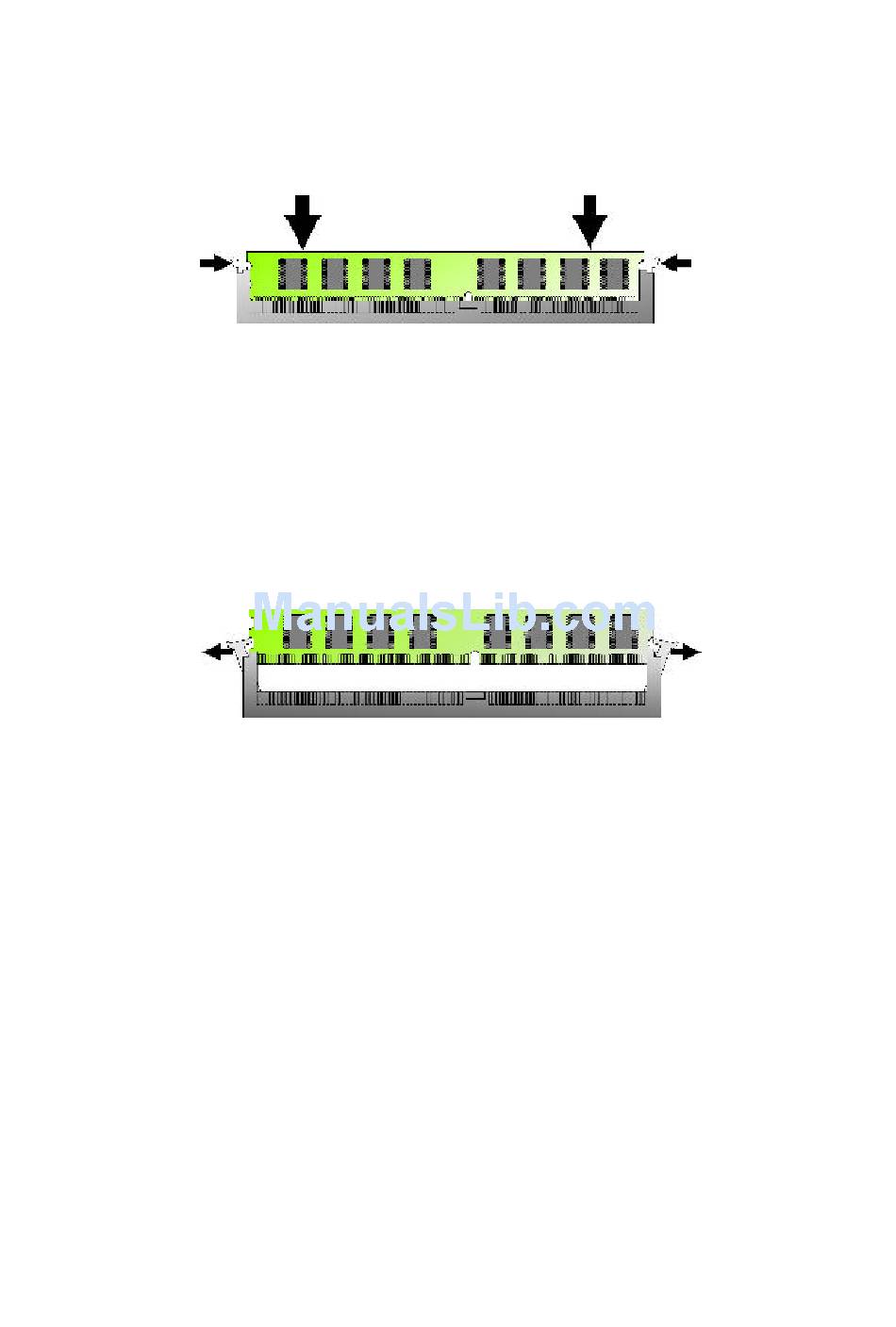

Figure 3-3 : How to Install DIMM (3)
4. To take away the memory module, just push the both handles outward, the
memory module will be ejected by the mechanism in the socket.
Figure 3-4 : H ow to Install DIMM (4)
